On-Board Stainless Steel Feed Systems

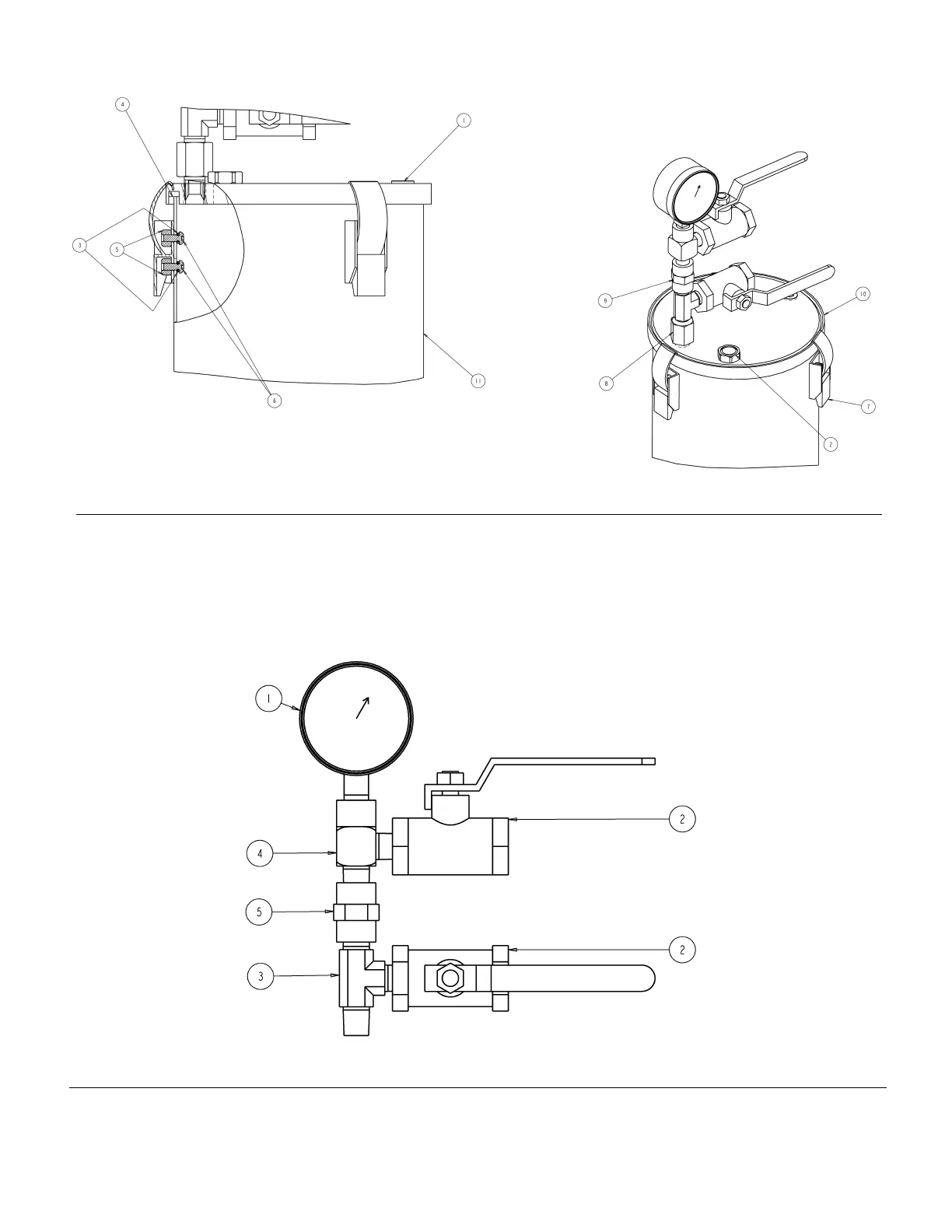

Figure 48: LID ASSEMBLY, 7.5L CLAMP DOWN WITH VACUUM DEGAS (P/N LC0020)
1 94/0370/98 PLUG,SKT HD,1/4NPT,SS 7 96/0820/98 CLAMP,OVER THE CENTER,SS
2 94/0752-D/97 VALVE,RELIEF,9/16-32,5PSI 8 121090 FITTING,EXPANDER. 1/4"NPT M-F
3 95/0518/00 O-RING,VIT,JJF,> 9 255342 MANIFOLD ASSY, VACUUM TREE
4 95/0524/01 GASKET,LID,TFM,NIT 10 15M320 LID,7L,2 1/4" NPT AND 1 9/16-32 PORTS
5 96/0176-1/98 NUT,LOCK,8-32,NYLOCK,SS@@@ 11 15M392 TANK MODIFICATION
6 96/0282/98 SCREW,BHCS,8-32X0.38,SS@@@
Figure 49: MANIFOLD ASSY, VACUUM TREE (P/N 255342)
1 82/0220-1/11 GAUGE,PRESS/VAC,30"HG-30PSI,2-1/2",LQUD 4 121088 TEE,1/4" NPT,M-M-F,MS
2 94/0900-R2/99 VALVE,BALL,2W,1/4NPT,F,2000PSI,MS 5 121089 COUPLER,1/4" NPT F-F
3 121087 TEE,1/4" NPT,M-M-M,MS
312394B 38 of 71
