On-Board Stainless Steel Feed Systems

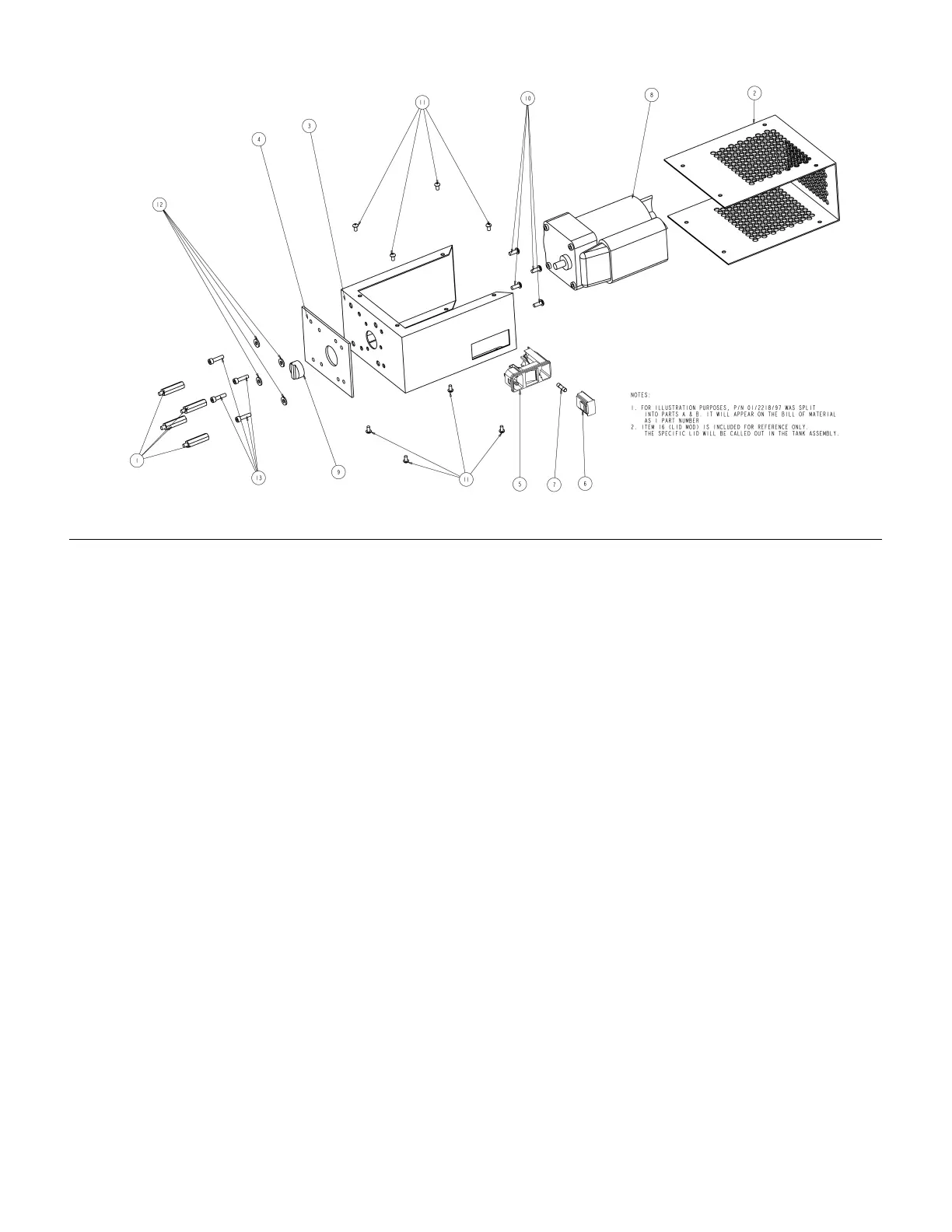

Figure 54: AGITATOR ASSEMBLIES (P/Ns 255337 & 255338)
P/N 255337 AGITATOR MOTOR ASSEMBLY 120V
1
01/1198-2/97 STAND
OFF,MOTOR,AGIT,HD,ELEC,ALUM
8 81/2218-1/11 GEARMOTOR,50RPM,60IN-
LB,120V,W/FAN,1.2A>
2
01/2218/97 ENCLOSURE,AGITATOR,ELEC,PRMV
/F,HD>NOTES
9 84/2215-A/11 COUPLING,ALIGNMENT,1"
OD,HUB,3/8ID
3
****** BOTTOM ENCLOSURE (REFERENCE
ONLY)
10 96/0212/99 SCREW,BHCS,10-24X0.50,MS,E@@@
4
01/2219/97 PLATE,ADAPTER,ELEC
AGIT,HD,PRM
11 96/0271/99 SCREW,BHCS,8-32X0.31,MS,E@@@
5
81/1040/11 CONNECTOR,AC,2P,250V,10A,DPST,
W/FUSE HLD
12 120907 WASHER,FLAT,#10,SST
6
81/1040-1/11 FUSEDRAWER,AC
CONN,2P,250V,10A,W/BAR,5MM
13 120961 SCREW,SHCS,10-32X.75"
7
81/1053-1.6/11 FUSE,5X20MM,1.6A,TIME DELAY
P/N 255338 AGITATOR MOTOR ASSEMBLY 240V
1
01/1198-2/97 STAND
OFF,MOTOR,AGIT,HD,ELEC,ALUM
8 81/2218-2/11 GEARMOTOR,50RPM,60IN-
LB,240V,W/FAN,1.2A>
2
01/2218/97 ENCLOSURE,AGITATOR,ELEC,PRMV
/F,HD>NOTES
9 84/2215-A/11 COUPLING,ALIGNMENT,1"
OD,HUB,3/8ID
3
****** BOTTOM ENCLOSURE (REFERENCE
ONLY)
10 96/0212/99 SCREW,BHCS,10-24X0.50,MS,E@@@
4
01/2219/97 PLATE,ADAPTER,ELEC AGIT,HD,PRM 11 96/0271/99 SCREW,BHCS,8-32X0.31,MS,E@@@
5
81/1040/11 CONNECTOR,AC,2P,250V,10A,DPST,
W/FUSE HLD
12 120907 WASHER,FLAT,#10,SST
6
81/1040-1/11 FUSEDRAWER,AC
CONN,2P,250V,10A,W/BAR,5MM
13 120961 SCREW,SHCS,10-32X.75"
7
81/1053-1.6/11 FUSE,5X20MM,1.6A,TIME DELAY
312394B 43 of 71
