On-Board Stainless Steel Feed Systems

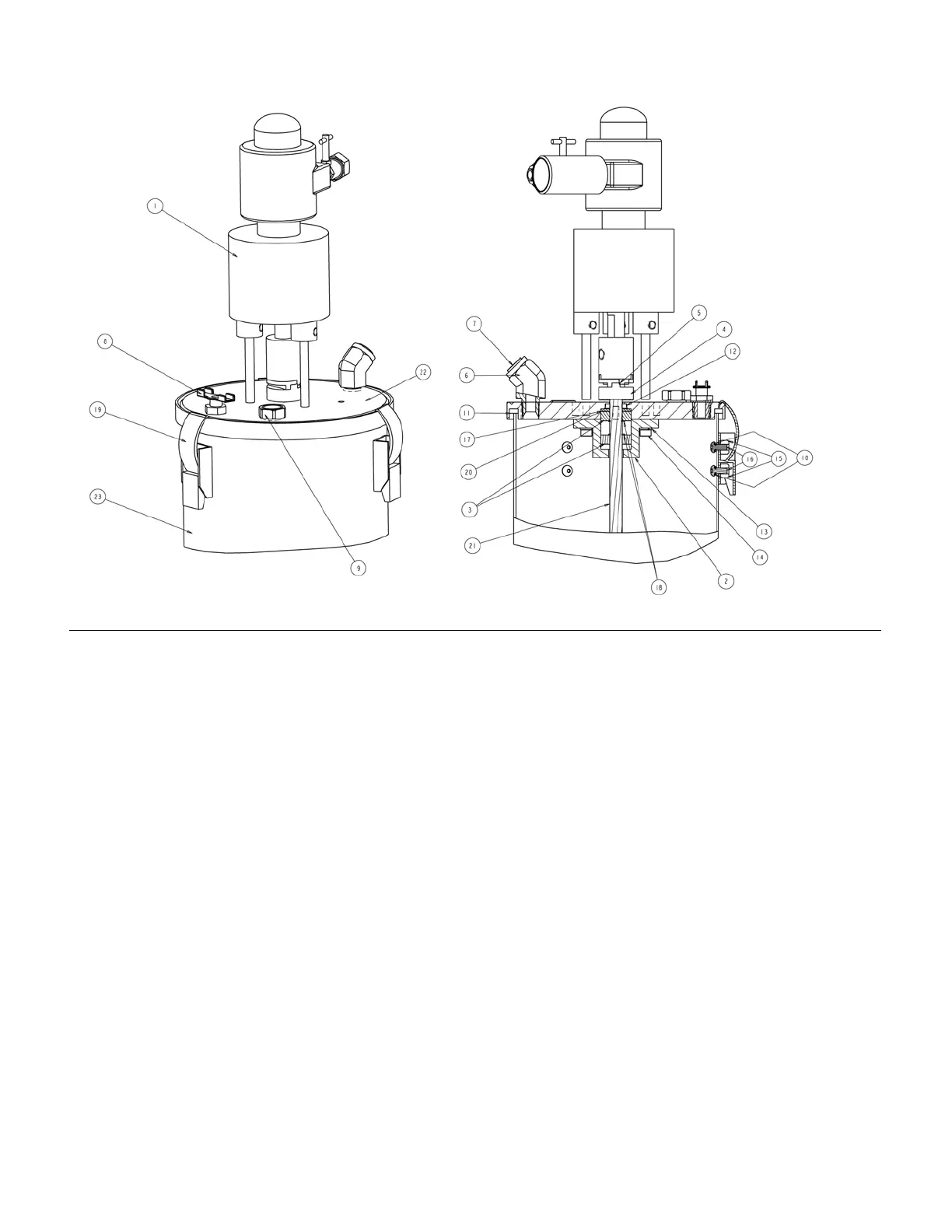

Figure 55: P/N LC0130 LID ASSEMBLY,7.5L,PNEUMATIC AGITATOR
1 02/1116/50 AGIT ASSY,PNEU,TFM,0.32HP,15:1
RATIO,REVE
13 96/0005/98 WASHER,LOCK,SPLIT,#10,SS>
2 01/2212/70 HOUSING,BEARING,ELECTRIC AGITATOR 14 96/0125/98 SCREW,SHC,10-24X0.50,SS@@@
3 84/0120/98 BEARING,BALL,0.375ID,DS 15 96/0176-1/98 NUT,LOCK,8-32,NYLOCK,SS@@@
4 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID 16 96/0282/98 SCREW,BHCS,8-32X0.38,SS@@@
5 84/2215-B/11 COUPLING,ALIGNMENT,1"OD,DISK,NYLON 17 96/0733/87 WASHER,3/8X7/8X0.062,PTFE
6 94/0299/98 ELBOW,STREET,1/4NPT,45DEG,3000PSI,316SS 18 96/0817/99 RING,RET,EXT,0.375,MS>@@@
7 94/0370/98 PLUG,SKT HD,1/4NPT,SS 19 96/0820/98 CLAMP,OVER THE CENTER,SS
8 94/0736/96 VALVE,DRAIN COCK,1/4NPT,M,BRS 20 97/2215/98 SPRING,WAVE,0.86X0.65X0.010,SS
9 94/0752-D/97 VALVE,RELIEF,9/16-32,5PSI 21 255339 AGITATOR BLADE ASSEMBLY
10 95/0518/00 O-RING,VIT,JJF,> 22 15M321 LID,7L,2 1/4"NPT AND 1 9/16-32
PORTS,AG
11 95/0524/01 GASKET,LID,TFM,NIT 23 15M392 TANK MODIFICATION
12 95/0849/11 POSIPAK,3/8IDX5/8OD,STD,P/VIT,>
312394B 44 of 71
