On-Board Stainless Steel Feed Systems

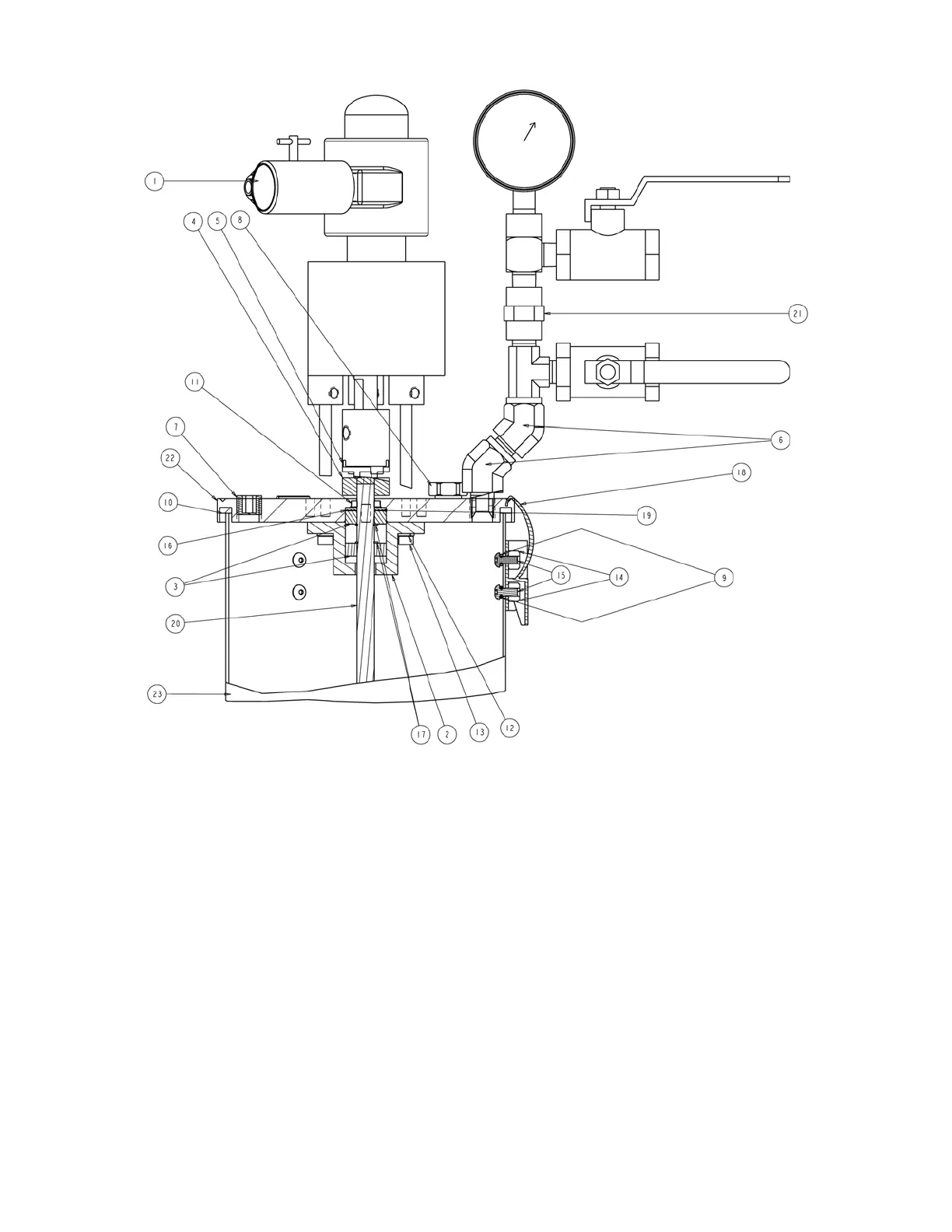

Figure 56: P/N LC0131 LID ASSEMBLY, 7.5L,VACUUM DEGAS & PNEUMATIC AGITATOR
1 02/1116/50 AGIT ASSY,PNEU,TFM,0.32HP,15:1 RATIO 13 96/0125/98 SCREW,SHC,10-24X0.50,SS@@@
2 01/2212/70 HOUSING,BEARING,ELECTRIC AGITATOR 14 96/0176-1/98 NUT,LOCK,8-32,NYLOCK,SS@@@
3 84/0120/98 BEARING,BALL,0.375ID,DS 15 96/0282/98 SCREW,BHCS,8-32X0.38,SS@@@
4 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID 16 96/0733/87 WASHER,3/8X7/8X0.062,PTFE
5 84/2215-B/11 COUPLING,ALIGNMENT,1"OD,DISK,NYLON 17 96/0817/99 RING,RET,EXT,0.375,MS>@@@
6 94/0299/98 ELBOW,STREET,1/4NPT,45DEG,3000PSI,316SS 18 96/0820/98 CLAMP,OVER THE CENTER,SS
7 94/0370/98 PLUG,SKT HD,1/4NPT,SS 19 97/2215/98 SPRING,WAVE,0.86X0.65X0.010,SS
8 94/0752-D/97 VALVE,RELIEF,9/16-32,5PSI 20 255339 AGITATOR BLADE ASSEMBLY
9 95/0518/00 O-RING,VIT,JJF,> 21 255342 MANIFOLD ASSY, VACUUM TREE
10 95/0524/01 GASKET,LID,TFM,NIT 22 15M321 LID,7L,2 1/4"NPT AND 1 9/16-32
PORTS,AG
11 95/0849/11 POSIPAK,3/8IDX5/8OD,STD,P/VIT,> 23 15M392 TANK MODIFICATION
12 96/0005/98 WASHER,LOCK,SPLIT,#10,SS>
312394B 45 of 71
