Accumulators

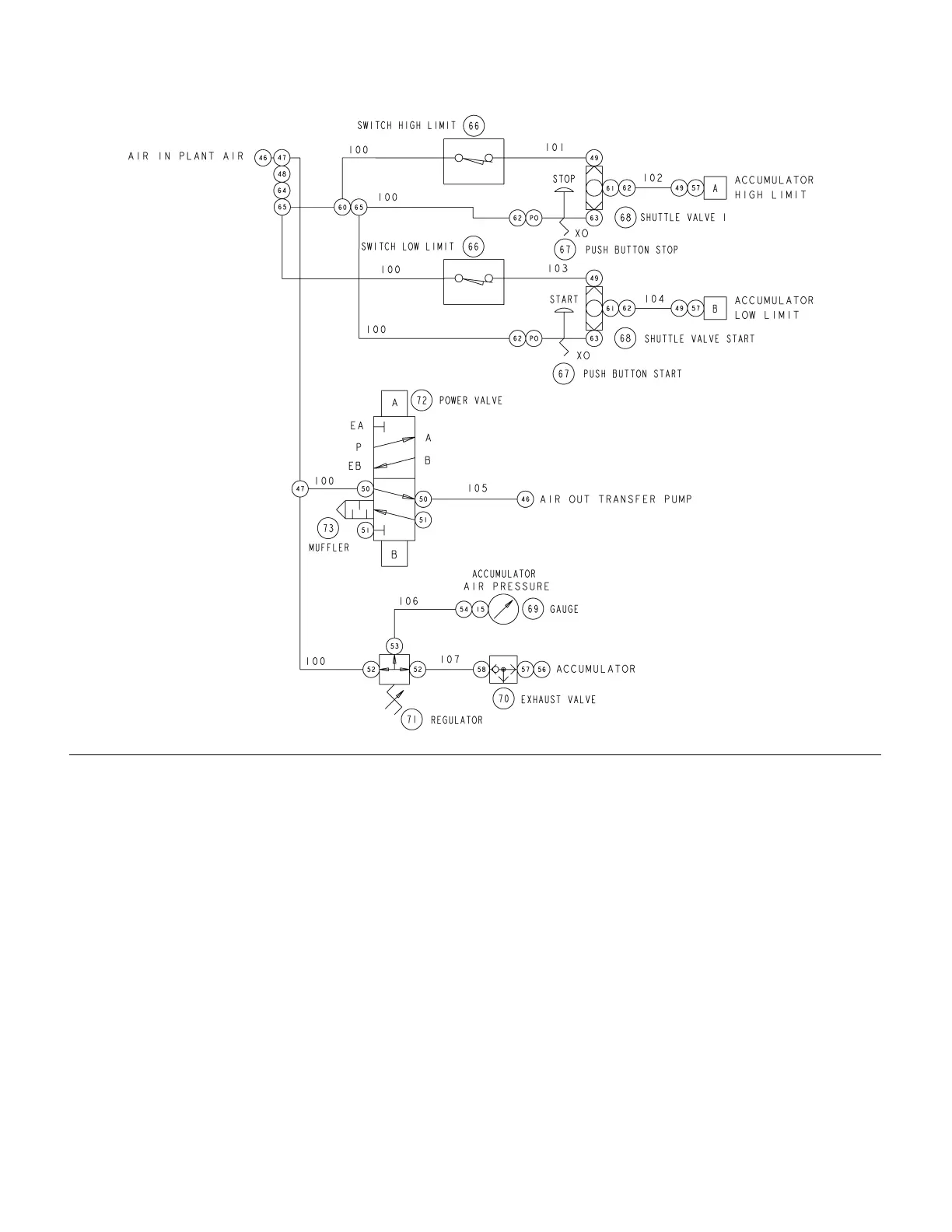

Figure 65: Pneumatic Logic Diagram
15 94/0642/96 ELBOW,1/8NPT,F,90DEG,BRS 63 94/0462/96 NIPPLE,HEX,10-32,BRS
46 94/3201/96 UNION,BULKHEAD,1/4TUBE 64 94/0111/96 ELBOW,5-32X5/32,BRASS
47 94/0786/96 TEE,1/4TUBE,PRESTOLOCK,BRS 65 94/0110/96 CONNECTOR,Y,5/32 TUBE(2), 5/32
PLUG IN STYLE
48 94/0667/96 REDUCER,1/4TUBEX5/32TUBE,PRESTOLOC
K,PLAS
66 SX10/320/011 VALVE,3W,SR,NC,MANUAL
ACTUATION>
49 94/1203/99 CONNECTOR,5/32TUBEX10-32,CROME
PLATED
67 G01000 88 BODY,VALVE,3W,PBSR,NC,10-32,F
50 94/0740-A/9 9 ELBOW,SWVL,1/4TUBEX10-
32,FXM,90DEG,CHROM
82/0047/11 PUSHBUTTON,5/8 DIA HEAD,1/8 DIA
ROD
51 94/0741/96 PLUG,SLT HD,10-32,BRS 68 82/0240/11 VALVE,SHUTTLE,MINI,10-32
52 94/0705-1 /96 ELBOW,SWVL,1/4TUBEX1/8NPT,FXM,90DEG
,BRS
69 82/0053/11 GAUGE,PRESS,0-
30PSI,2",1/8NPT,BACK
53 94/0695/96 ELBOW,SWVL,5/32TUBEX1/8NPT,FXM,90DE
G,BRS
70 82/0241/11 VALVE,QCK EXH,10-32,MINI
54 94/0139/96 CONNECTOR,5/32TUBEX1/8NPT,M,BRS 82/0263-A/11 ACTUATOR,LEVER,ROLLER
56 94/0463/96 BUSHING,1/8NPTX10-32,BRS 71 82/0052/11 REGULATOR,AIR,1/8NPT,3-
30PSIG,10SCFM>
57 82/0171/11 ELBOW,STREET,10-32,ADJ,BRS 72 82/0395/11 VALVE,PWR,4W,DP,10-32,SIDE
PORT
58 94/0102/96 CONNECTOR,1/4TUBEX10-32,BRS 73 G0000061 MUFFLER,AIR,10-
32,SINTERED,BRONZE
60 94/0785/96 TEE,5/32TUBE,PRESTOLOCK,BRS - 61/0035/90 TUBING,.093 ID X 0.156 OD, PU,B
61 94/0840/96 COUPLING,10-32,BRASS - 61/0020-A/90 TUBING,.125 ID X 0.250 OD, 95,B
62 94/1204/99 ELBOW,SWVL,5/32TUBEX10-32,CROME
PLATED
312394B 52 of 71
