Off-Board Stainless Steel Feed Systems

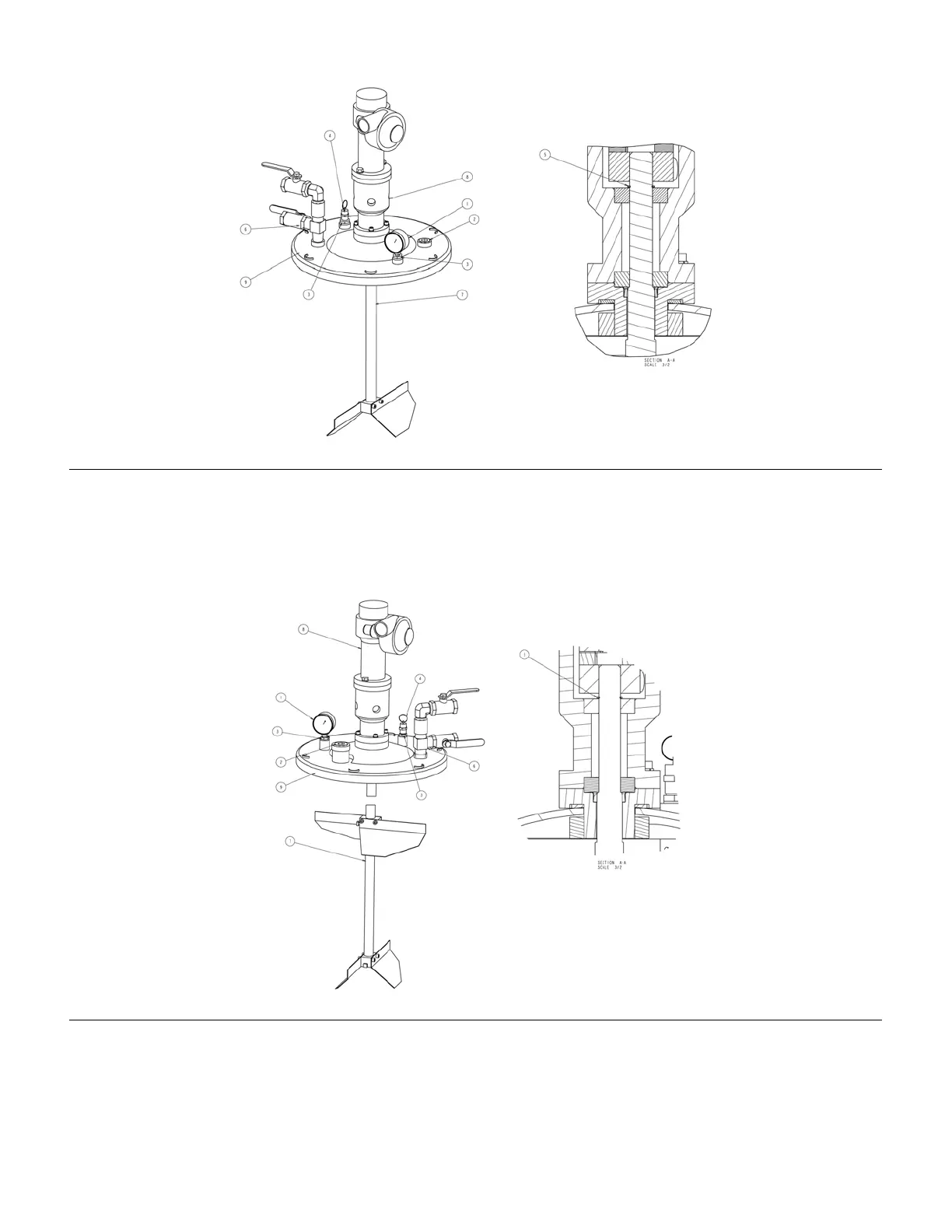

Figure 94: 30L LID ASSY WITH AGITATOR AND VACUUM DEGAS (P/N LC0144)*
1 82/0220-1 /11 GAUGE,PRESS/VAC,30"HG-30PSI,2-1/2",LQUD 6 255384 MANIFOLD,VACUUM TREE,3/4" NPT
2 94/0372/98 PLUG,SKT HD,3/4NPT,SS 7 255387 AGITATOR ASSY,5 GAL
3 94/0568/98 BUSHING,1/2NPTX1/4NPT,3K,SS 8 255670 AGITATOR ASSY,PNEUMATIC
4 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL 9 15M621* LID,AG,7.5 AND 15 GALLON TANKS,SST
5 96/0818/99 RING,RET,EXT,0.750,MS
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
Figure 95: 60L LID ASSY WITH AGITATOR AND VACUUM DEGAS (P/N LC0145)*
1 82/0220-1 /11 GAUGE,PRESS/VAC,30"HG-30PSI,2-1/2",LQUD 6 255384 MANIFOLD,VACUUM TREE,3/4" NPT
2 94/0373/98 PLUG,SKT HD,1"NPT,SS 7 255388 AGITATOR ASSY,15 GAL
3 94/0744/98 BUSHING,3/8NPTX1/4NPT,SS> 8 255670 AGITATOR ASSY,PNEUMATIC
4 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL 9 15M836* LID MOD,15 GAL,SST,AGITATOR
5 96/0818/99 RING,RET,EXT,0.750,MS
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255390 MUST BE ORDERED
312394B 69 of 71
