Off-Board Stainless Steel Feed Systems

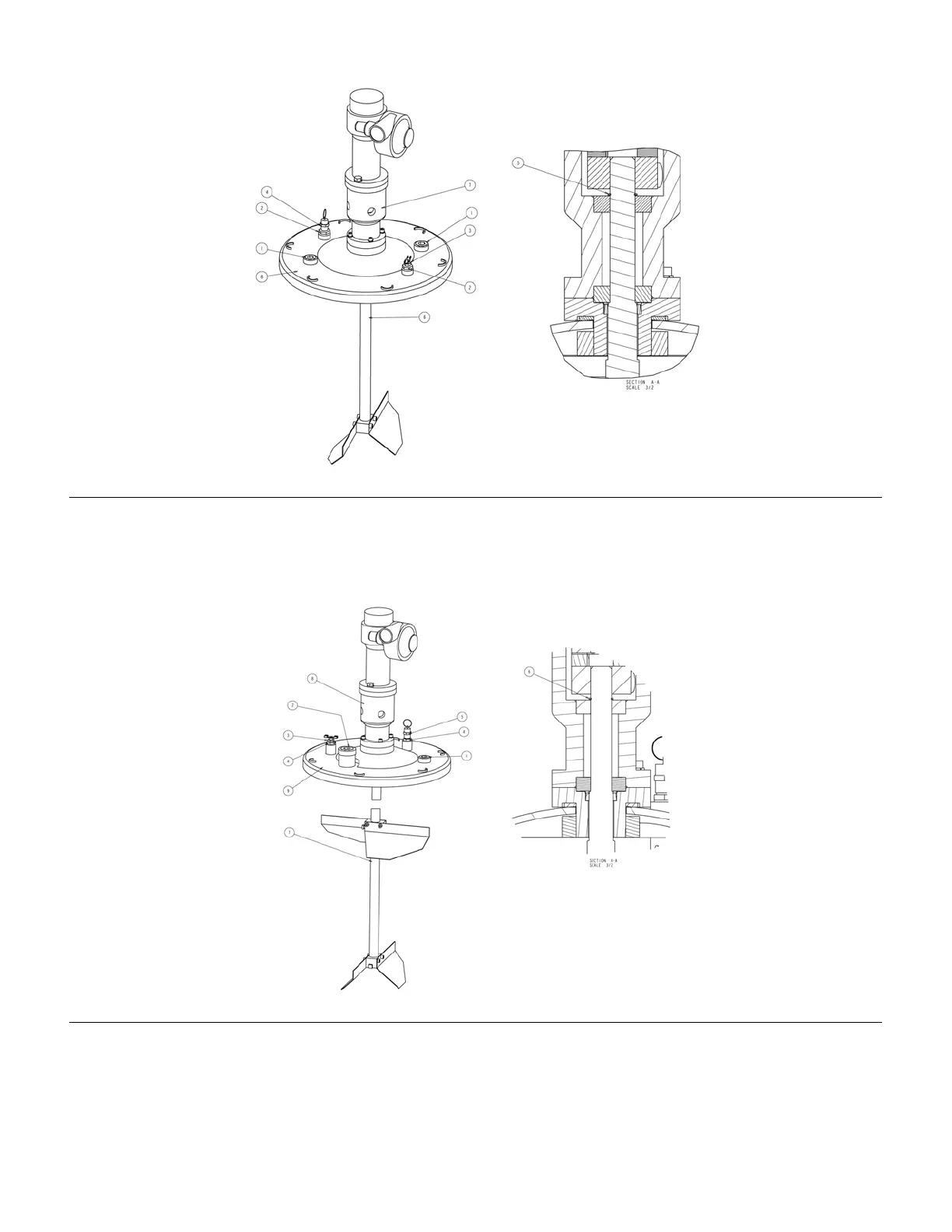

Figure 92: 30L LID ASSY WITH PNEUMATIC AGITATOR (P/N LC0142)*
1 94/0372/98 PLUG,SKT HD,3/4NPT,SS 5 96/0818/99 RING,RET,EXT,0.750,MS
2 94/0568/98 BUSHING,1/2NPTX1/4NPT,3K,SS 6 255387 AGITATOR ASSY,5 GAL
3 94/0736/96 VALVE,DRAIN COCK,1/4NPT,M,BRS 7 255670 AGITATOR ASSY,PNEUMATIC
4 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL 8 15M621* LID,AG,7.5 AND 15 GALLON TANKS,SST
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255389 MUST BE ORDERED
Figure 93: 60L LID ASSY WITH PNEUMATIC AGITATOR (P/N LC0143)*
1 94/0372/98 PLUG,SKT HD,3/4NPT,SS 6 96/0818/99 RING,RET,EXT,0.750,MS
2 94/0373/98 PLUG,SKT HD,1"NPT,SS 7 255388 AGITATOR ASSY,15 GAL
3 94/0736/96 VALVE,DRAIN COCK,1/4NPT,M,BRS 8 255670 AGITATOR ASSY,PNEUMATIC
4 94/0744/98 BUSHING,3/8NPTX1/4NPT,SS> 9 15M836 LID MOD,15 GAL,SST,AGITATOR
5 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255390 MUST BE ORDERED
312394B 68 of 71
