Off-Board Stainless Steel Feed Systems

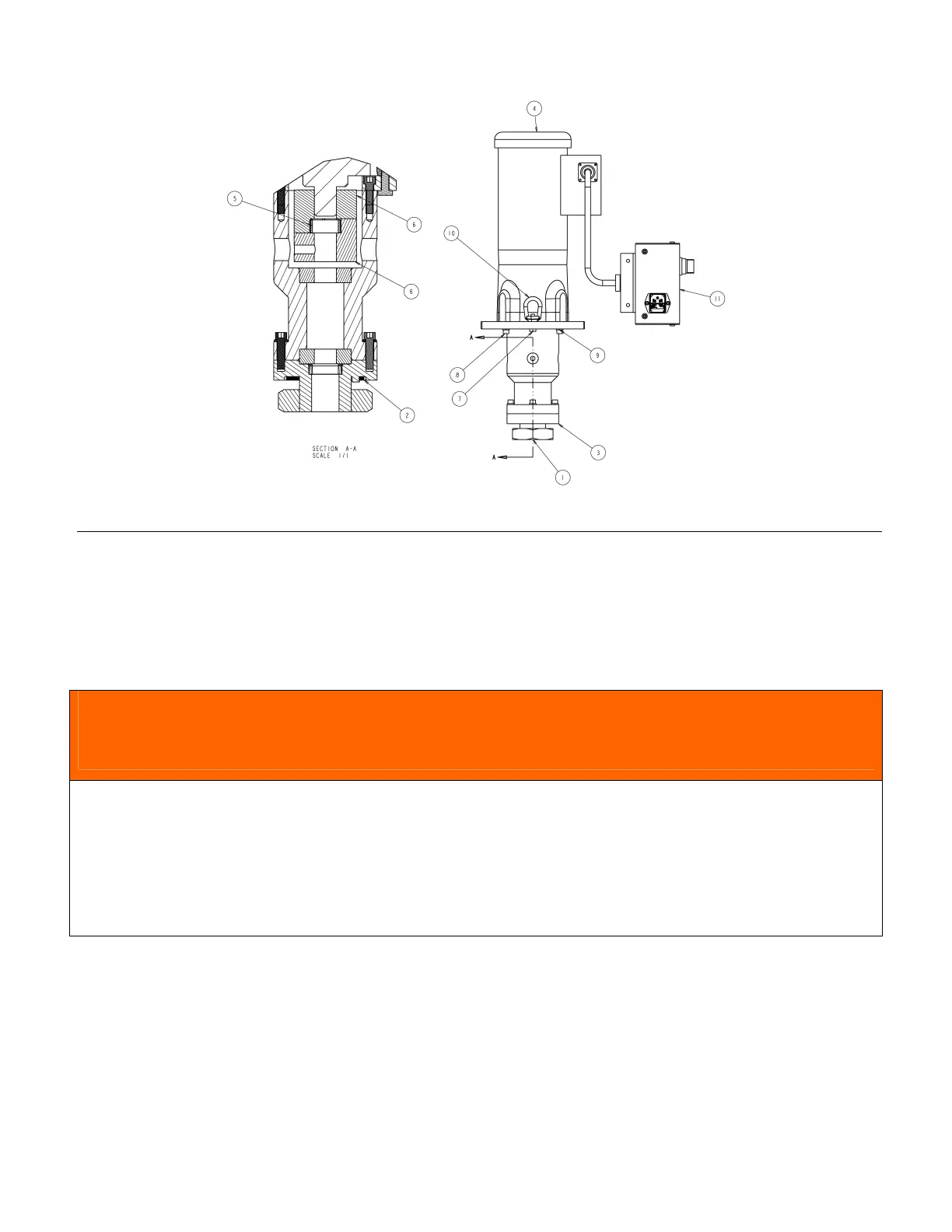

Figure 91: AGITATOR MOTOR ASSEMBLY (P/N 255386)
1 01/0583/98
2 01/1487/01
3 02/1480/50
4
5
6 84/1481/11
NUT,AGITATOR,1.75-16,.875 SHAFT 7 96/0042/99 SCREW,HHC,1/4-20X1.00,MS
GASKET,MTG,AGIT HOUSING,ASME,BUNA 8 96/0184/99 SCREW,SHC,1/4-28X1.00,MS,E@
AGITATOR ASSY,ASME,480IN-LB,58RPM 9 96/0311/99 WASHER,LOCK,SPLIT,1/4,HC,E@
81/1480-2/25 GEARMOTOR,58RPM,484IN-LBS,0.50HP,230/3/6 10 96/0550/99 NUT,EYE,1/4-20,MS
84/1480/11 COUPLING,ALIGNMENT,2.11"OD,DISK,HYTREL 11 02/1482-RV3/25 CONTROL ASSY,ELEC
AGIT,REMOTE,230VAC
COUPLING,ALIGNMENT,2.11"OD,HUB,3/4ID,MS
CAUTION
• THE LIFT RINGS ON THE MOTOR ASSEMBLY ARE FOR LIFTING THE
LID ASSEMBLY OFF OF THE TANK ONLY
• DO NOT ATTEMPT TO USE THEM TO LIFT THE WHOLE TANK
• DO NOT ATTEMPT TO USE THEM TO LIFT THE WHOLE MACHINE
ASSEMBLY
312394B 67 of 71
