Off-Board Stainless Steel Feed Systems

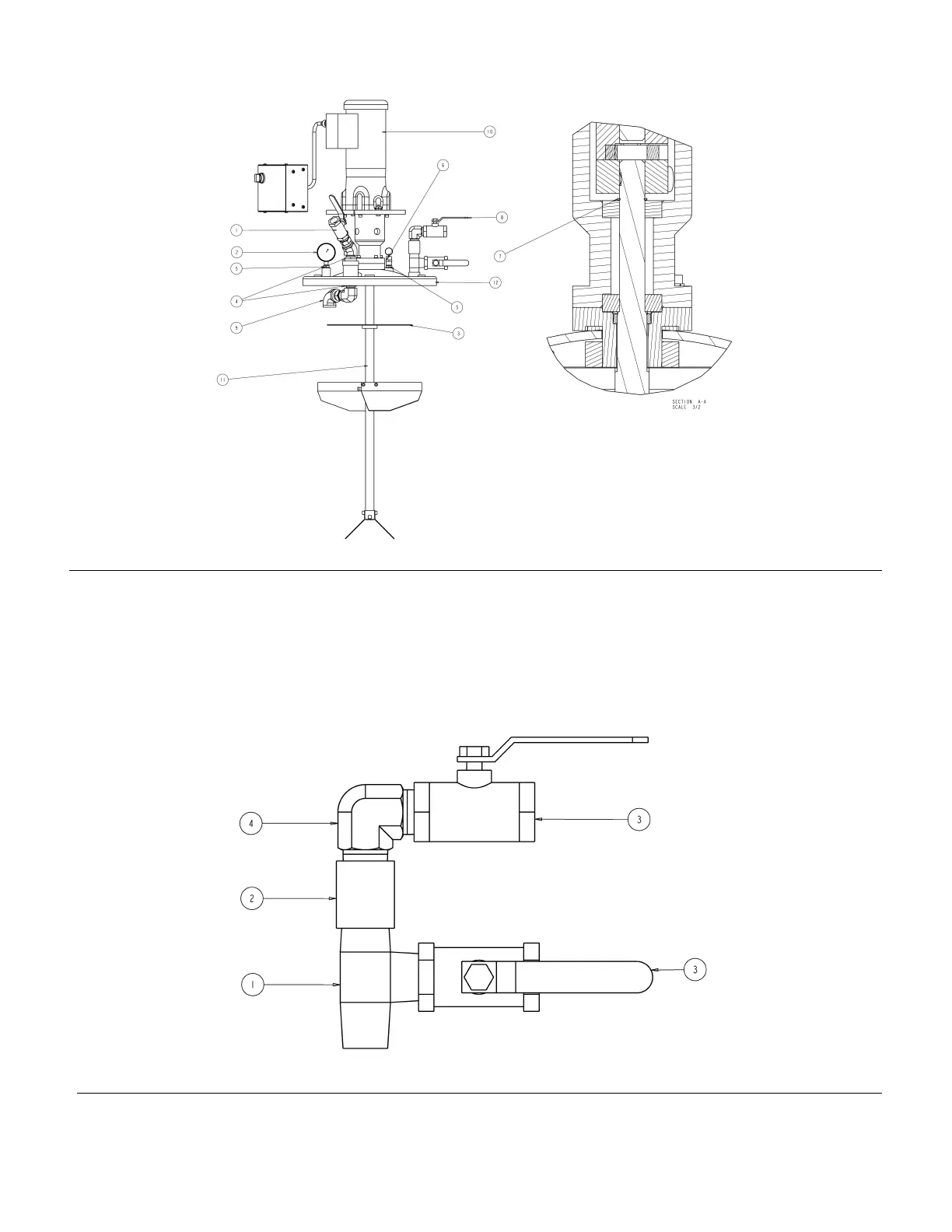

Figure 89: 60L LID ASSY WITH AGITATOR, VACUUM DEGAS, & FILL PORT (P/N LC0052)*
1 02/0686-A/50 VALVE ASSY,BALL,FILL,LID,3/4,MS,>50 TORR 7 96/0818/99 RING,RET,EXT,0.750,MS
2 82/0220-1/11 GAUGE,PRESS/VAC,30"HG-30PSI,2-1/2",LQUD 8 255384 MANIFOLD,VACUUM TREE,3/4" NPT
3 87/0105-E/98 PLATE,SLINGER,10/15 GAL,1"ID,10"OD,SS 9 255385 ASSY,FILL PORT,3/4" NPT
4 94/0397/98 BUSHING,1"NPTX3/4NPT,SS 10 255386 MOTOR ASSY,LID,AGIT
5 94/0744/98 BUSHING,3/8NPTX1/4NPT,SS> 11 255388 AGITATOR ASSY,15 GAL
6 15R145 VALVE,RELIEF,1/4NPT,M,40PSI,SIL 12 15M836 LID MOD,15 GAL,SST,AGITATOR
* PART CANNOT BE ORDERED AS A SPARE. REPLACEMENT TANK ASSEMBLY 255390 MUST BE ORDERED
Figure 90: MANIFOLD, 3/4" NPT VACUUM TREE (P/N 255384)
1 94/0055/98 TEE,3/4NPT,M,3K,SS 3 94/0903-R2/98 VALVE,BALL,2W,3/4NPT,F,20
2 94/0836/98 COUPLING,FULL,3/4NPT,SS 4 121116 ELBOW,3/4" NPT M-M
