Installation
312759W 21
Tank Refill Kit Side Installation
1. Use PTFE tape and the fittings supplied to install
the refill kit as shown in F
IG. 7.
2. For tank refill kits installed on the A side tank,
plug the tank refill kit power cord into the “A” con-
nector located at the back of the machine. See F
IG.
8.
For tank refill kits installed on the B side tank,
plug the tank refill kit power cord into the “B” con-
nector located at the back of the machine. See F
IG.
8.
F

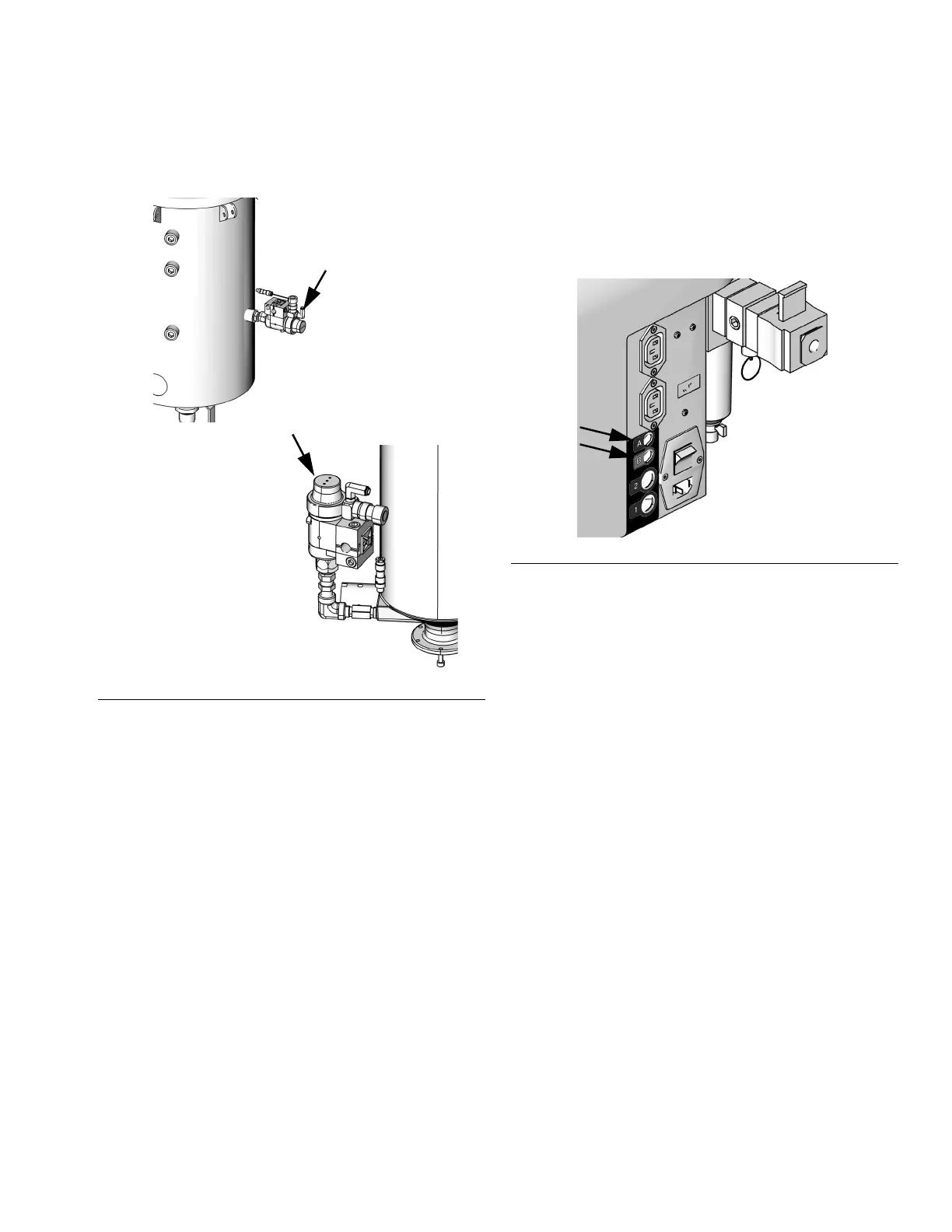

IG. 7: Side Installation
ti13385a
ti12591b
7.5 L Tanks
30 L or 60 L Tanks
FIG. 8: Tank Refill Kit Power Source
