Setup
36 312759W
System Data Screen
Software Version
Software version will read “0.00.000” if component can-
not be seen by the ADM. This is the result of the compo-
nent not being installed or a communication error.
Machine Cycles
A machine cycle is one full extension and retraction of
the machine piston. The Current Machine Cycles
Counter is resettable and the Total Machine Cycles
Counter is the number of cycles since the ADM was
installed. Reprogramming the ADM will not reset the
Total Machine Cycles counter.
Reset Current Machine Cycles Counter
1. Press the Enter/Exit Screen button (MA) to enter the
screen. The Current Machine Cycles count will be
highlighted.
2. Press the Enter button ( ) to reset the Current
Machine Cycles counter.
3. Press the Enter/Exit Screen button (MA) to exit the
screen.

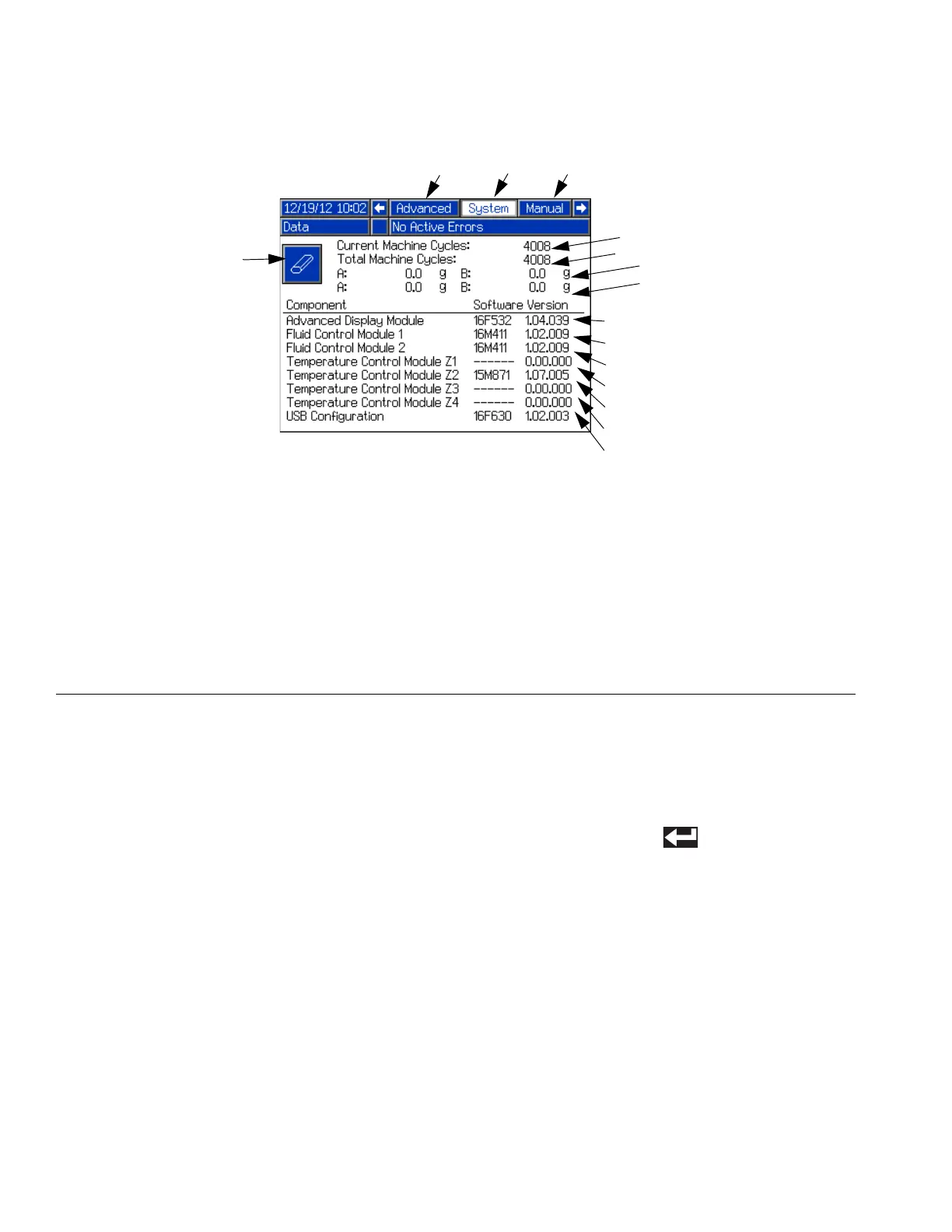

F
IG. 21
Key:
MA Enter/Exit Screen
MB Current Machine Cycles Counter
MC Total Machine Cycles Counter
MD Advanced Display Module Software
Version
ME Fluid Control Module #1 Software
Version
MF Fluid Control Module #2 Software
Version
MG Temperature Control Module -
Zone #1 Software Version
MH Temperature Control Module -
Zone #2 Software Version
MJ Temperature Control Module -
Zone #3 Software Version
MK Temperature Control Module -
Zone #4 Software Version
ML Active Screen Name
MM Adjacent Screen Names
MN Resettable material weight counter
MP Non-resettable material weight
counter
MA
MB
MC
MD
ME
MF
MG
MH
MJ
MK
ML
MM
MM
MN
MP
