Graco PR70 - Manual Screen

Setup
312759W 37
Manual Screen
The Manual screen overrides control of some machine
actions. This can be useful in troubleshooting. To per-
form any of the available machine actions shown on the
Manual screen, press the appropriate button.

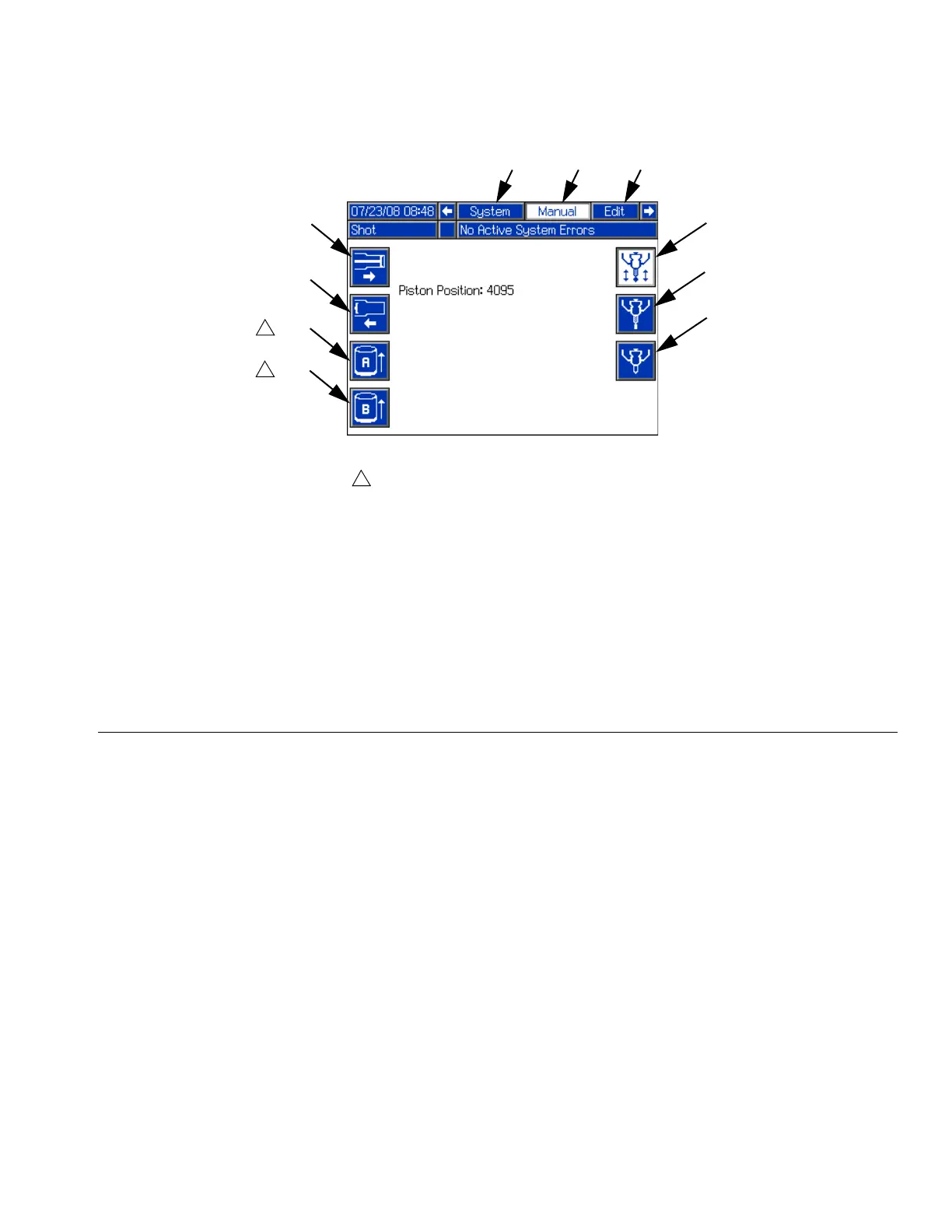

F
IG. 22
EG
Key:
EA Extend Piston Command
EB Retract Piston Command
EC Tank A Refill Valve Command Open
ED Tank B Refill Valve Command Open
EE Dispense Valve Command Close
EF Dispense Valve Command Open
EG Revert to Automatic Dispense Valve Operation
EH Active Screen Name
EJ Adjacent Screen Names
EA
EB
EC
ED
EF
EE
1
Valve will open for approximately two seconds.
1
1
EHEJ EJ
