Repair
Repair Repair
Repair
Fluid Fluid
Fluid
Temperature Temperature
Temperature
Sensor Sensor
Sensor
(FTS) (FTS)
(FTS)
Installation Installation
Installation
TheFluidTemperatureSensor(FTS)issuppliedwith
thesystem.InstallFTSbetweenmainhoseand
whiphose.SeeHeatedHosemanual309572for
instructions.
Test/Removal Test/Removal
Test/Removal
1.PerformShutdown,page48.
2.RemovetapeandprotectivecoveringfromFTS.
Disconnecthosecable(F).
3.IfFTSisnotreadingproperlyattheendofthe
hose,seeCheckRTDCablesandFTS,page62.
4.IfFTSfails,replaceFTS.

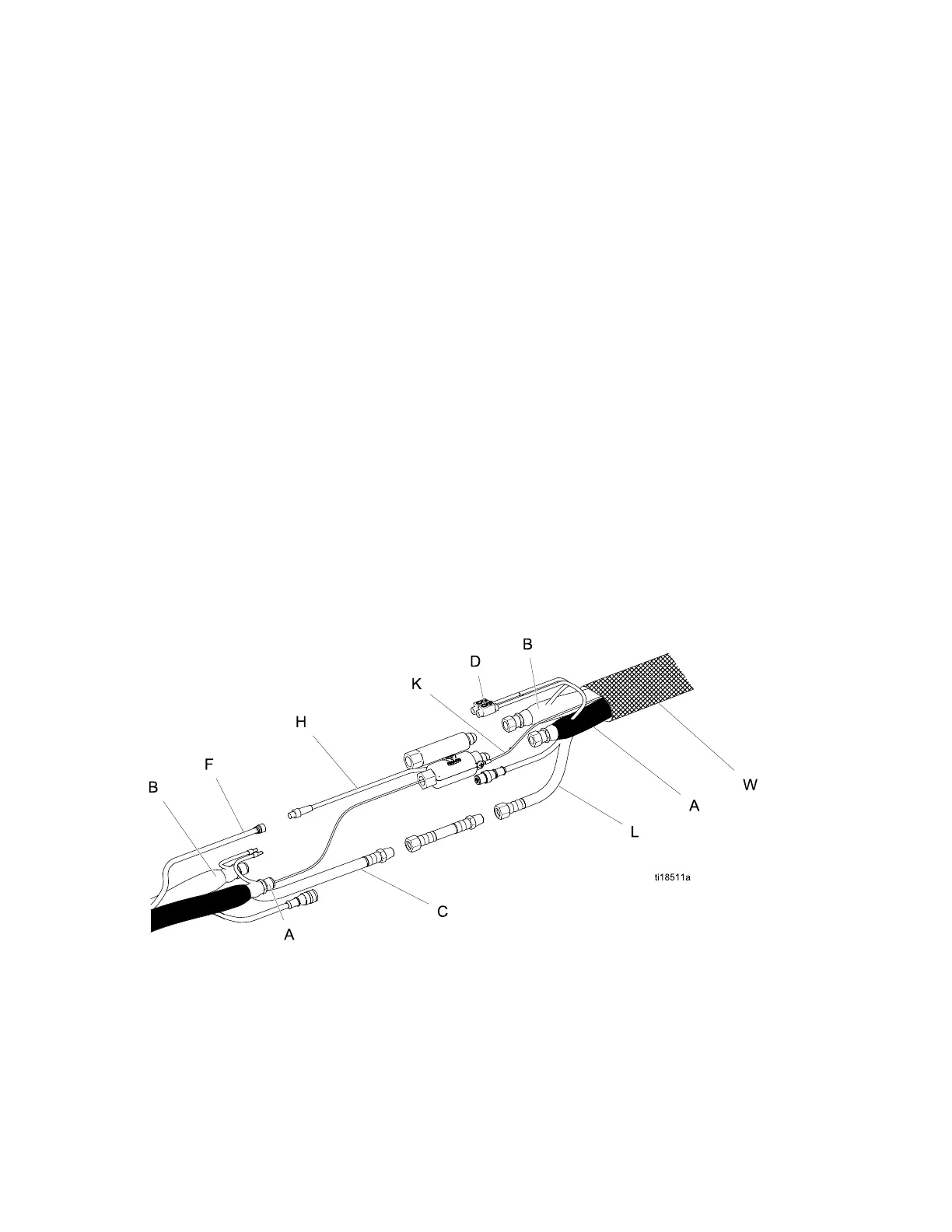

a.Disconnectairhoses(C,L)andelectrical
connectors(D).
b.DisconnectFTSfromwhiphose(W)and
󰘱uidhoses(A,B).
c.Removegroundwire(K)fromgroundscrew
onundersideofFTS.
d.RemoveFTSprobe(H)fromcomponentA
(ISO)sideofhose.
64 334946H
