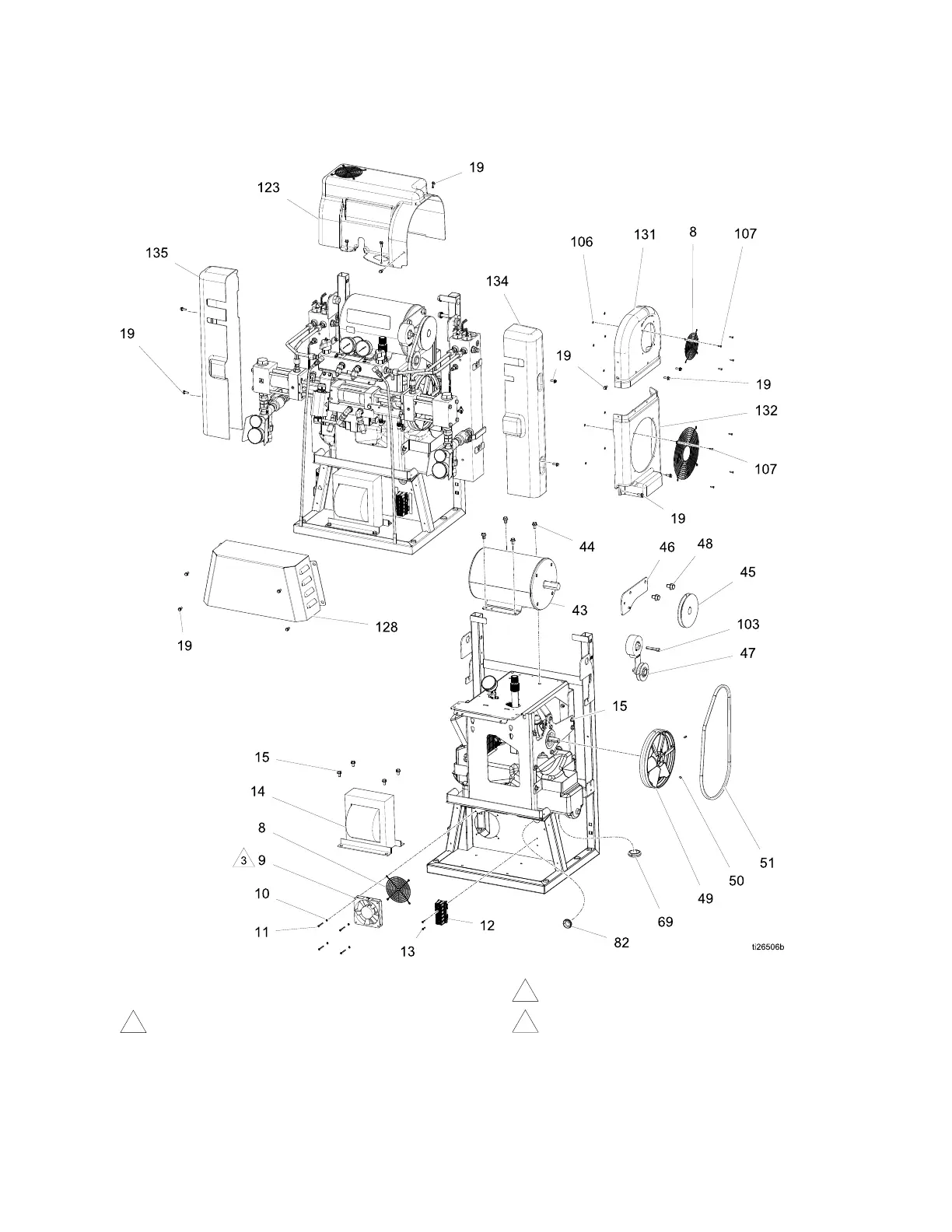

Parts
Proportioner Proportioner
Proportioner
Parts Parts
Parts
1.
Applyanaerobicpipesealanttoallnon-swiveling
pipethreads.
3
Ensurethatthefan(9)directionarrowpoints
awayfromthemountingpanel.
4
Installpulley(45)󰘱ushwithmotorshaft(43).
5
Installpulley(44)overhungonpumpshaft(27)
by.18+/-.03in.Onmodels17H031,17H032,
and17H074:Installpulley(49).49+/-.03in.
frompumpshaft(27)end.
334946H 73
