Graco Reactor 2 User Manual

Component Identification

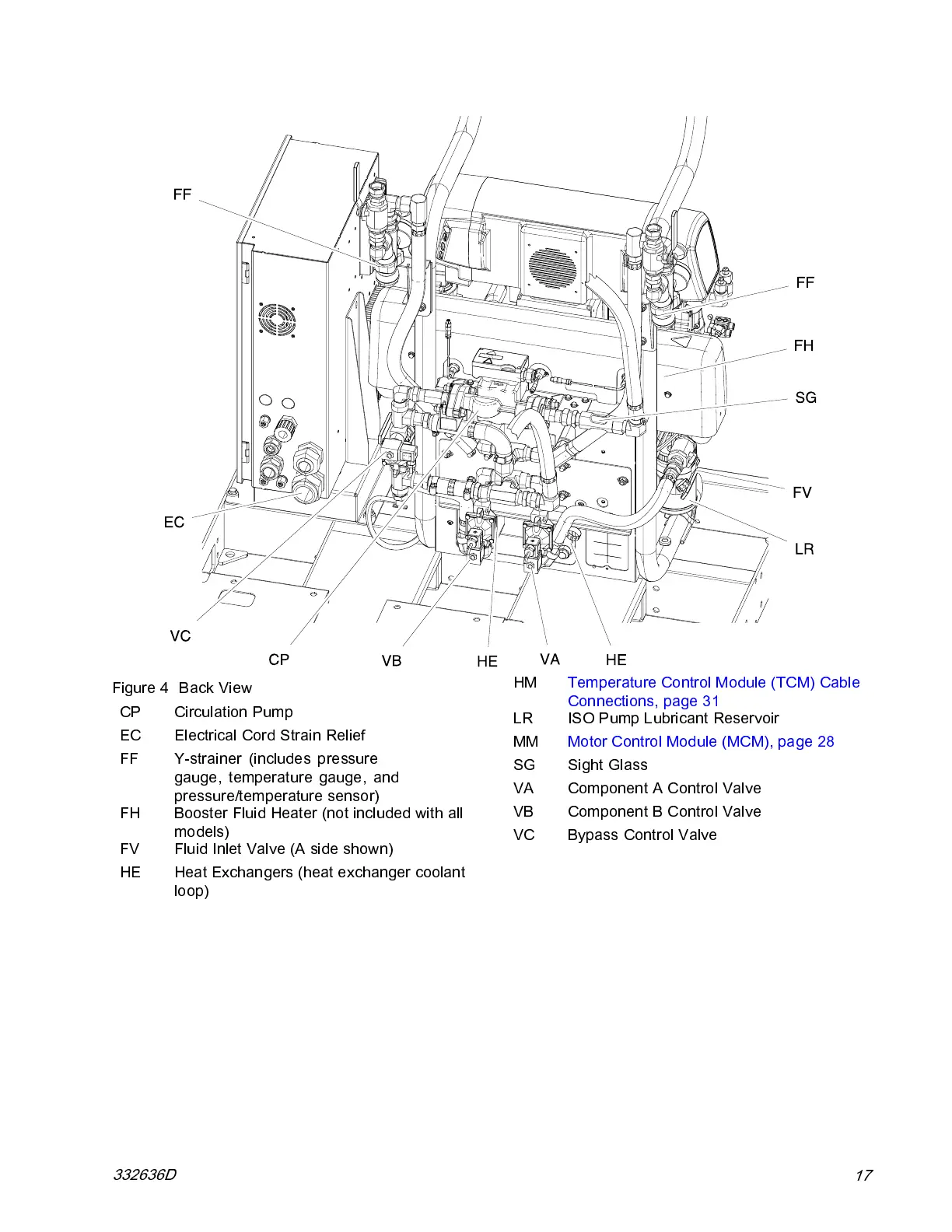

Figure 4 Back View
CP Circulation Pump
EC Electrical Cord Strain Relief
FF
Y-strainer (inc ludes pressure
gauge, temperature gauge, and
pressure/temperature sensor)
FH
Booster Fluid Heater (not included with all
models)
FV
FluidInletValve(Asideshown)
HE
Heat Exchangers (heat exchanger coolant
loop)
HM
Temperature Control Module (TCM) Cable
Connections, page 31
LR ISO Pump Lubricant Reservoir
MM Motor Control Module (MCM), page 28
SG Sight Glass
VA Component A Control Valve
VB Component B Control Valve
VC Bypass Control Valve
332636D
17
