Component Identification
Component Identification

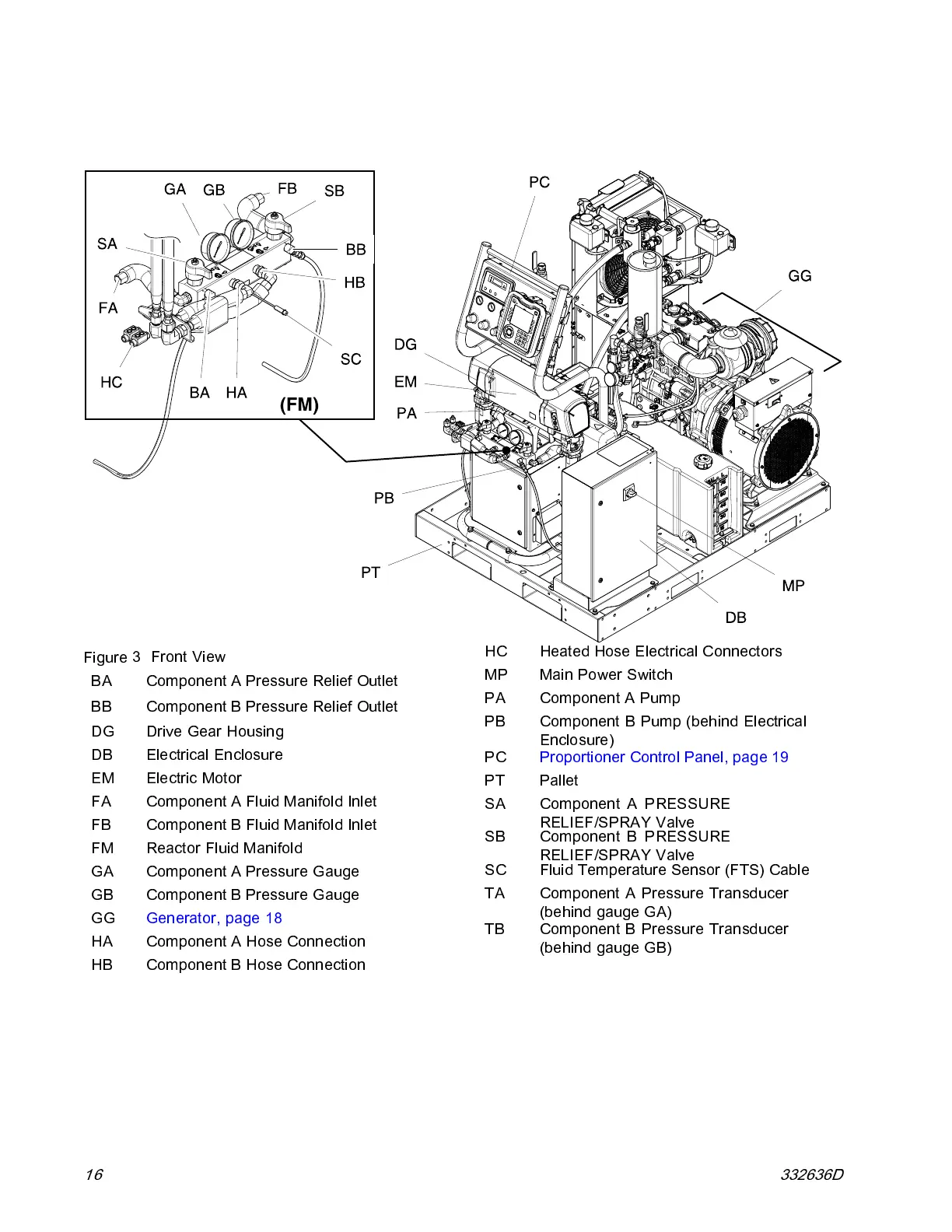

Figure
3 Front View
BA
Component A Pressure Relief Outlet
BB
Compon
ent B Pressure Relief Outlet
DG Drive Ge ar Hou sing
DB Electrical Enclosure
EM Electric Motor
FA
Component A Fluid Manifold Inlet
FB
Component B Fluid Manifold Inlet
FM
Reactor Fluid Manifold
GA Component A Pressure Gauge
GB Component B Pressure Gauge
GG Generator, page 18
HA
Component A Hos e Connection
HB
Component B Hos e Connection
HC Heated Hose Electrical Connectors
MP
Main Power Switch
PA
Component A Pump
PB
Component B Pump (behind Electrical
Enclosure)
PC Prop
ortioner Control Panel, page 19
PT Pallet
SA Comp
onent A PRESSURE
RELI
EF/SPRAY Valve
SB Component B PRESSURE
RELIEF/SPRAY Valve
SC Fl
uid Temperature Sensor (FTS) Cable
TA
Co
mponent A Pressure Transducer
(b
ehind gauge GA)
TB Component B Pressure Transducer
(behind gauge GB)
16 332636D
