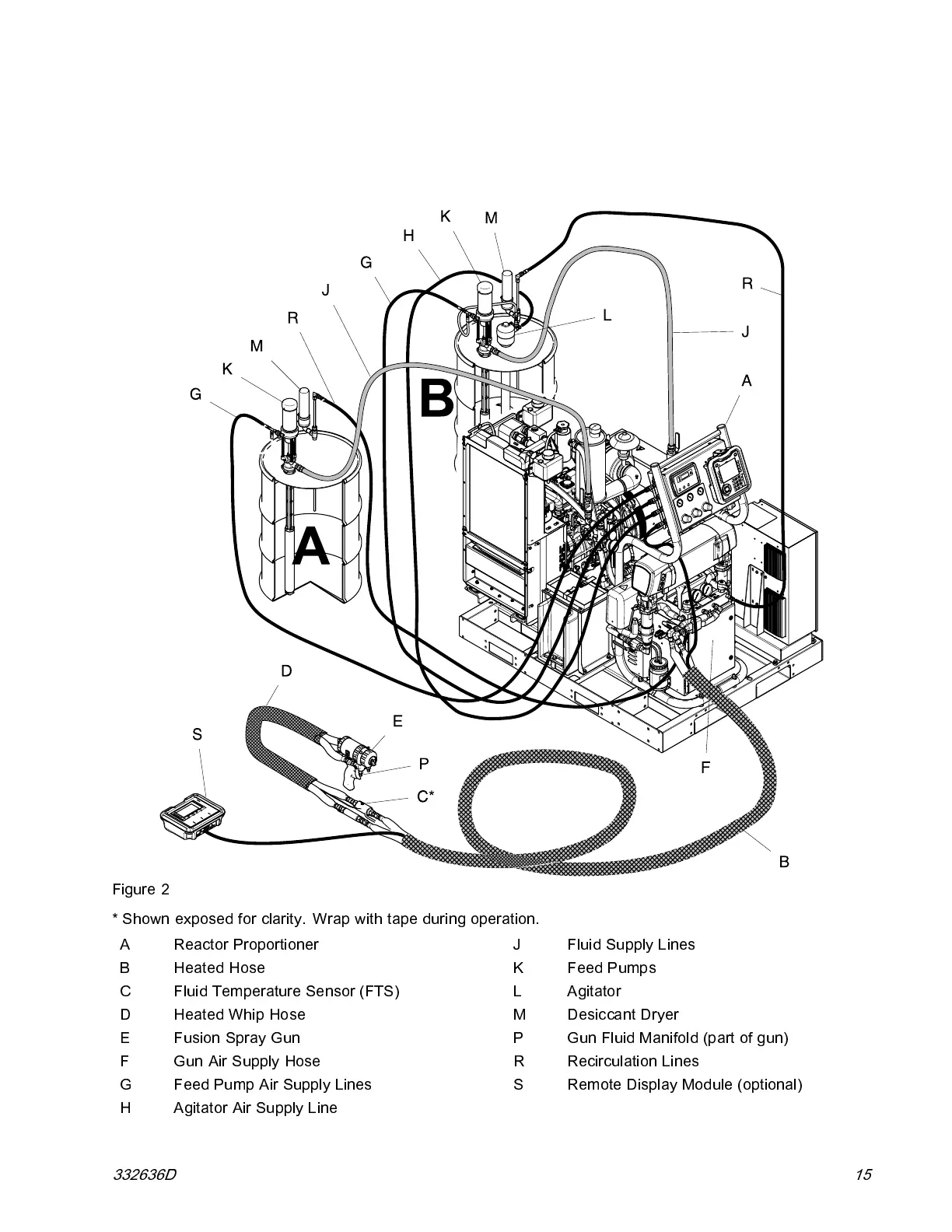

Typical Installation, with circulation
Typical Installation, with
circulation
Figure 2
* Shown exposed for clarity. Wrap with tape during operati o n.
A Reactor Proporti oner
BHeatedHose
C Fluid Temperature Sensor (FTS)
D HeatedWhipHose
E
Fusion Spray Gun
F
Gun Air Supply Hose
G Feed Pump Air Supply Lines
H
Agitator Air Supply Line
J
Fluid Su pply Lines
K Feed Pump s
L Agitator
MDesiccantDryer
P
Gun Fluid Manifold (part of gun)
R Recirculation Lines
S Remote Display Module (optional)
332636D 15
