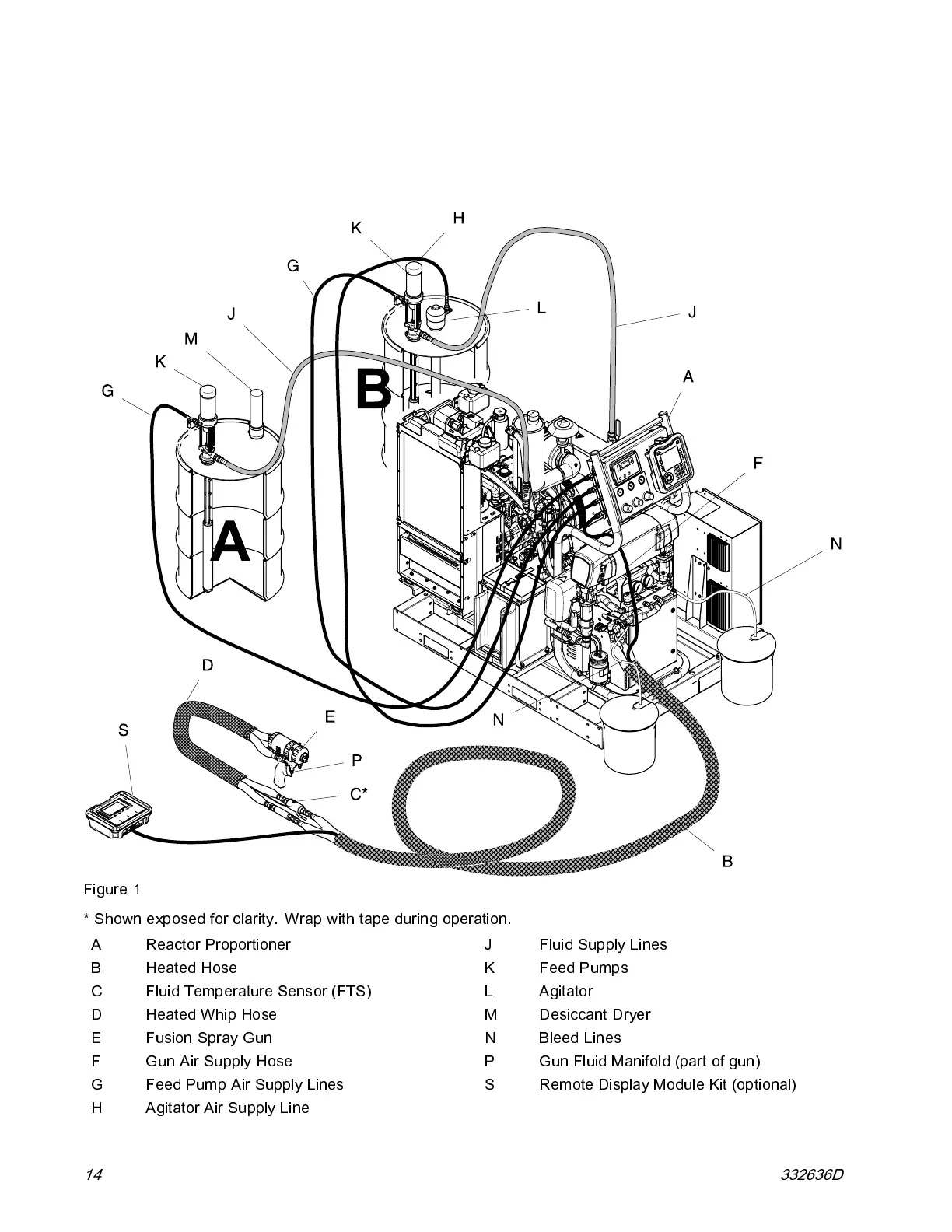

Typical Installation, without circulation
Typical Installation,
without circulation
Figure 1
* Shown exposed for clarity. Wrap with tape during operation.
A Reactor Proportioner
BHeatedHose
C Fluid Temperature Sens or (FTS)
D Heated Whip Hose
E
Fusion Spray Gun
F
Gun Air Supply Hose
G Feed Pump Air Supply Lines
H
Agitator Air Suppl y Li ne
J
Fluid Sup ply Lines
K Feed Pumps
L Agita tor
M Desiccant Dryer
NBleedLines
P
Gun Fluid Manifold (part of gun)
S Remote Display Module Kit (optional)
14
332636D
