Component Identification
Proportioner Control Panel

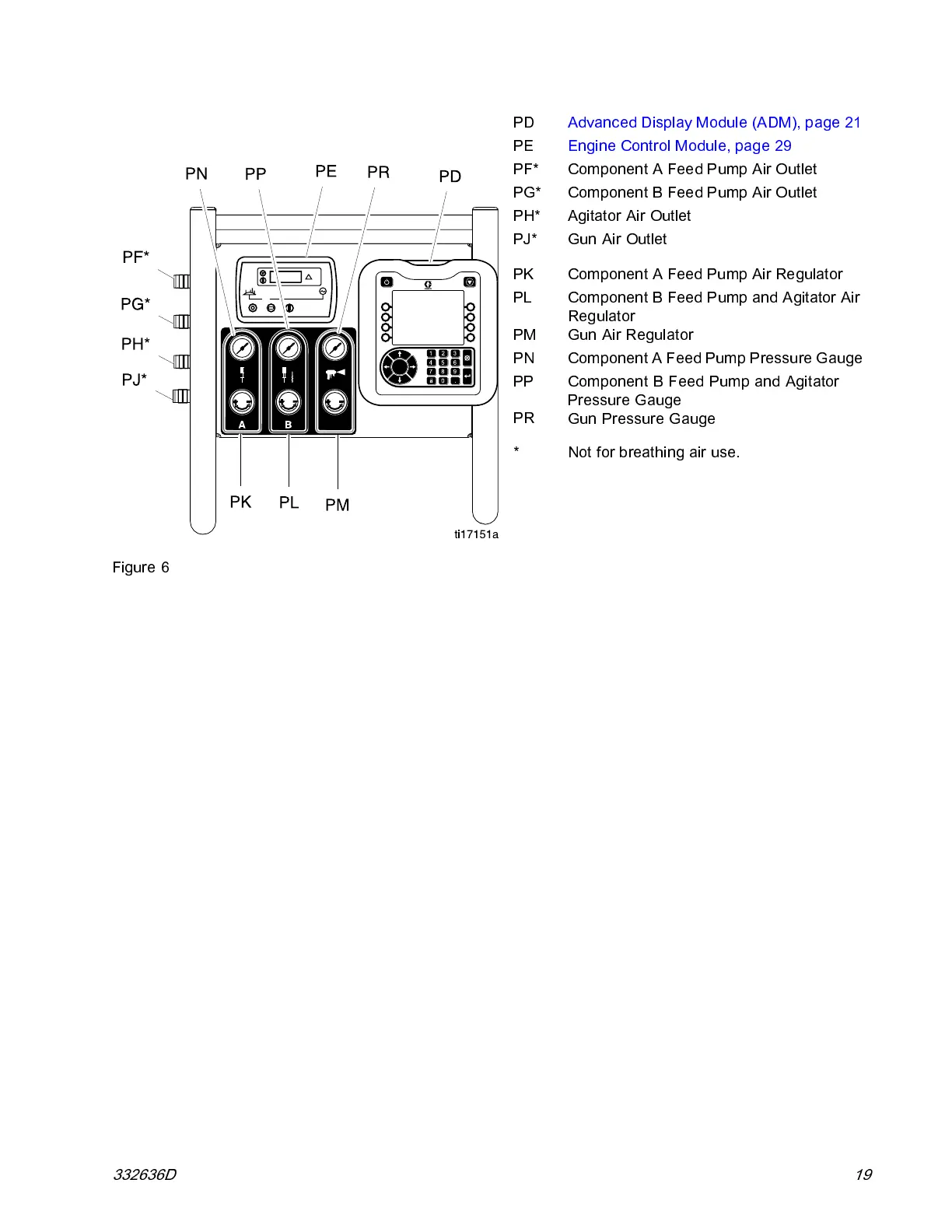

Figure 6
PD
Advanced Display Module (ADM), page 21
PE
Engine Control Module, page 29
PF* Component A Feed Pump Air Outlet
PG* Component B Feed Pump Air Ou tlet
PH* Agitator Air Outlet
PJ* Gun Air Out let
PK
Component A Fee d Pump Air Regulator
PL
Component B Feed P ump and Agitator Air
Regulator
PM Gun Air Regulator
PN Component A Feed Pump Pressure Gauge
PP Component B Feed Pump and Agitator
Pressure Gauge
PR
GunPressureGauge
* Not for breathing air use.
332636D 19
