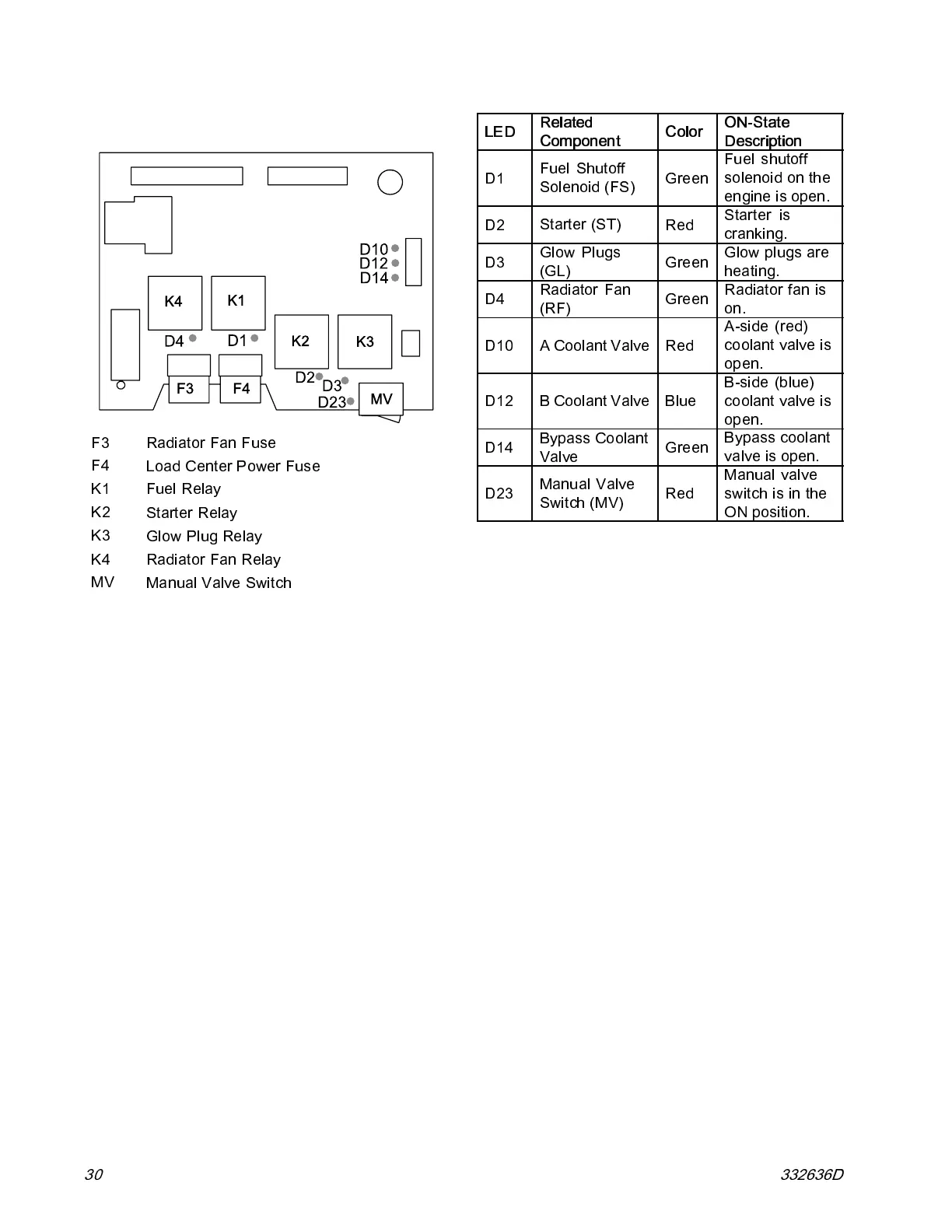

Component Identiﬁcation

Load Center

F3 Radiator Fan Fus e

Load Center Power Fus e

K1 Fuel Relay

Starter Relay

Glow Plug Relay

K4 Radiator Fan Relay

Manual V a lve Switch

LED

Component

Color

ON-State

Description

Fuel Shutoff

Solenoid (FS)

Green

Fuel shutoff

solenoid on the

engine is ope n.

Starter (ST)

Red

Starter is

cranking.

Glow Plugs

(GL)

Green

Glow plugs are

heating.

Radiator Fan

(RF)

Green

Radiator fa n is

on.

D10 A Coolant Valve Red

A-side (red)

coolant valve is

open.

D12 B Coolant Valve Blue

B-side (blue)

coolant valve is

open.

D14

Bypass Coolant

Valve

Green

Bypass co olant

valve is open.

D23

Manual Valve

Switch (MV)

Red

Manual valve

switch is in the

ON position.

30 332636D
