Graco Reactor 2 User Manual

Setup

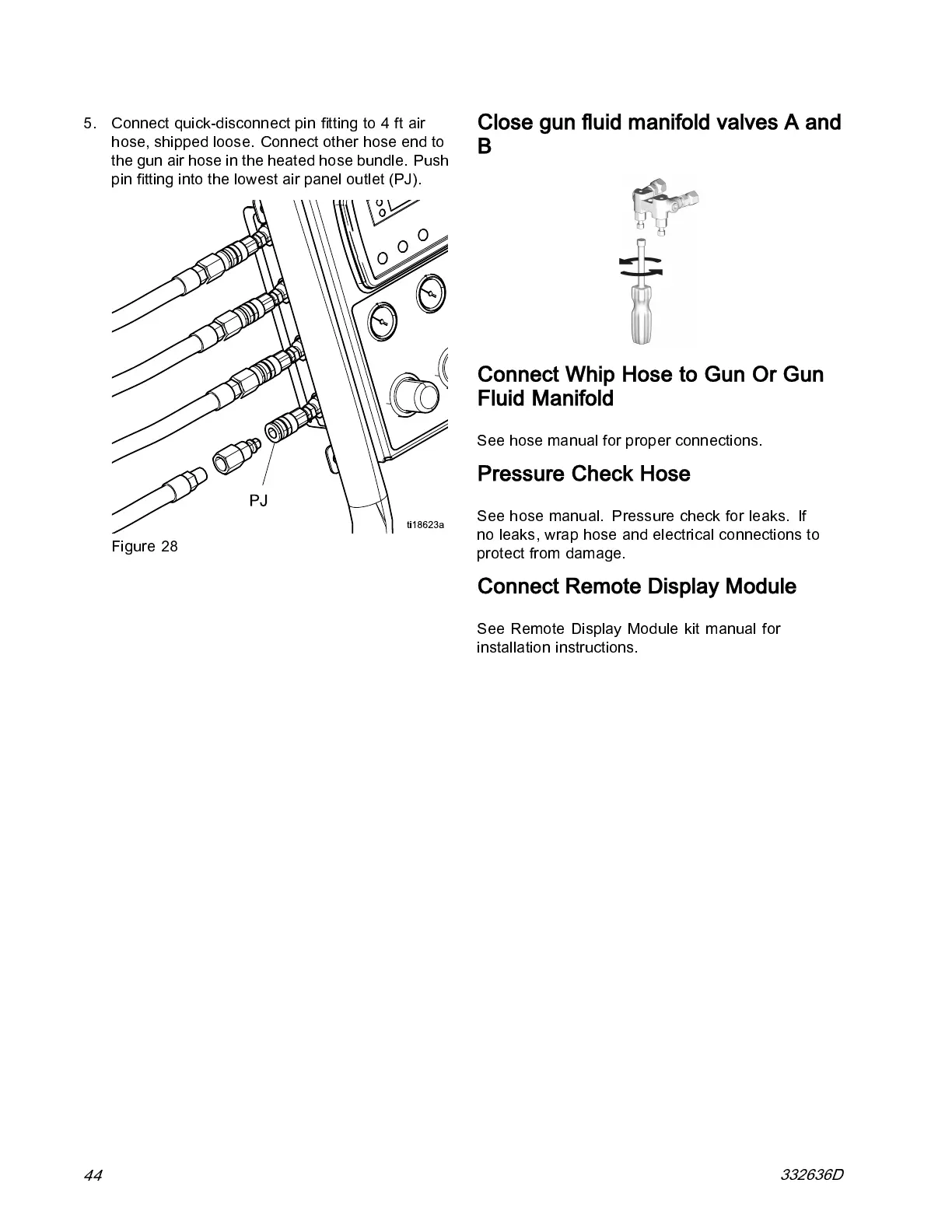

5. Conn ect quick-disconnect pin fitting to 4 ft air
hose, shipped loose. Connect other hose end to
the gun air hose in the heated hose bundle. Push
pin fitting into the lowest air panel outlet (PJ).
Figure 28
Close gun fluid manifold valves A and
B
Connect Whip Hose to Gun Or Gun
Fluid Manifold
See hose manual f or proper connections.
Pressure Check Hose
See hose manual. Pressure check for leaks. If
no leaks, wrap hose and electrical connections to
protect from damage.
Connect Remote Display Module
See Remote Display Module kit manual for
installation instructions.
