Operation

System Events

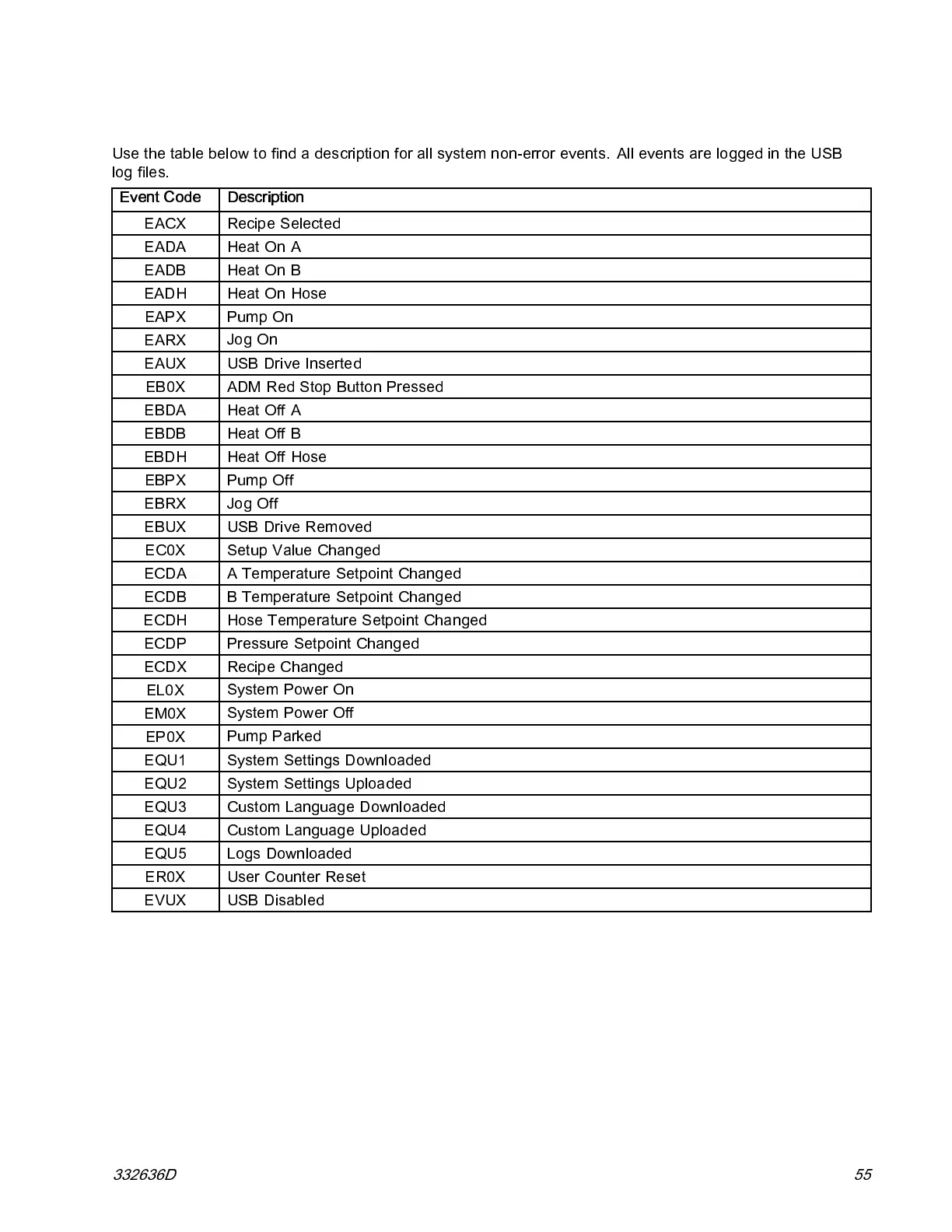

Use the table below to ﬁnd a description for all system non-error events. All events are logged in the USB

log ﬁles.

Event Code Description

EACX

Recipe Selected

EADA

Heat O n A

EADB

Heat O n B

EADH

Heat O n Hose

EAPX

Pump On

EARX

Jog On

EAUX

USB Drive Inserted

EB0X

ADM Red Stop Button Press ed

EBDA

Heat O ff A

EBDB

Heat O ff B

EBDH

Heat O ff Hose

EBPX

Pump Off

EBRX

Jog Off

EBUX

USB Drive Removed

EC0X

Setup V alue Changed

ECDA

A Temperature Setpoint Changed

ECDB

B Temperature Setpoint Changed

ECDH

Hose Tempe rature Setpoint Changed

ECDP

Pressure Setpoint Changed

ECDX

Recipe Changed

EL0X

System Power On

EM0X

System Power Off

EP0X

Pump Parked

EQU1

System Settings Downloaded

EQU2

System Settings Uploaded

EQU3

Custom L anguage Downl oaded

EQU4

Custom L anguage Upl oaded

EQU5

Logs Downloaded

ER0X

User Counter Reset

EVUX

USB Disabled

332636D 55
