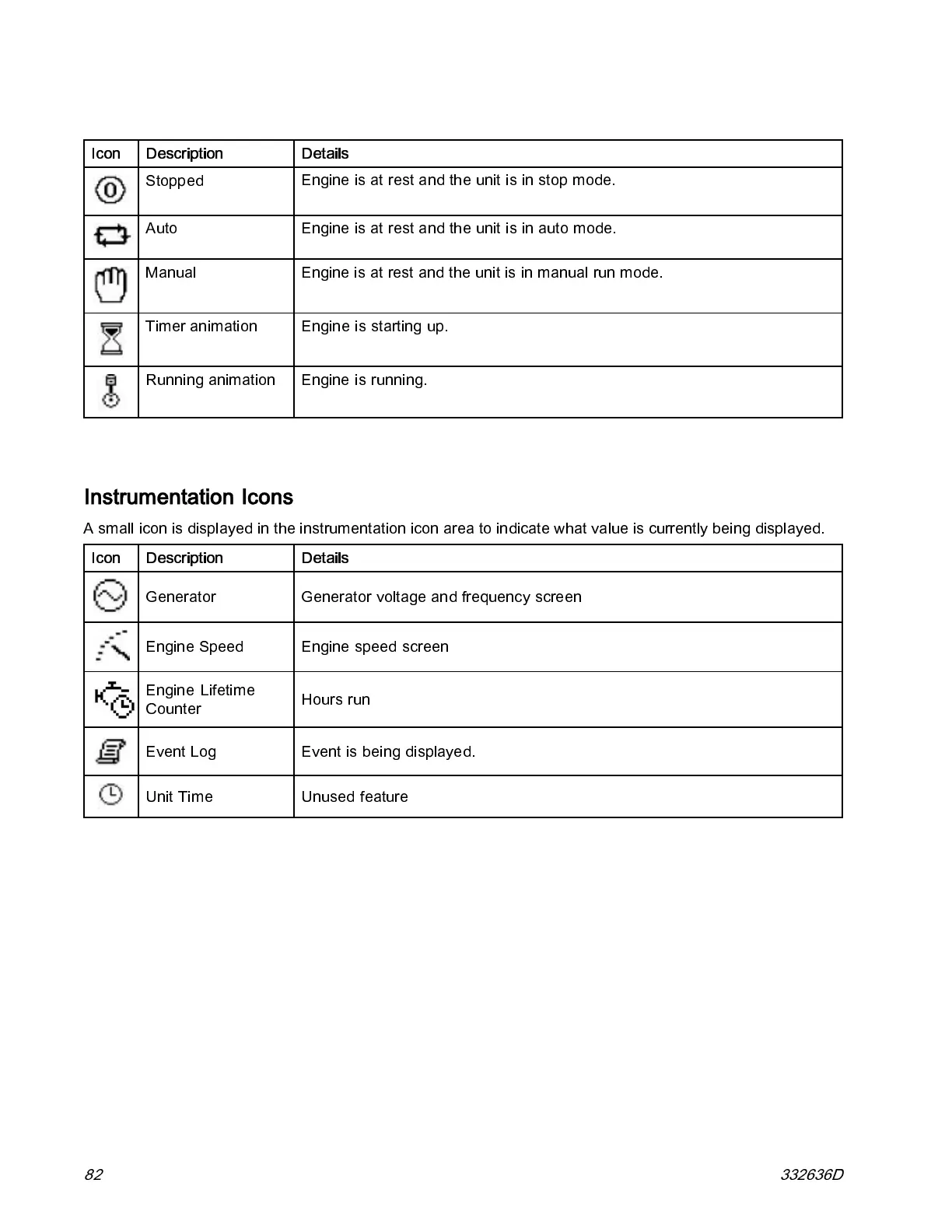

Appendix A: Engine Control Module
Mode Icons
Icon Description Details
Stopped
Engine is at rest and the unit is in stop mode.
Auto Engine is at rest and the unit is in auto mode.
Manual Engine is at rest a nd the unit is in manual run mode.
Timer animation Engine is starting up.
Running animation Engine is running .
Instrumentation Icons
A small icon is displayed in the instrumentation icon area to indicate what value is currently being displayed.
Icon Description Details
Generator Generator voltage and frequency screen
Engine Speed Engine speed screen
Engine Lifetime
Counter
Hours run
Event Log Event is being displayed.
Unit Time Unused feature
82 332636D
