Appendix A: Engine C ontrol M odule

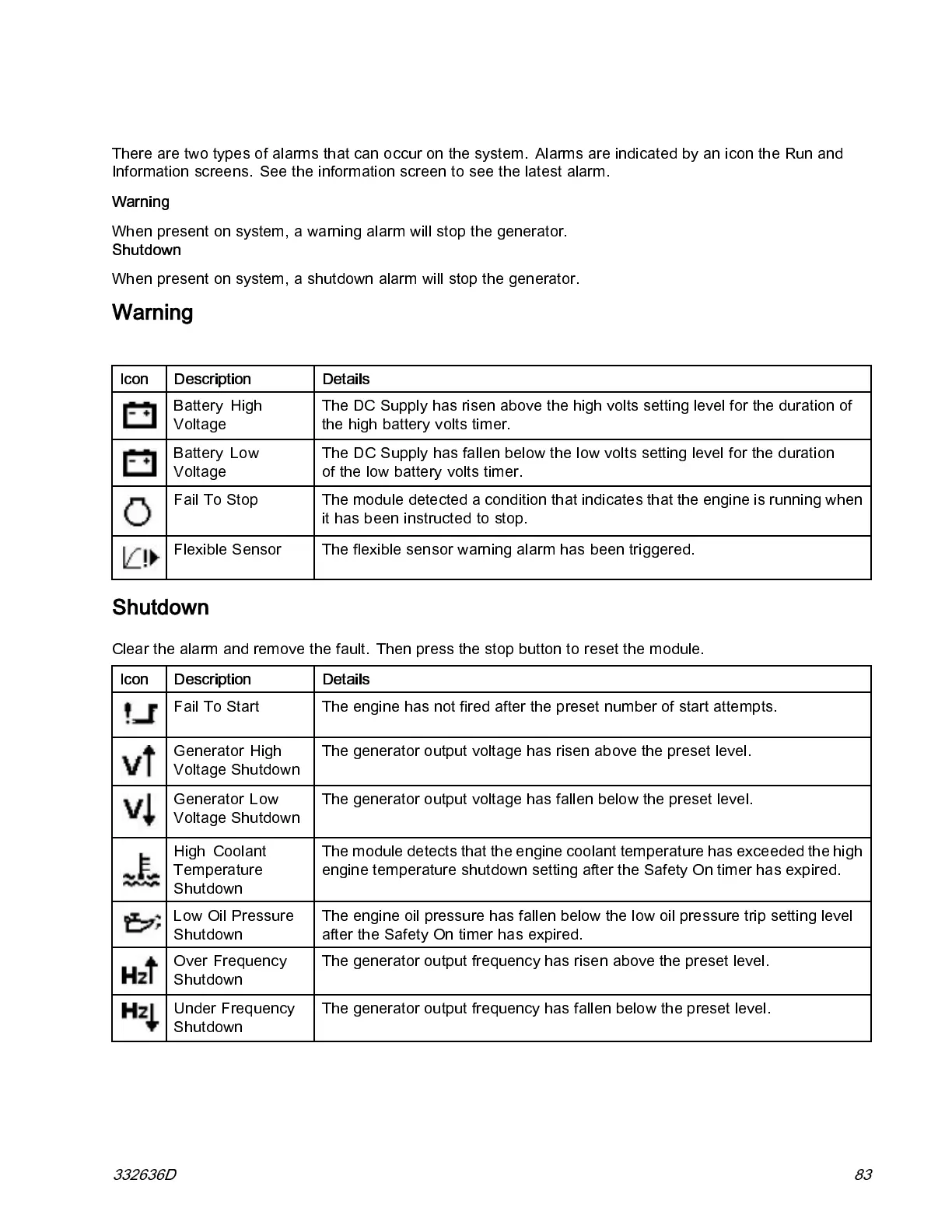

Alarms
There are two types of alarms that can occur on the system. Alarms are indicated by an icon the Run and
Information sc reens. See the information screen to see the latest alarm.
Warning
When present on system, a warning alarm will stop the generator.
Shutdown
When present on system, a shutdown alarm will stop the generator.
Warning
Icon Description Details
Battery High
Voltage
The DC Supply has risen above the high volts setting level for the duration of
the high battery volts timer.
Battery Low
Voltage
The DC Supply has fallen below the low volts setting level for the duration
of the low battery volts timer.
Fail To Stop The module detected a condition that indicates that the engine is running when
it has been instructed to stop.
Flexible Sensor The flexible sensor warning alarm has been triggered.
Shutdown
Clear the a larm and remove the fault. Then press the stop button to reset the module.
Icon Description Details
Fail To Start The engine has not fired after the preset number of start attempts.
Generator High
Voltage Shutdown
The generator output voltage has risen above the preset level.
Generator Low
Voltage Shutdown
The generator output voltage has fallen below the preset level.
High Coolan t
Temperature
Shutdown
The module detects that the engine coolant temperature has exceeded the high
engine temperature shutdown setting after the Safety On timer has expired.
Low Oil Pressure
Shutdown
The engine oil pressure has fallen below the low oil p ressure trip sett ing leve l
after the Safety On timer has expired.
Over Frequency
Shutdown
The generator output frequ ency has risen above the preset level.
Under Freq uency
Shutdown
The generator output frequency has fallen below the preset level .
