Graco Reactor H-40 Series Repair And Parts

Repair
38 312063Z
Heated Hose
NOTE: Refer to your heated hose manual for hose
replacement parts.
Check Hose Connectors
1. Turn main power OFF . Disconnect power
supply.
2. Relieve the pressure. See Pressure Relief
Procedure, page 26.
NOTE: Whip hose must be connected.
3. Disconnect hose connector (D) at Reactor, F
IG. 10.
4. Using an ohmmeter, check between the two
terminals of the connector (D). There should be
continuity.
5. If hose fails test, retest at each length of hose,
including whip hose, until failure is isolated.
Check FTS Cables
1. Turn main power OFF . Disconnect power
supply.
2. Relieve the pressure. See Pressure Relief
Procedure, page 26.
3. Disconnect FTS cable (F) at Reactor, F
IG. 10.
4. Test with ohmmeter between pins of cable
connector.
5. If cable fails test, retest at FTS, Fluid Temperature
Sensor (FTS), page 39.

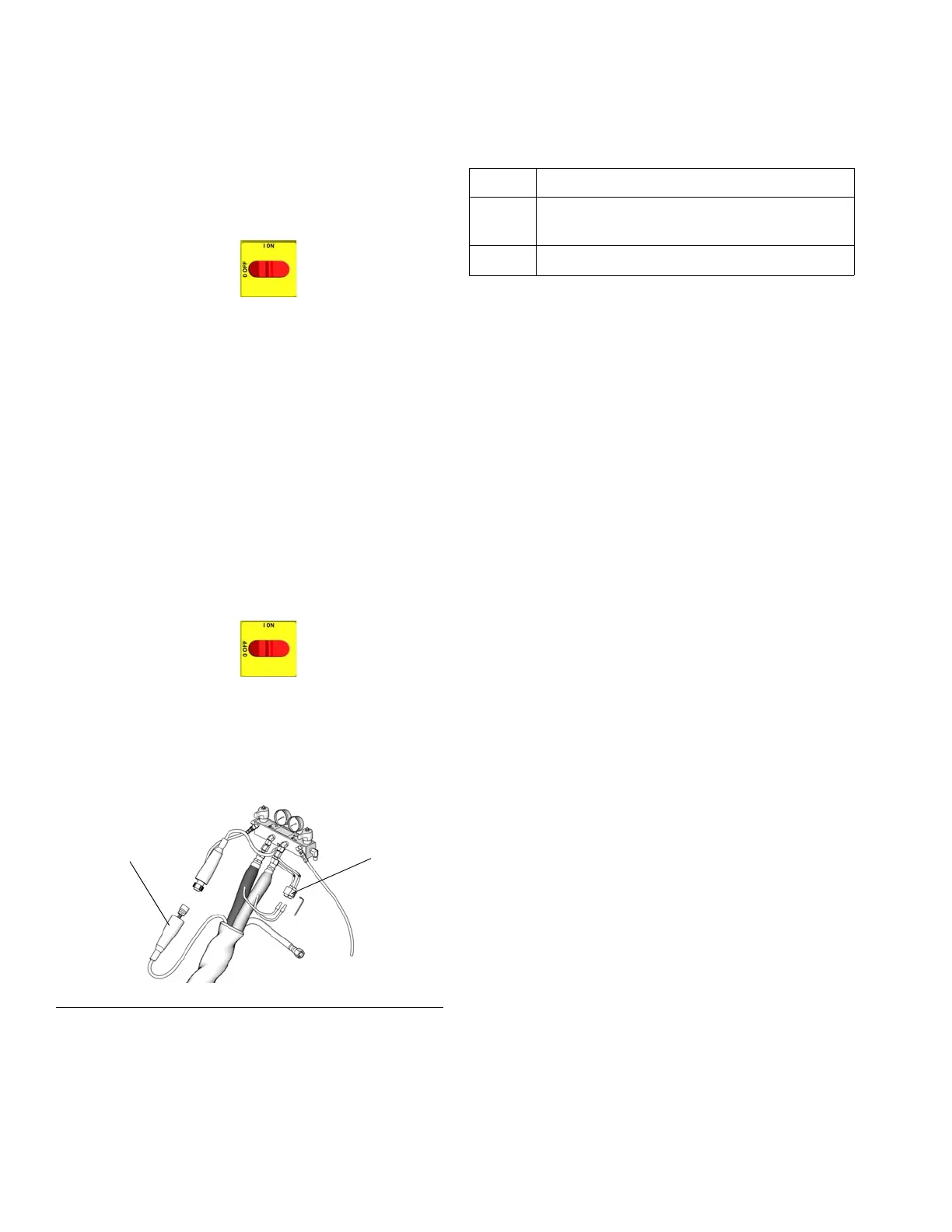

F
IG. 10 Heated Hose
ti9878a
F
D
Pins Result
1 to 2 approximately 35 ohms per 50 ft (15.2 m) of
hose, plus approximately 10 ohms for FTS
1 to 3 infinity
