Graco Reactor H-40 Series Repair And Parts

Parts
60 312063Z

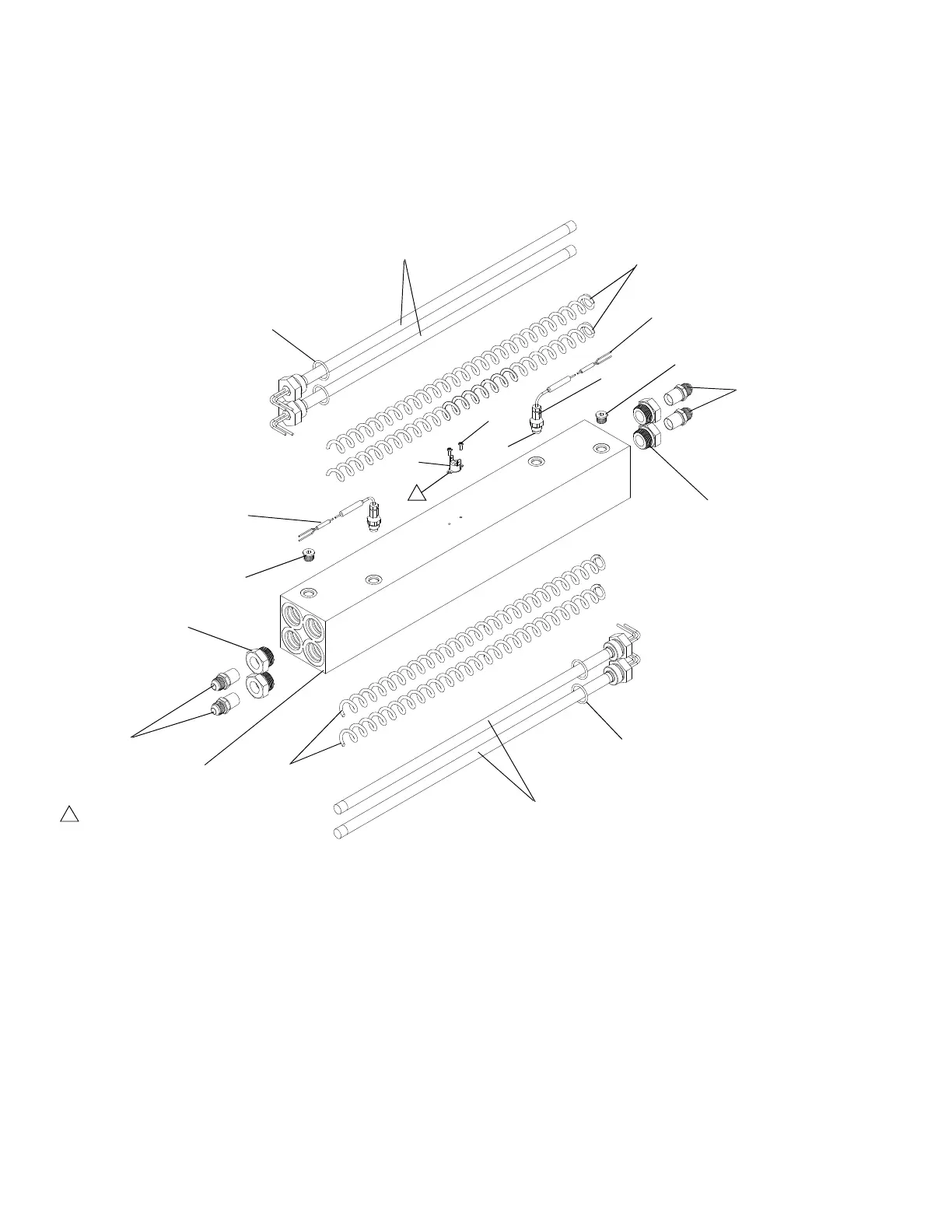

8.0 kW Dual Zone Heater
(One Per Machine)
Part 247815
303
305
301
302
302
303
304
306
307
309
307
308
310
311
310
309
r_247815_312063
Apply 110009 thermal heatsink compound.
1
1
313
304
313
Ref. Part Description Qty.
301 ---- HOUSING, heater
1
302 15H302 FITTING, reducer
4
303 121319 ADAPTER, 1/2 npt(m) x 1/2 in. JIC
4
304 15H304 PLUG
2
305 15H306 ADAPTER, thermocouple
2
306 120336 O-RING; fluoroelastomer
2
307 16A111 HEATER, immersion; 2000 W
4
308 15B137 SWITCH, over temperature
1
309 15B135 MIXER, immersion heater
4
310 117484 SENSOR
2
311 100518 SCREW, machine, pan hd
2
312 15M177 INSULATION; not shown
1
313 124132 O-RING
4
Ref. Part Description Qty.
