Graco Reactor H-40 Series Repair And Parts

Parts
62 312063Z

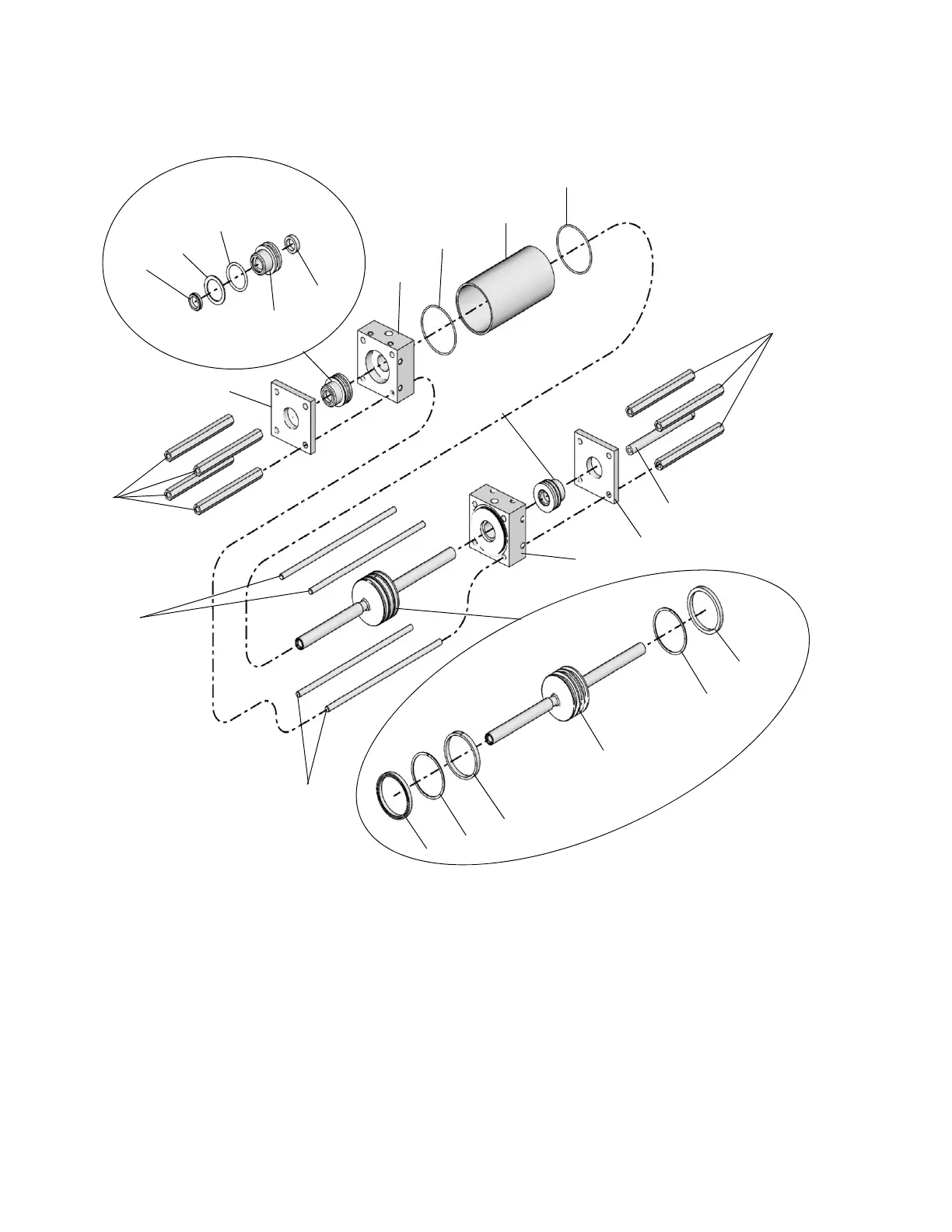

Hydraulic Cylinder
405
404
401
402
415
406
409
408
410
416
413
401
403
406
407
407
413
414
415
416
405
411
412
See Rod
Bushing
Detail
P
i
s
t
o
n
D
e
t
a
i
l
Rod Bushing Detail
ti7727a
Ref. Part Description Qty.
401 295029 PLATE, retainer
2
402 295030 CYLINDER
1
403 295031 BUSHING, rod
2
404 296642 PISTON
1
405 295640 O-RING
2
406 295641 U-CUP
2
407 295642 RING, backup
2
408 296643 RING, wear
1
409 158776 O-RING
2
410 295644 RING, backup
2
411 295645 WIPER, rod
2
412 296644 SEAL, shaft
2
413 295032 SPACER, proportioning pump
7
414 261861 SPACER, reverse switch
1
415 295034 ROD, tie
4
416 295035 BLOCK, port
2
