Graco Reactor H-40 Series Repair And Parts

Parts
312063Z 65

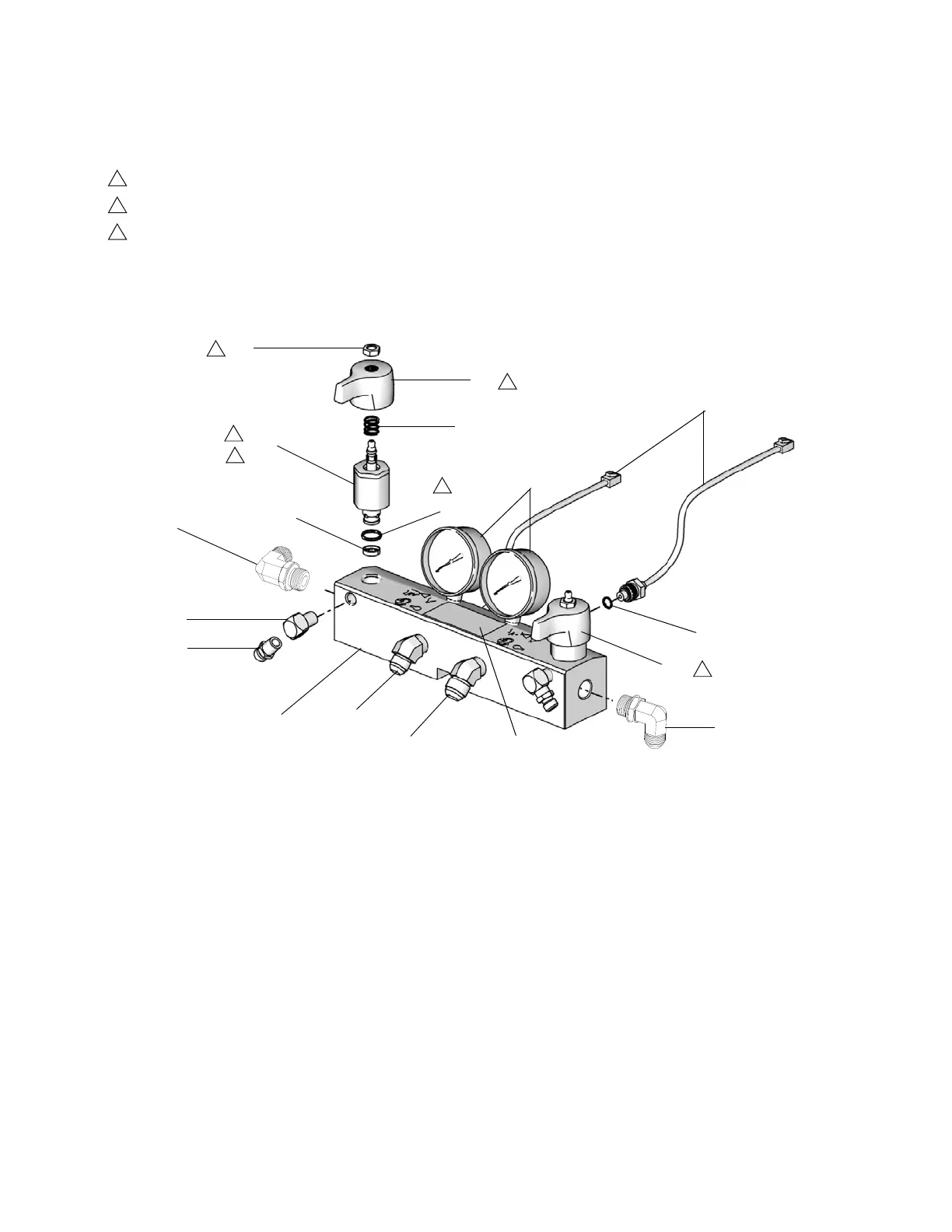

Fluid Manifold
 Replacement Warning labels, signs, tags, and cards
are available at no cost.
† Included in the following complete valve kits*:
ISO Valve Kit (left/red handle) 255149.
Resin Valve Kit (right/blue handle) 255150.
Valve Set Kit (both handles and grease gun) 255148.
* Complete valve kits also include thread sealant.
(Purchase kits separately).
TI9839b
Torque to 355-395 in-lb (40.1-44.6 N•m).
Apply sealant (113500) to threads.
Valve must be closed with handle position as shown on drawing.
** Apply PTFE tape or thread sealant to tapered threads.
1
2
3
708
706
718
702
703
705
714
715
704
701
712
713
717
714
707
716
1
2
3
2
3
3
702a
702b
Ref. Part Description Qty.
701 247837 MANIFOLD, fluid
1
702† 247824 VALVE, drain cartridge
2
702a† 158674 . O-RING
1
702b† 247779 . SEAL, seat, valve
1
703 102814 GAUGE, pressure, fluid
2
704 162453 FITTING, 1/4 npsm x 1/4 npt
2
705 24K999 TRANSDUCER, pressure, control
2
706 247788 HANDLE, red
1
707 247789 HANDLE, blue
1
708† 112309 NUT, hex, jam
2
712 117556 NIPPLE, #8 JIC x 1/2 npt
1
713 117557 NIPPLE, #10 JIC x 1/2 npt
1
714 121312 ELBOW, 90 degrees
2
715 100840 ELBOW, street; 1/4 npsm x 1/4
npt
2
716 111457 O-RING, PTFE
2
717 189285 LABEL, safety, burn hazard
1
718† 150829 SPRING, compression
2
Ref. Part Description Qty.
