Graco Reactor H-40 Series Repair And Parts

Parts

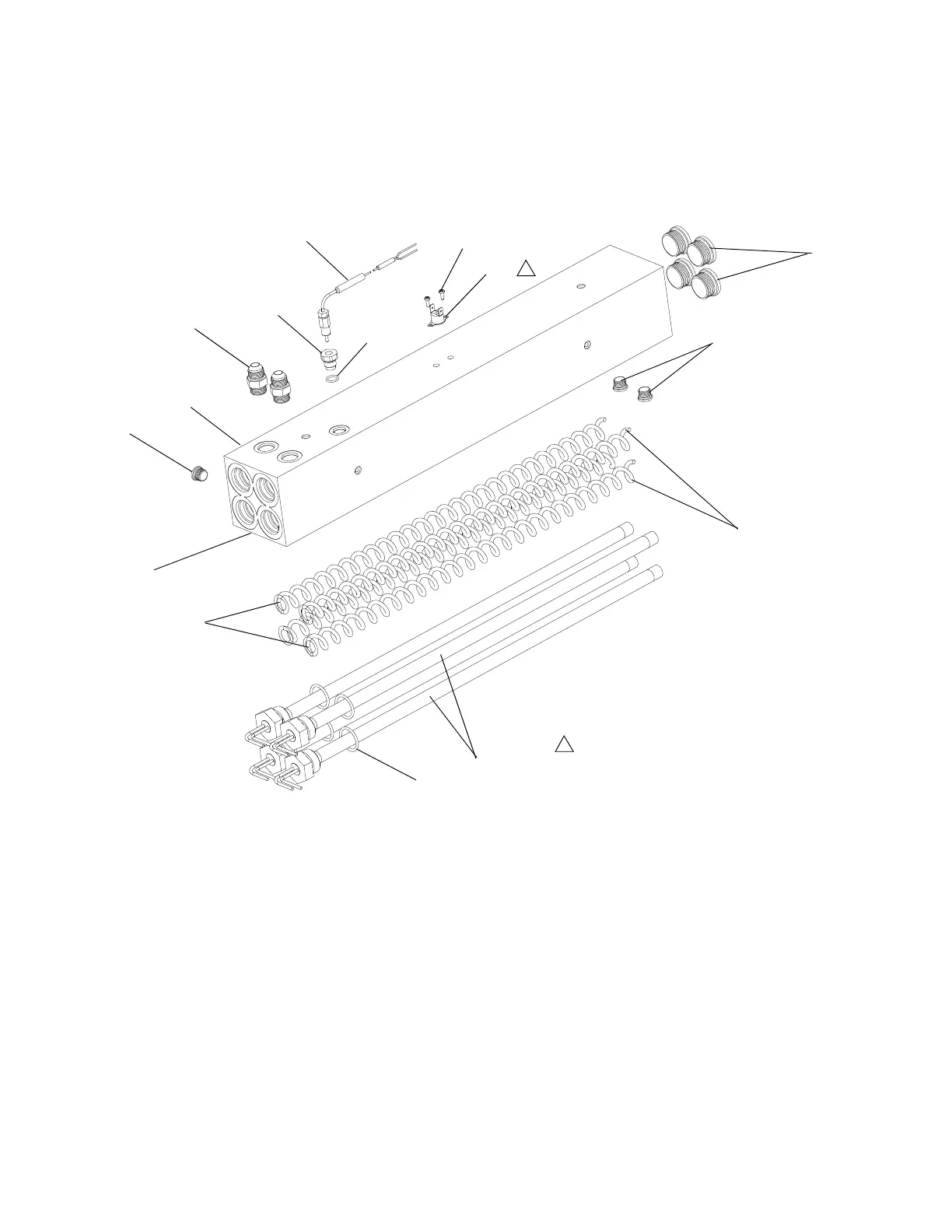

312063Z 59
10.2 kW and 6.0 kW Heaters
(Two Per Machine)
Parts 247833 and 247834
r_247833_312063
Apply 110009 thermal heatsink compound.
1
313
304
309
307
302
304
303
305
310
306
311
308
1
301
315
314
Ref. Part Description Qty.
301 ---- HOUSING, heater
1
303 121309 ADAPTER, 3/4 SAE-ORB x
1/2 in. JIC
2
304 15H304 PLUG
3
305 15H306 ADAPTER, thermocouple
1
306 120336 O-RING; fluoroelastomer
1
307 ---- HEATER, immersion
4
16A110 2550W; 10.4 kW heater only
16A112 1500 W; 6.0 kW heater only
308 15B137 SWITCH, overtemperature
1
309 15B135 MIXER, immersion heater
4
310 117484 SENSOR
1
311 100518 SCREW, machine, pan hd
2
313 15H305 PLUG, hollow
4
314 295607 PLUG; not shown
1
315 124132 O-RING
4
