Spraying
26 312062A

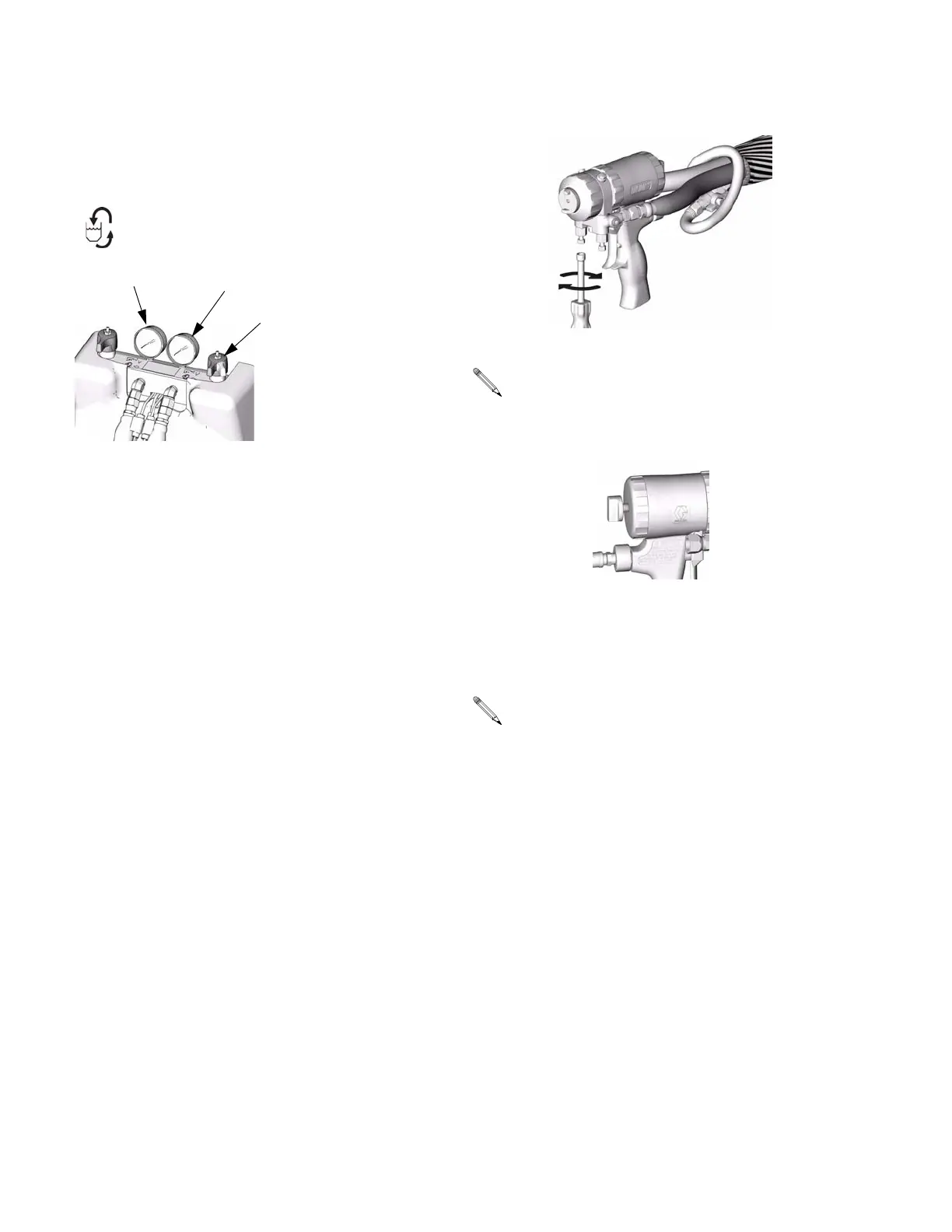

8. Check fluid pressure gauges (GA, GB) to ensure
proper pressure balance. If imbalanced, reduce
pressure of higher component by slightly turning
PRESSURE RELIEF/SPRAY valve for that compo-
nent toward PRESSURE RELIEF/CIRCULATION
, until gauges show balanced pressures.
9. Open gun fluid manifold valves A and B.
10. Disengage gun piston safety lock.
11. Test spray onto cardboard. Adjust pressure and
temperature to get desired results.
12. Equipment is ready to spray.
In this example, B side
pressure is higher, so
use the B side valve to
balance pressures.
ti9877a
GA
GB
On impingement guns, never open fluid manifold
valves or trigger gun if pressures are imbalanced.
If you stop spraying for a period of time, the unit will
enter standby (if enabled). See page 27.
ti2414a
ti2410a
