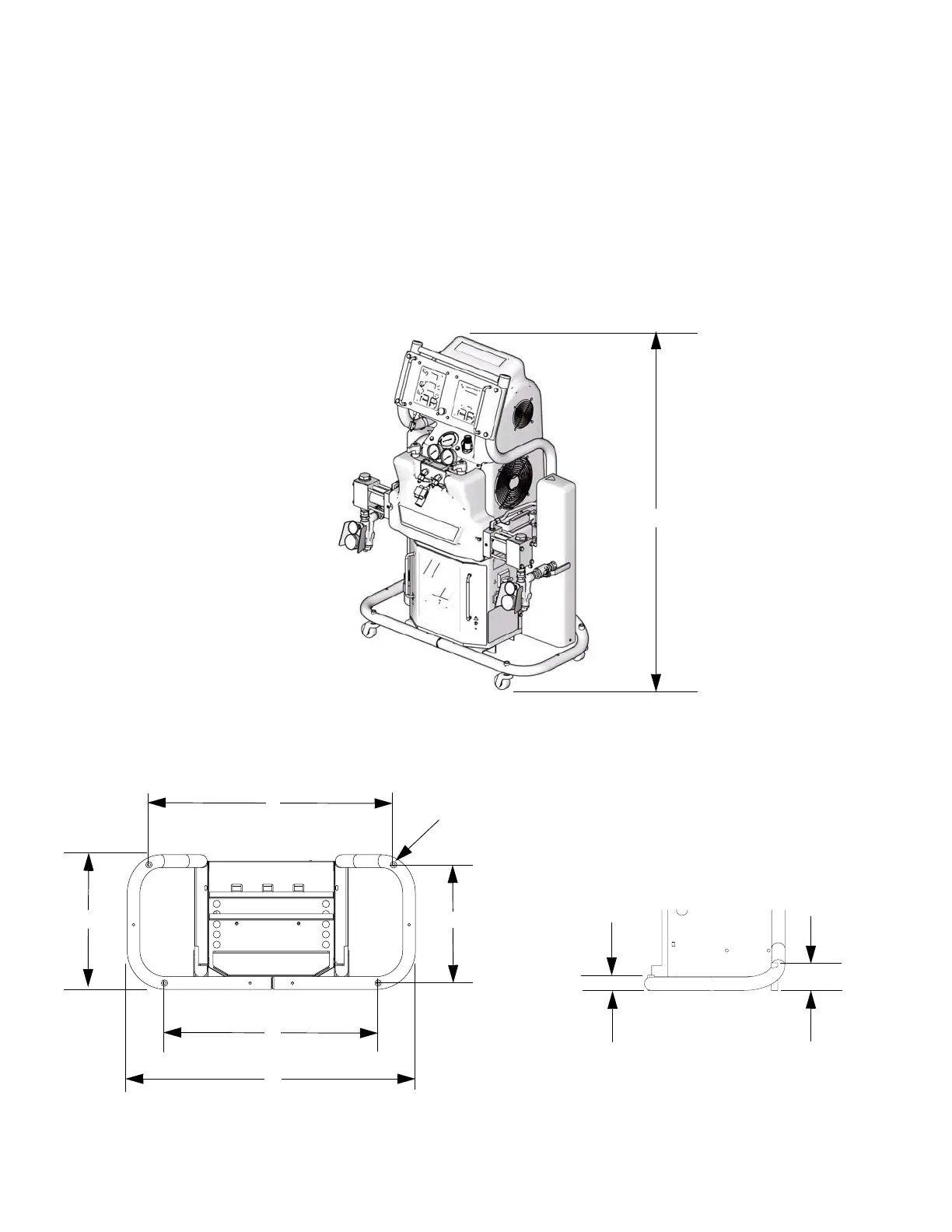

Dimensions
36 312062A
Dimensions
Dimension in. (mm)
A (height) 55.0 (1397)
B (width) 39.6 (1006)
C (depth) 18.5 (470)
D (front mounting holes) 29.34 (745)
E (rear mounting holes) 33.6 (853)
F (side mounting holes) 16.25 (413)
G (mounting post inner diameter) 0.44 (11)
H (front mounting post height) 2.0 (51)
J (rear mounting post height) 3.6 (92)
Dimension in. (mm)
A
C
B
D
E
F
G
H
J
Top View
Front of Machine
Rear of Machine
Side View
Detail of mounting post height,
to correctly size mounting bolts
TI9830a
ti7742a ti7743a
