Fluid Circulation
30 312062A

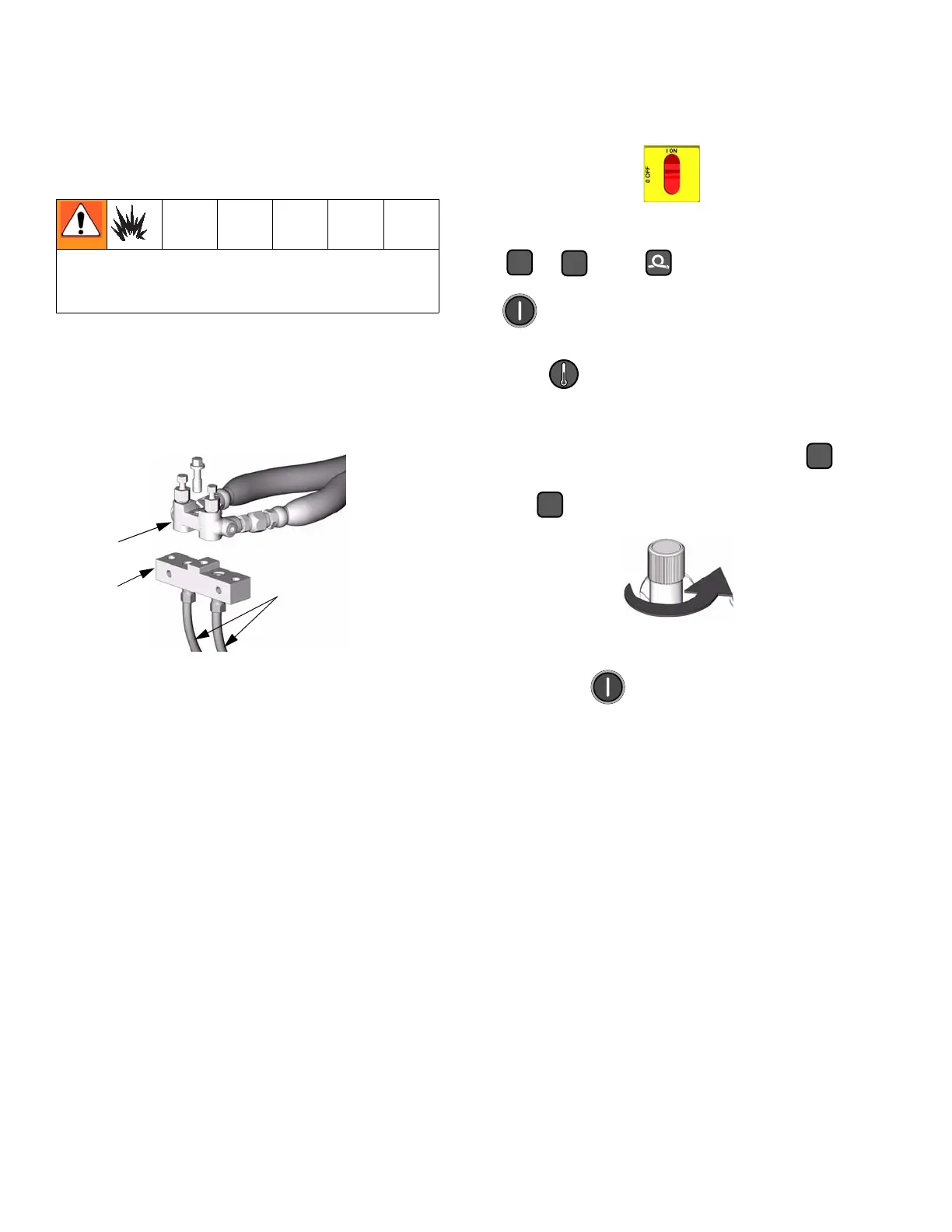

Circulation Through Gun
Manifold
Circulating fluid through the gun manifold allows rapid
preheating of hose.
1. Install gun fluid manifold (P) on Part 246362 acces-
sory circulation kit (CK). Connect high pressure cir-
culation lines (R) to circulation manifold.
2. Route circulation lines back to respective compo-
nent A or B supply drum. Use hoses rated at the
maximum working pressure of this equipment. See
Typical Installation, without circulation, page 9.
3. Follow Load fluid with feed pumps, page 22.
4. Turn main power ON .
5. Set temperature targets, see page 22. Turn on
, , and heat zones by pressing
.
6. Press to display actual temperatures.
7. Before starting motor, reduce hydraulic pressure to
the minimum required to circulate fluid until
and temperatures reach targets.
8. Press motor to start motor and pumps. Cir-
culate fluid at lowest possible pressure until temper-
atures reach targets.
Do not circulate fluid containing a blowing agent with-
out consulting with your material supplier regarding
fluid temperature limits.
R
CK
P
ti2767a
A
B
A
B
-
ti7732a
