Graco Reactor H-40 Series User Manual

Spraying
312062A 25
Spraying

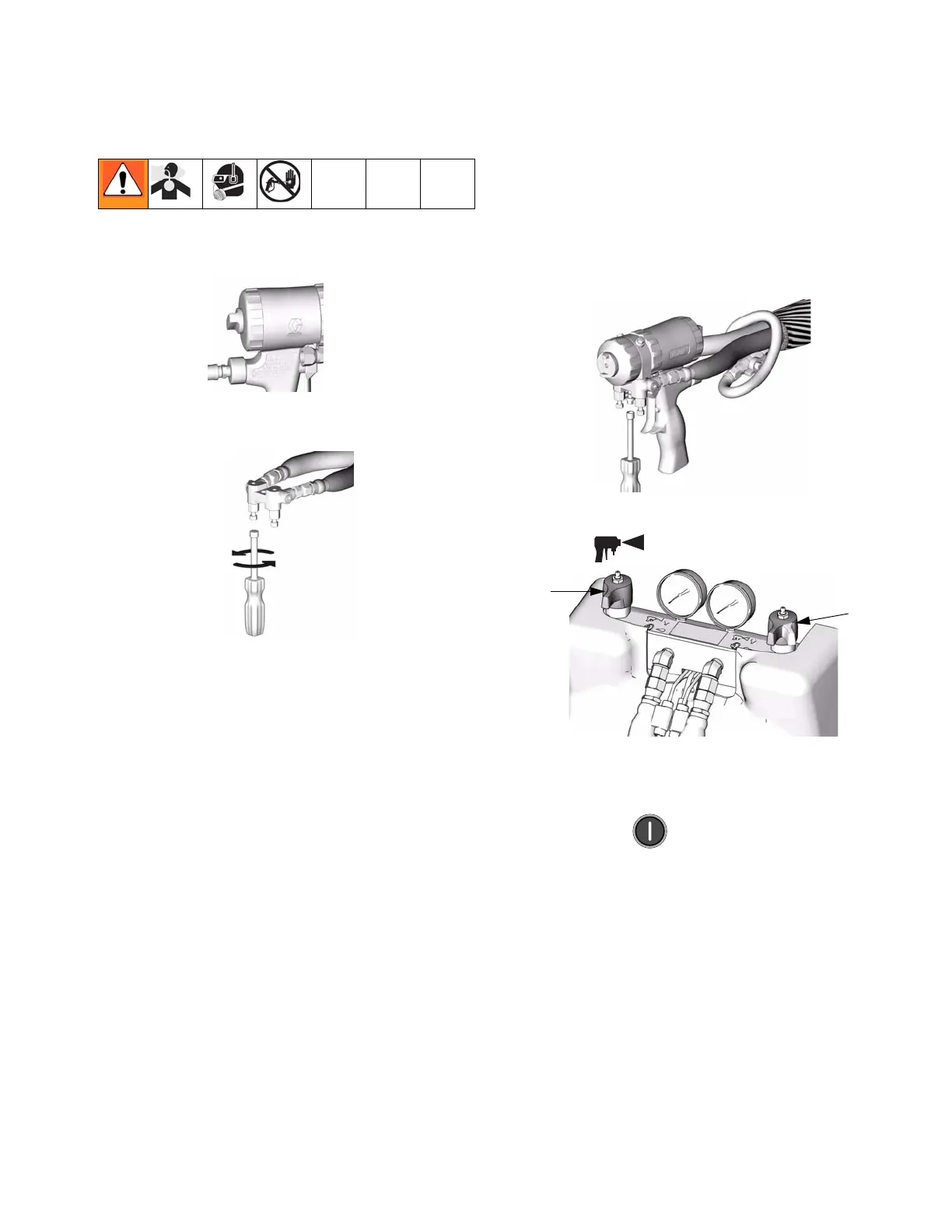

1. Engage gun piston safety lock.
2. Close gun fluid manifold valves A and B.
3. Attach gun fluid manifold. Connect gun air line.
Open air line valve.
4. Set PRESSURE RELIEF/SPRAY valves (SA, SB) to
SPRAY .
5. Check that heat zones are on and temperatures are
on target, page 22.
6. Press motor to start motor and pumps.
7. Check fluid pressure display and adjust as neces-
sary, page 25.
ti2409a
ti2728a
ti2543a
ti9877a
SA
SB
