Typical Installation
10 311882U
Typical Installation for Lubrication Applications
Key:
AA Pump Air Regulator
AB Air Line Lubricator
AC Air Line Filter
AD Bleed-Type Master Air Valve (required, for pump)
AE Fluid Drain Valve (required)
AF Bung Adapter
AG Grounded Air Hose
AH Grounded Fluid Hose
AJ Pump Fluid Inlet
AK 1/4 npt(f) Pump Air Inlet
AL 3/4 npt(f) Pump Fluid Outlet

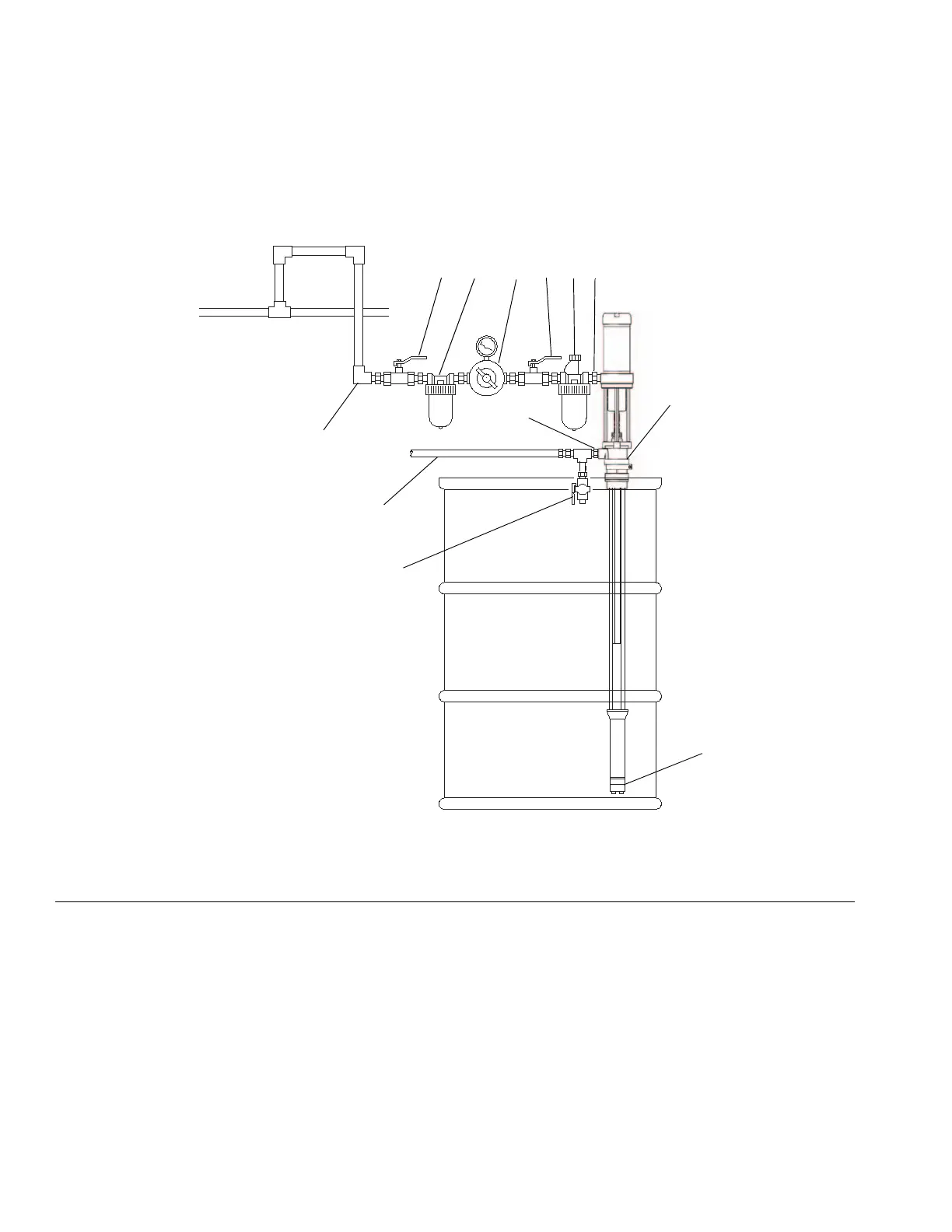

FIG. 3: Typical Installation for Lubrication Applications
AA AB
AC
AD
AE
AF
AH
J
AJ
CE
AK
AG
01349
AD
