Setup
12 311882U
Setup
1. Apply thread sealant to the male threads of the air
needle valve (48) and the quick disconnect fitting
(49) and install. See F
IG. 4
2. Apply thread sealant to the male outlet fitting (not
supplied) and insert into the outlet port. See F
IG. 5.
3. Use labels (70) provided to identify the appropriate
pump for your material. See F
IG. 5.
4. Lubricate the bung adapter inside diameter and
mounting threads. Install supplied handles and
tighten the jam nuts. Install supplied handles and
tighten the jam nuts. Ensure the gasket is in place
and screw the bung adapter (51) securely into the
bunghole of the drum. Insert the pump through the
adapter and lock it in place. See F
IG. 7.

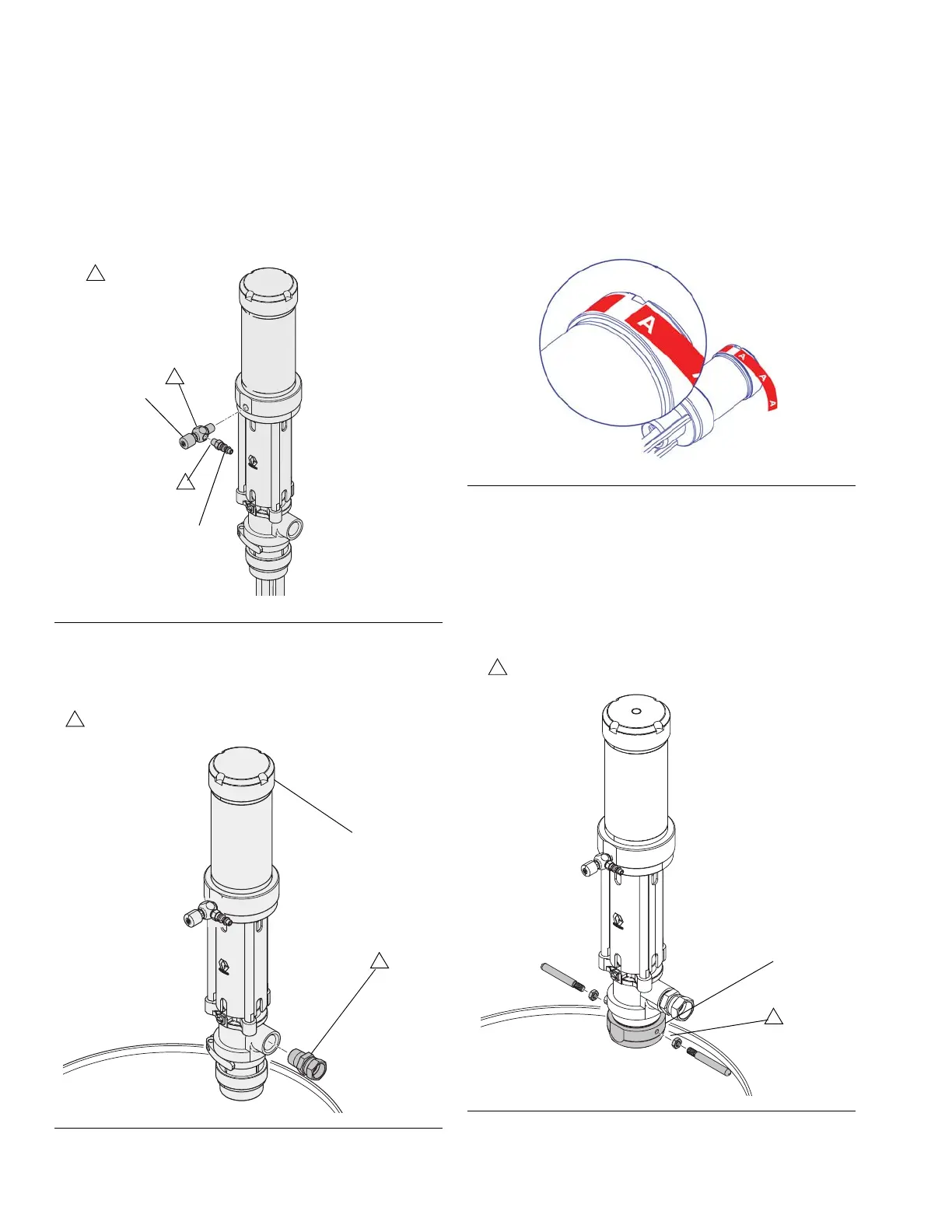

FIG. 4
FIG. 5
48
49
1
Apply thread sealant
FIG. 6
FIG. 7
