45:1 Solvent Flush Pump Kit 262393 (optional)
Air Controls

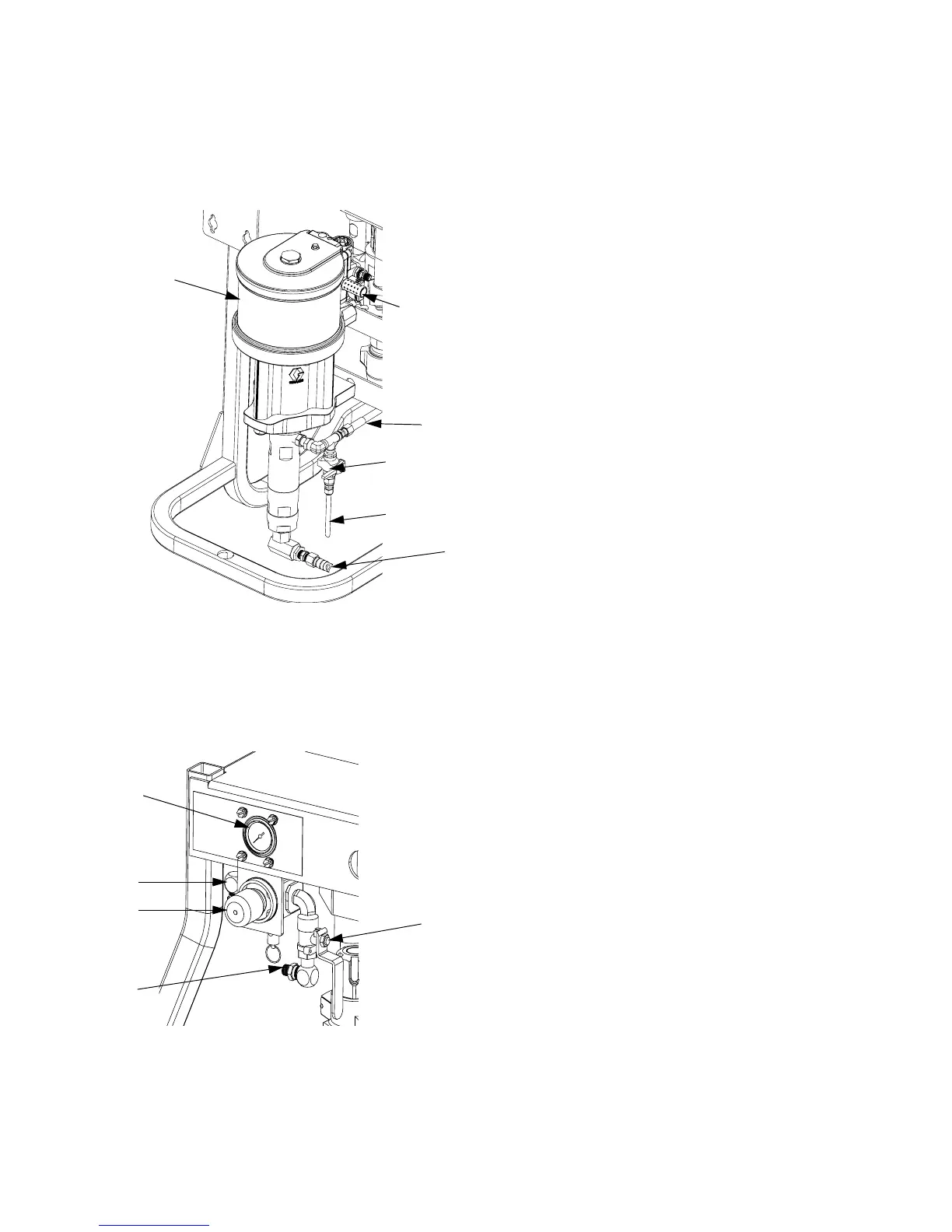

FIG. 4: Solvent Flush Pump Kit
Key:
BA Solvent flush pump (Merkur Pump)
BB Fluid Inlet
BD Muffler
BE Prime/Flush/Sample valve
BF Fluid Outlet Hose
BG Circulation hose
BA
BB (suction hose not shown)
BD
BG
BF
r_571100_3a0420a_4a-2
BE
FIG. 5: Solvent Flush Pump Kit Air Controls
Key:
DA Solvent Pump Air Shutoff Valve (Relieving)
DB Solvent Pump Air Regulator
DC Solvent Pump Air Regulator Gauge
DD Air Outlet
DE Air Inlet
Included with optional solvent flush pump kit 262393.
DC
DB
DA
r_571101_3a0420a_5a-2
DD
DE
