330 EXPRESS
8–3
• Accessory
Switches and breakers labeled “ACC” are blank. They may be used for non-factory installed
accessories. A circuit breaker located above this switch provides over-current protection for
this circuit. See “Accessory Wiring Color – Fuse/Breaker Sizes” on page 6–10 for
recommended breaker amperages. Switch labels are available from your dealer for non-
factory installed options.

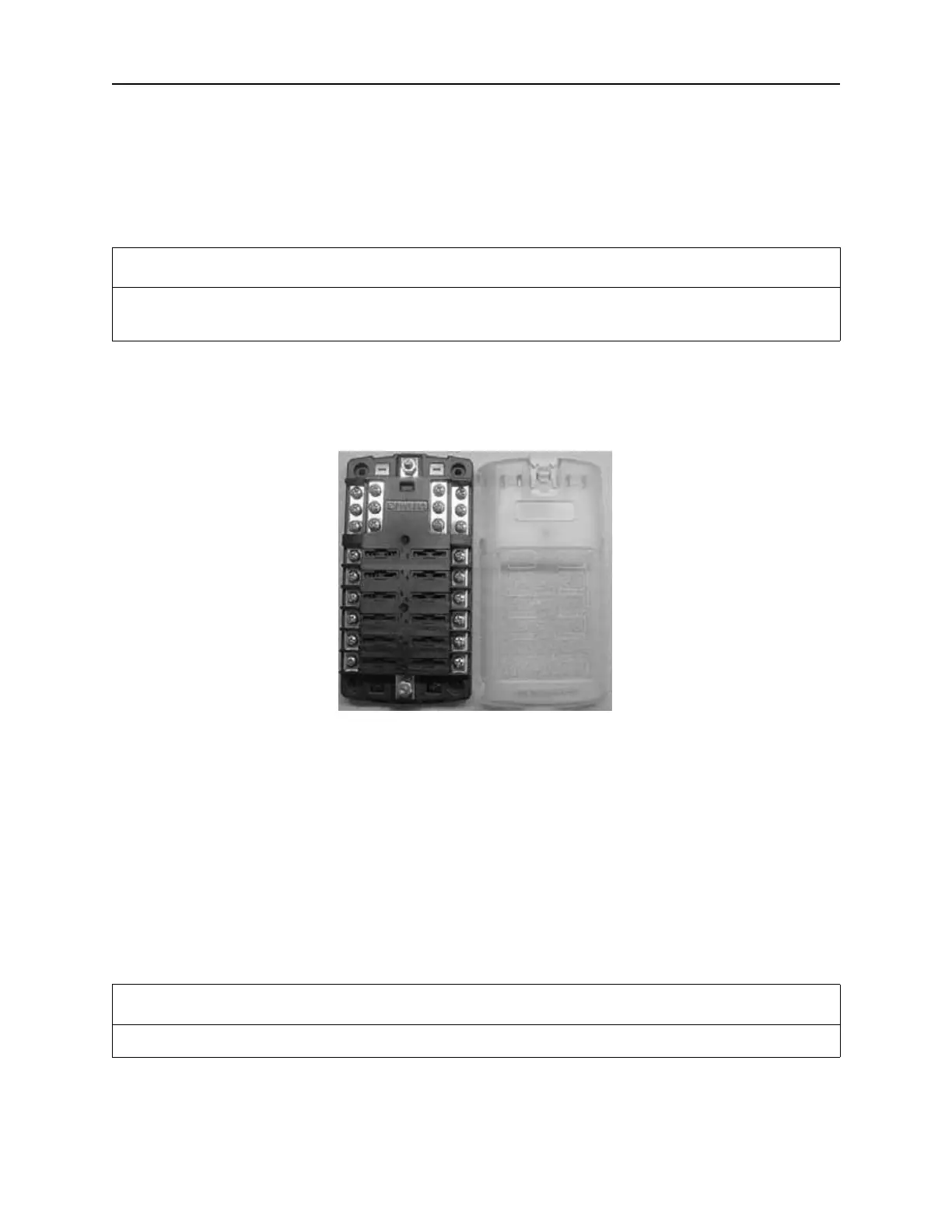

AUXILIARY FUSE PANEL
The auxiliary fuse panel located at the center helm station behind an access door provides a
source of power for electronics and additional accessories. Your model utilizes the automotive
type fuses.
MAIN CIRCUIT BREAKER
There is a 50 amp circuit breaker located in the panel beneath the battery select switches. This
is the main breaker protecting the wiring supplying power to the accessory switch panel. This
breaker may be manually tripped by moving the arm to the off position. If this breaker is tripped,
moving the arm back to the "on" position will reset it.
ACCESSORY OUTLET - 12 VOLT
Three 12-volt outlets are installed on your 330. One is in the cabin dinette area. Another is on
the starboard side of the helm facing outboard. The third is in the port fire extinguisher holder on
the vertical surface in front of the cupholder. These outlets provide easily accessible power
supplies for accessories such as cellular phones and spotlights.
N O T I C E
Use anti-corrosion spray on the back of panels and on exposed wires to prevent the rust or
corrosion that could lead to an electrical system failure.
N O T I C E
These outlets cannot be used with a cigarette lighter.
