Grady-White 330 Express - Air Conditioning Layout

330 EXPRESS
8–25

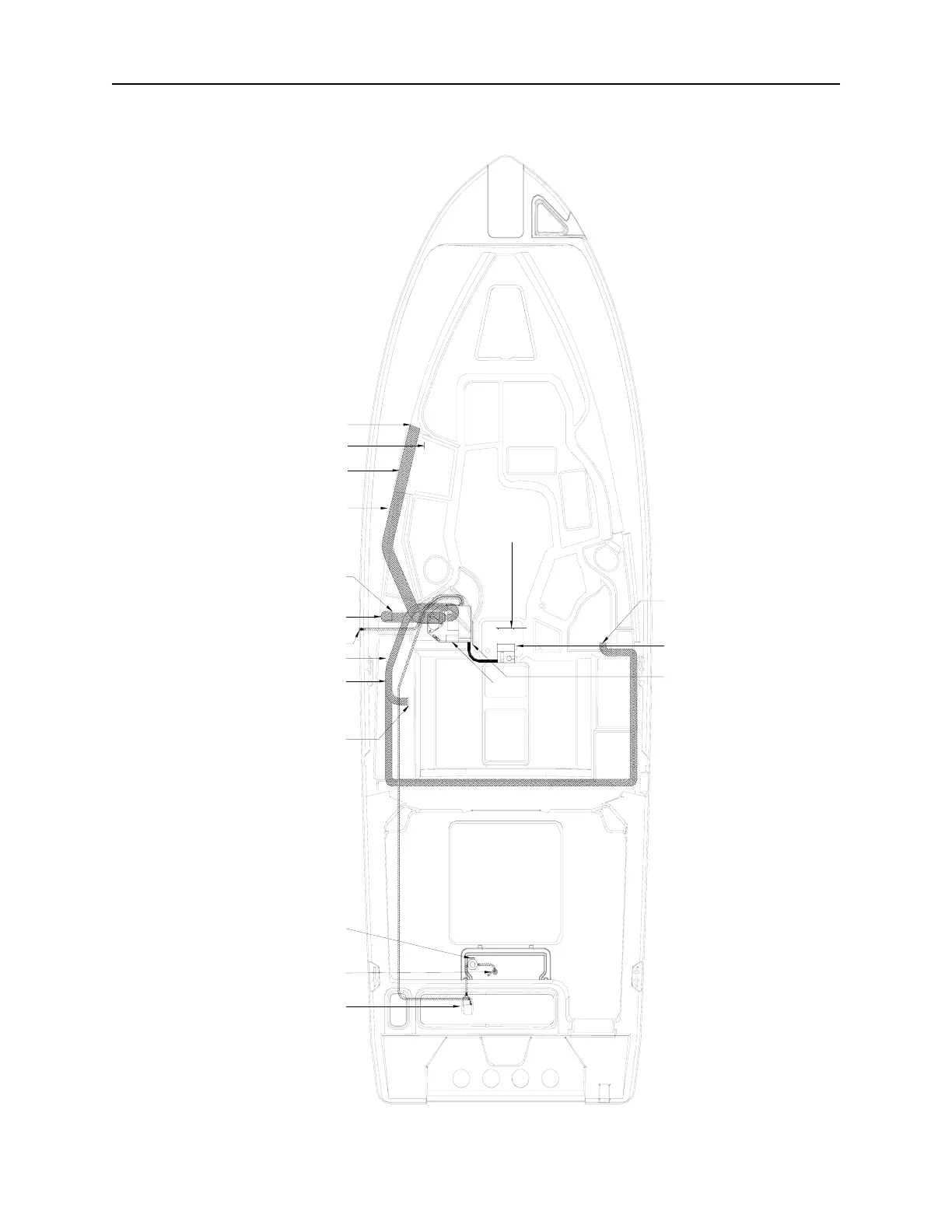

Air Conditioning Layout
Air Control Panel
AC Water Pump
AC Intake Seacock
AC Intake Strainer
OUT
IN
10,000 B T U A ir
Conditioning Unit
Distribution
Unit On Top
5" Insulated Duct
5" x 10" Teak Grill
AC/DC Panel
4" x 8" Teak Grill
4" Insulated Duct
AC Drain
3" Insulated Duct
10" x 12" Return
Teak Grill
Air Control
Panel Harness
Condensation Drain
to Sump Pump
4" x 4" Teak Grill
3" Y Transition
4" Round Vent
