Grady-White 330 Express - Dockside Wiring

330 EXPRESS
8–37

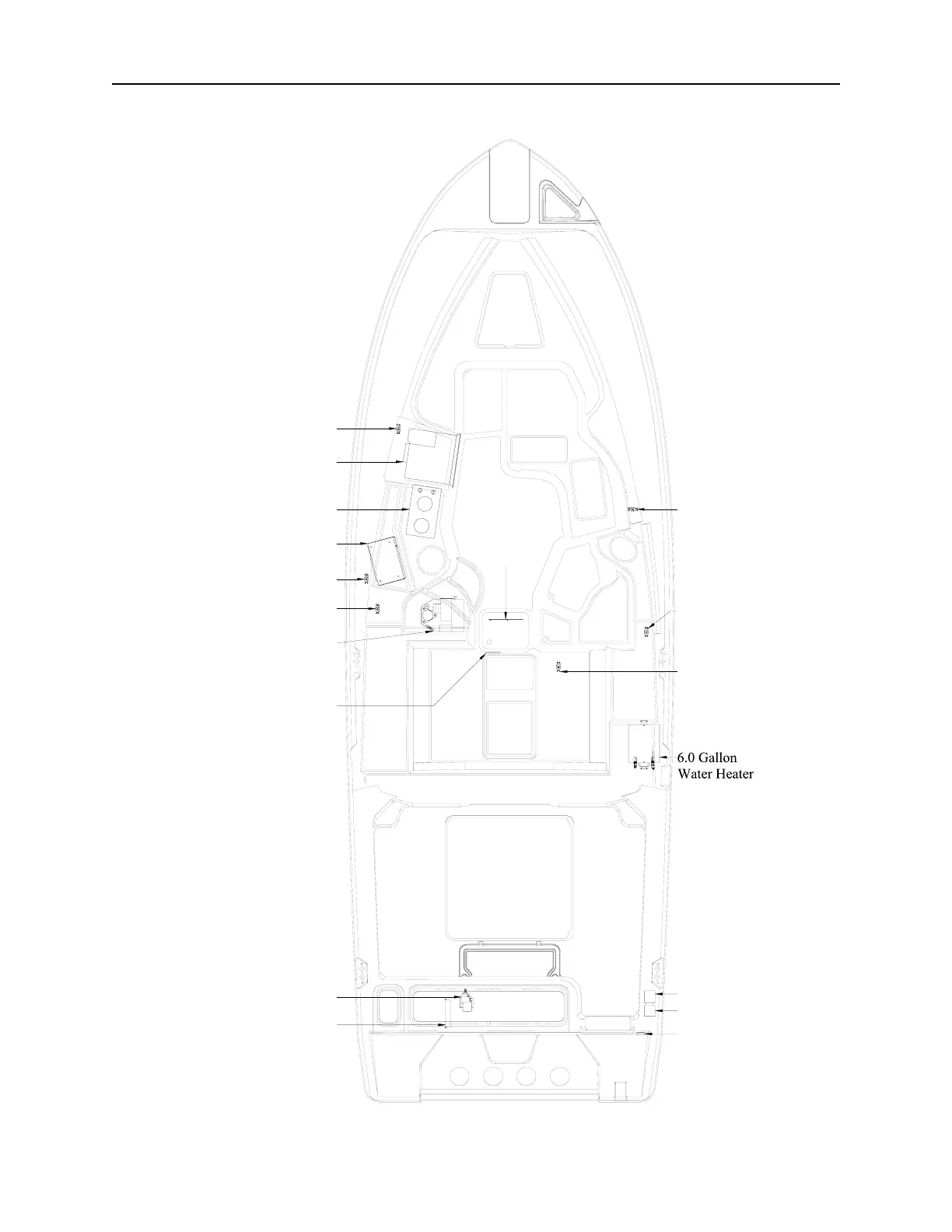

Dockside Wiring
Battery Charger
Galvanic Isolator
30A Main Breaker
30A Inlet
Air Condition Pump
Head Outlet
(Ground Fault)
Dinette Outlet
(feeds galley outlet)
Helm Outlet
(Ground Fault)
Dual Burner
Glass Top Stove
AC/DC Refrigerator
Refrigerator Outlet
(for refrigerator only)
Microwave
Microwave Outlet
(for microwave only)
Galley Outlet
AC/DC
Panel
10,000 BTU Air
Conditioning Unit
DC Negative Buss Bar
(10 ga green from AC
harness attached)
Wire Sizes:
Main Shore Inlet: 10 AWG/3
Microwave: 14 AWG/3
Battery Charger: 16 AWG/3
Water Heater: 14 AWG/3
Outlets: 14 AWG/3
Stove: 12 AWG/3
Air Conditioner: 12 AWG/3
Generator Main: 10 AWG/3
Refrigerator: 16 AWG/3
