Grady-White 330 Express - Helm Air Conditioning Layout

330 EXPRESS
8–26

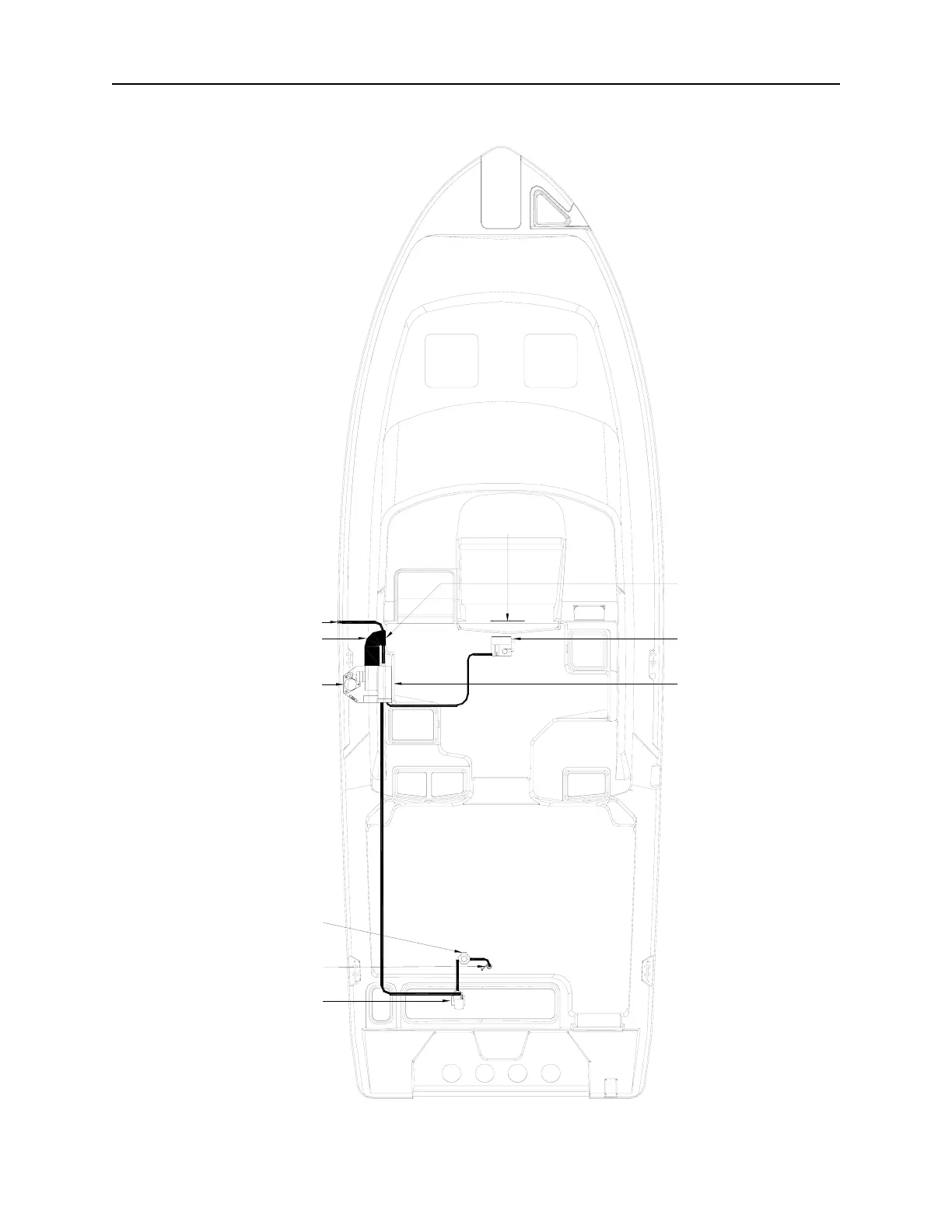

Helm Air Conditioning Layout
AC Water Pump
AC Intake Seacock
AC Intake Strainer
OUT
IN
AC/DC Panel
Condensation Drain
to Sump Pump
14" x 10" Return
Air Grill
10" 6" Vent
6" Insulated Duct
AC Drain
12,000 BTU Air
Conditioning Unit
Distribution
Unit On Top
