Grady-White 330 Express - Volt DC Distribution Diagram

330 EXPRESS
8–43

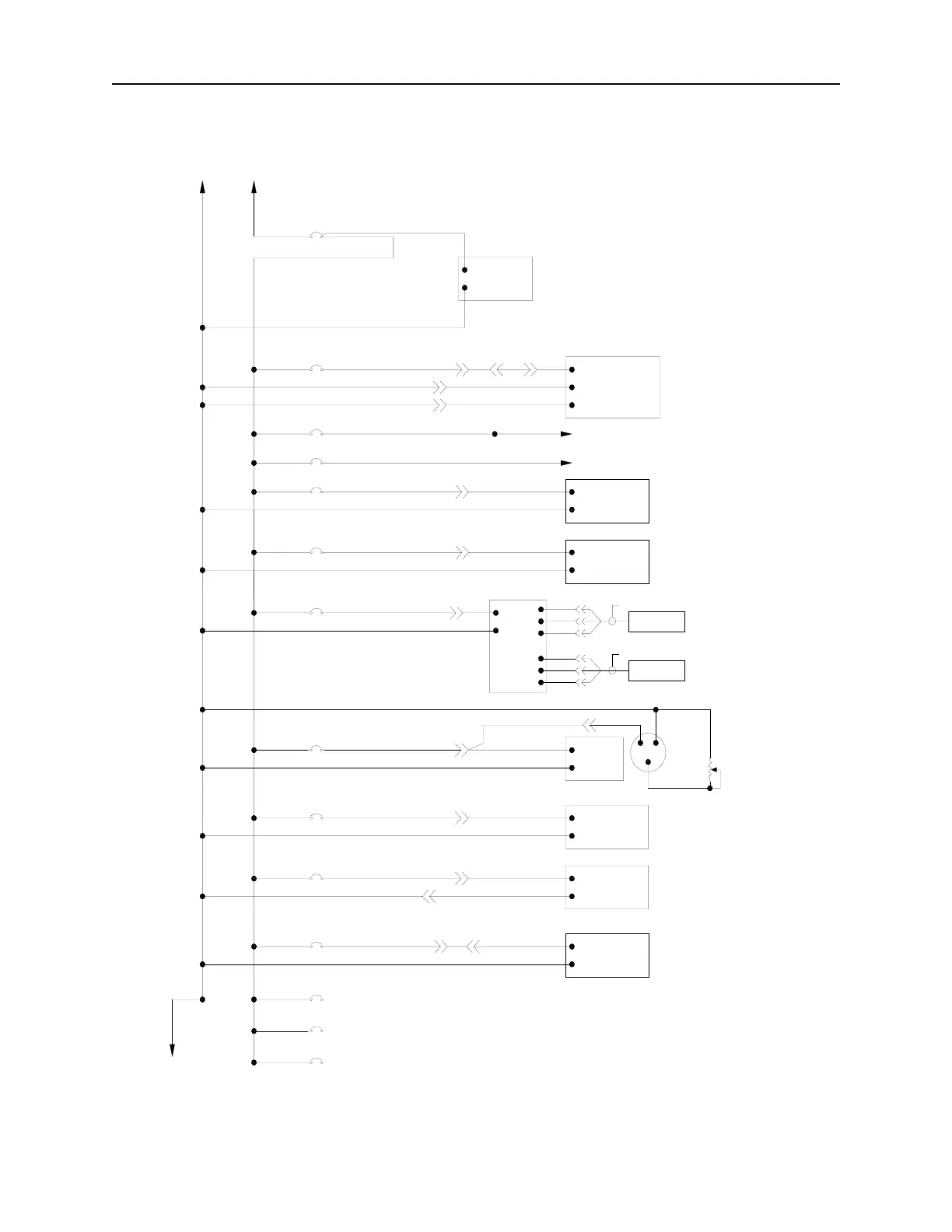

12 Volt DC Distribution Diagram
DC MAIN
50A (CB)
30A (CB)
COCKPIT
SWITCH
PANEL
6 GA R
6 GA R
DC SS ELECT.
ACCESSORY
SWITCH PANELS
(SEE DWGS
330-DC-3 &
330-DC-10)
(+)
(HELM -)
CABIN
LIGHTS
SEE DWG
330-DC-4
10 GA ORG
10 GA BLK
10 GA BLU/GRN
SEE DWG
330-DC-1-1
LINE 10
16 GA R
STEREO
P5
NOTES:
1) SEE LAYOUT DRAWINGS FOR LOCATIONS OF COMPONENTS
SUMP PUMP
(+)
(-)
SUMP PUMP
16 GA BRN/ORG
P2
10 GA RED/GRN
(-)
(+)
TV/DVD 300W
INVERTER
(SEE DWG
330-TV-1)
TV/DVD
RECPT & PLUG
TV
3C POWER CABLE
3C POWER CABLE
DVD
RECPT & PLUG
P2
FRESH
WATER
PUMP
(+)
(-)
FRESH
WATER PUMP
12 GA ORG/BLU
ACCESSORY
1.
2.
4.
5.
6.
7.
LINE
NO.
S
(+) (-)
16 GA ORG/BLU
16 GA BLK
16 GA WHT/BLU
16 GA BLK
LIGHTS TB
12 GA ORG/BLU
3.
SEE DWGS
330-STO-1 &
330-STO-2
20A (CB)
10A (CB)
2.5A (CB)
10A (CB)
15A (CB)
10A (CB)
TANK
LEVEL
GAUGE
PNL. POS. BUS (BEHIND AC/DC PANEL)
SEE DWG
330-DC-1-1
LINE 2
MAIN ACCESSORY DC NEG. BUS
P2 P6
P12
10 GA BLK
15A (CB)
10 GA ORG/Y
REFRIGERATOR
(-)
(+)
REFRIGERATOR
10 GA BLK
P2
P2
10 GA BLK
P5
12 GA BLK
TANK
SENDER
10A (CB)
14 GA ORG/R
P2
VACUFLUSH HEAD
(SEE VACUFLUSH
OWNER'S MANUAL
FOR SYSTEM
WIRING)
(+)
(-)
VACUFLUSH
HEAD
14 GA ORG/R
10 GA BLK
(-)
(+)
10A (CB)
14 GA ORG/GRY14 GA ORG/GRY
TANK
DISCHARGE
P2
TANK DISCHARGE
(SEE VACUFLUSH
OWNER'S
MANUAL FOR
SYSTEM WIRING)
P1
14 GA BLK #310 GA BLK
10 GA ORG/Y
16 GA BRN/ORG
10 GA GN
SEE DWG
330-AC-1
8.
9.
10.
11.
12.
14.
(-)
(+)
VOLTAGE
SUPPRESSOR
16 GA R
16 GA BLK
ACCESSORY
10A (CB)
ACCESSORY
10A (CB)
4A (CB)
10 GA BRN/YEL
P2
BILGE
BLOWER
(+)
(-)
BLOWER
10 GA BRN/YEL
10 GA BLK
13.
15.
16.
16 GA BLK
(C/PIT -)
16 GA BLK
P14
16 GA BLK
P5
330-DC-2
