Grady-White 330 Express - Refrigerator;Freezer Boxes Layout

330 EXPRESS
8–27

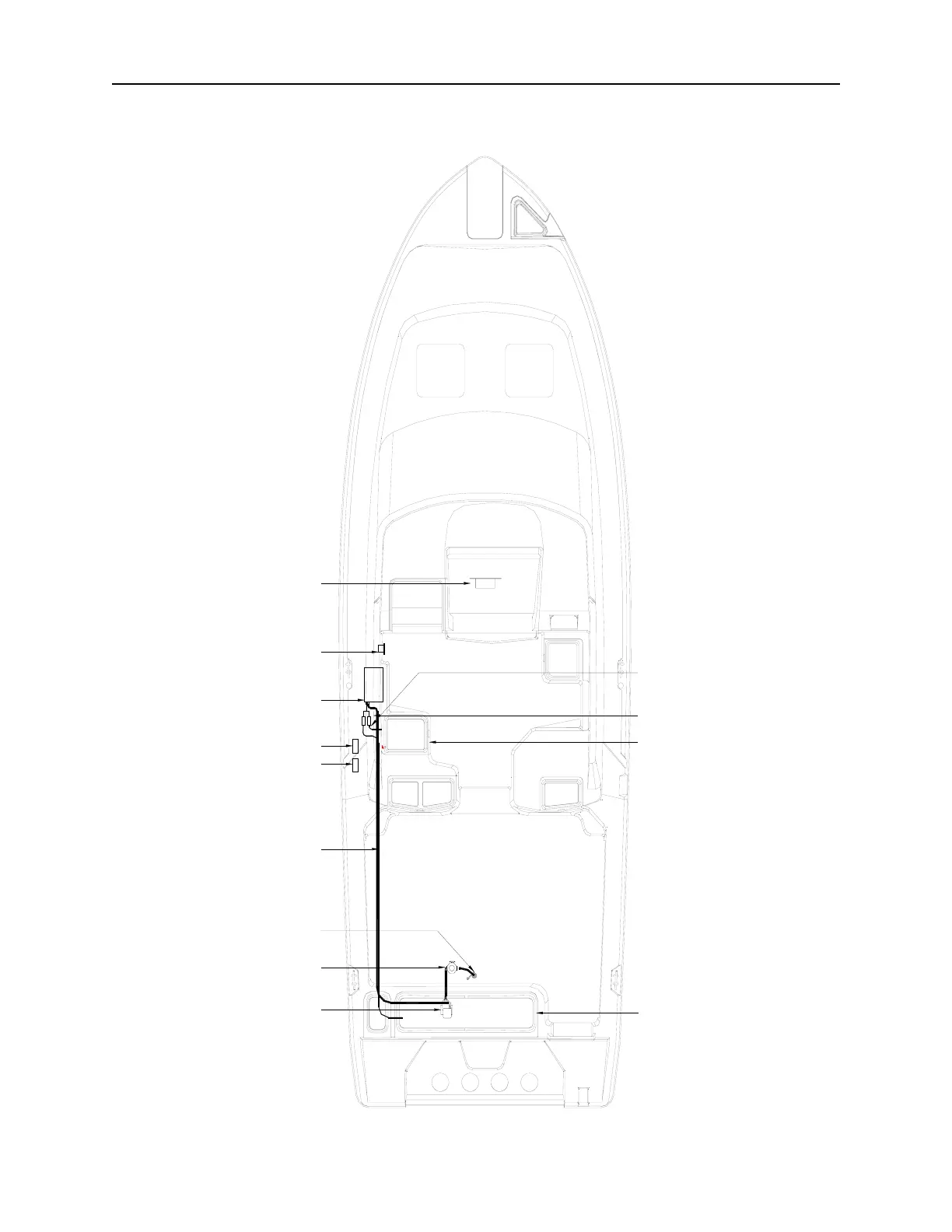

Refrigerator/Freezer Boxes Layout
OUT
IN
Coolers Condensing Unit
(solenoid valves, relays,
& unit accessed through
panel in port aft berth wall)
Pump Relay (PR)
Refrigeration Relay (RR)
Cockpit Coolers Control Panel
Coolers Solenoid
Valves
Helm Cooler
Cooled Aft
Fishbox
Raw Water Intake Strainer
Raw Water Intake Seacock
Raw Water Pump
Raw Water Supply Hose,
1/4" Liquid Line, & 3/8"
Insulated Suction Line
1/4" Liquid Line
& 3/8" Insulated
Suction Line
AC/DC Panel
