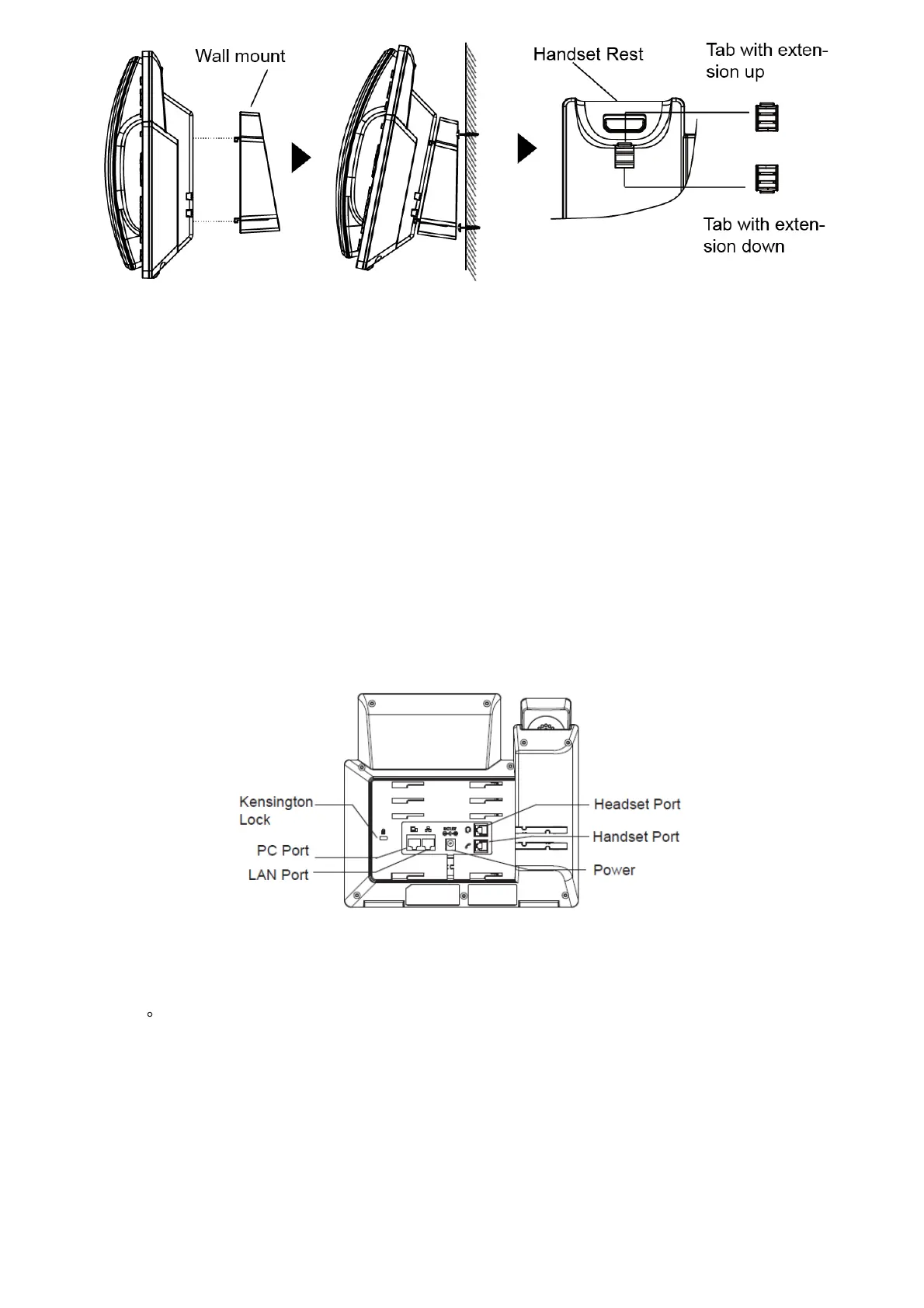

Figure 3: Tab on the Handset Cradle
Connecting the GRP261X/GRP2624/GRP263x/GRP2670/GRP2650
To set up the GRP261X/GRP2624/GRP263x/GRP2670/GRP2650, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the router) using the
Ethernet cable.
3. Connect the PSU output plug to the power jack on the phone; plug the power adapter into an electrical outlet. If a PoE
switch is used in step 2, this step could be skipped.
4. The LCD will display provisioning or firmware upgrade information. Before con tinuing, please wait for the date/time display
to show up.
5. Using the phone embedded web server or keypad configuration menu, you can further configure the phone using either a
static IP or DHCP.
Figure 4: GRP261X/GRP2624/GRP263x/GRP2670/GRP2650 Back / Side View
Configuration via Keypad
To configure the LCD menu using the phone’s keypad, follow the instructions below:
Note
For easy deployment, GRP2612W/GRP2614/GRP2615/GRP2616/GRP2624/GRP263x/GRP2670/GRP2650 out of the box is
preconfigured to connect to a default SSID named wp_master with a password (WPA/WPA2 PSK) equal to wp!987@dmin,
for this to work the following criteria needs to be met:
1. The IP phone should not be connected by a LAN cable.
2. No SIP account should be registered on the IP phone.
3. SSIDs from previous connections should not be saved on the IP phone, please factory reset the unit to confirm.
