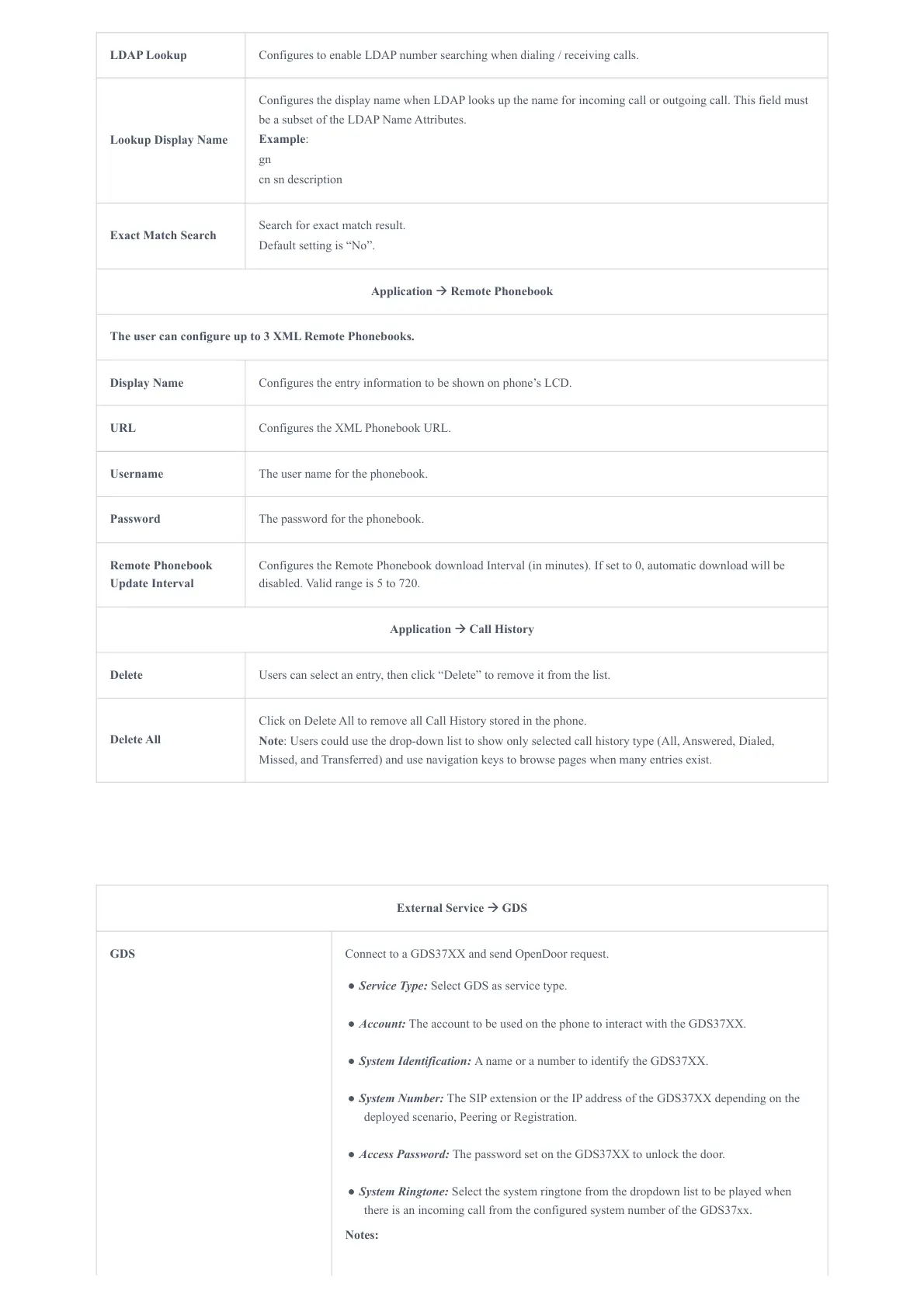

LDAP Lookup Configures to enable LDAP number searching when dialing / receiving calls.
Lookup Display Name
Configures the display name when LDAP looks up the name for incoming call or outgoing call. This field must
be a subset of the LDAP Name Attributes.
Example:
gn
cn sn description
Exact Match Search
Search for exact match result.
Default setting is “No”.
Application 🡪 Remote Phonebook
The user can configure up to 3 XML Remote Phonebooks.
Display Name Configures the entry information to be shown on phone’s LCD.
URL Configures the XML Phonebook URL.
Username The user name for the phonebook.
Password The password for the phonebook.
Remote Phonebook
Update Interval
Configures the Remote Phonebook download Interval (in minutes). If set to 0, automatic download will be
disabled. Valid range is 5 to 720.
Application 🡪 Call History
Delete Users can select an entry, then click “Delete” to remove it from the list.
Delete All
Click on Delete All to remove all Call History stored in the phone.
Note: Users could use the drop-down list to show only selected call history type (All, Answered, Dialed,
Missed, and Transferred) and use navigation keys to browse pages when many entries exist.
External Service 🡪 GDS
GDS Connect to a GDS37XX and send OpenDoor request.
● Service Type: Select GDS as service type.
● Account: The account to be used on the phone to interact with the GDS37XX.
● System Identification: A name or a number to identify the GDS37XX.
● System Number: The SIP extension or the IP address of the GDS37XX depending on the
deployed scenario, Peering or Registration.
● Access Password: The password set on the GDS37XX to unlock the door.
● System Ringtone: Select the system ringtone from the dropdown list to be played when
there is an incoming call from the configured system number of the GDS37xx.
Notes:
