CONNECT YOUR GXW4024
Connecting your GXW4024 is easy. Before you begin, please verify the contents of the GXW4024
package.
EQUIPMENT PACKAGING
Unpack and check all accessories. Equipment includes:
• one device unit
• one Ethernet cable
• one 12V universal power adapter
CONNECT THE GXW4024
Managing the GXW and connecting the unit to the VoIP network is very simple. Follow these three (3)
steps to connect your GXW to the Internet and access the unit’s configuration pages.
1. Connect standard touch-tone analog phones to ANY of the FXS ports.
2. Insert the Ethernet cable into the LAN port and connect the other end of the Ethernet cable to an
uplink port (a switch, router or a modem, etc.)
3. Insert the power adapter into the GXW4024 and connect it to a wall outlet.
Follow instructions from topic “Configuring GXW4024 with Web Browser
” for initial configuration. The GUI
pages will guide you through the remaining steps to set-up your gateway. Examples of the GUI
Interfaces can be downloaded from: http://www.grandstream.com/user_manuals/GUI/GUI_GXW4024.rar
.

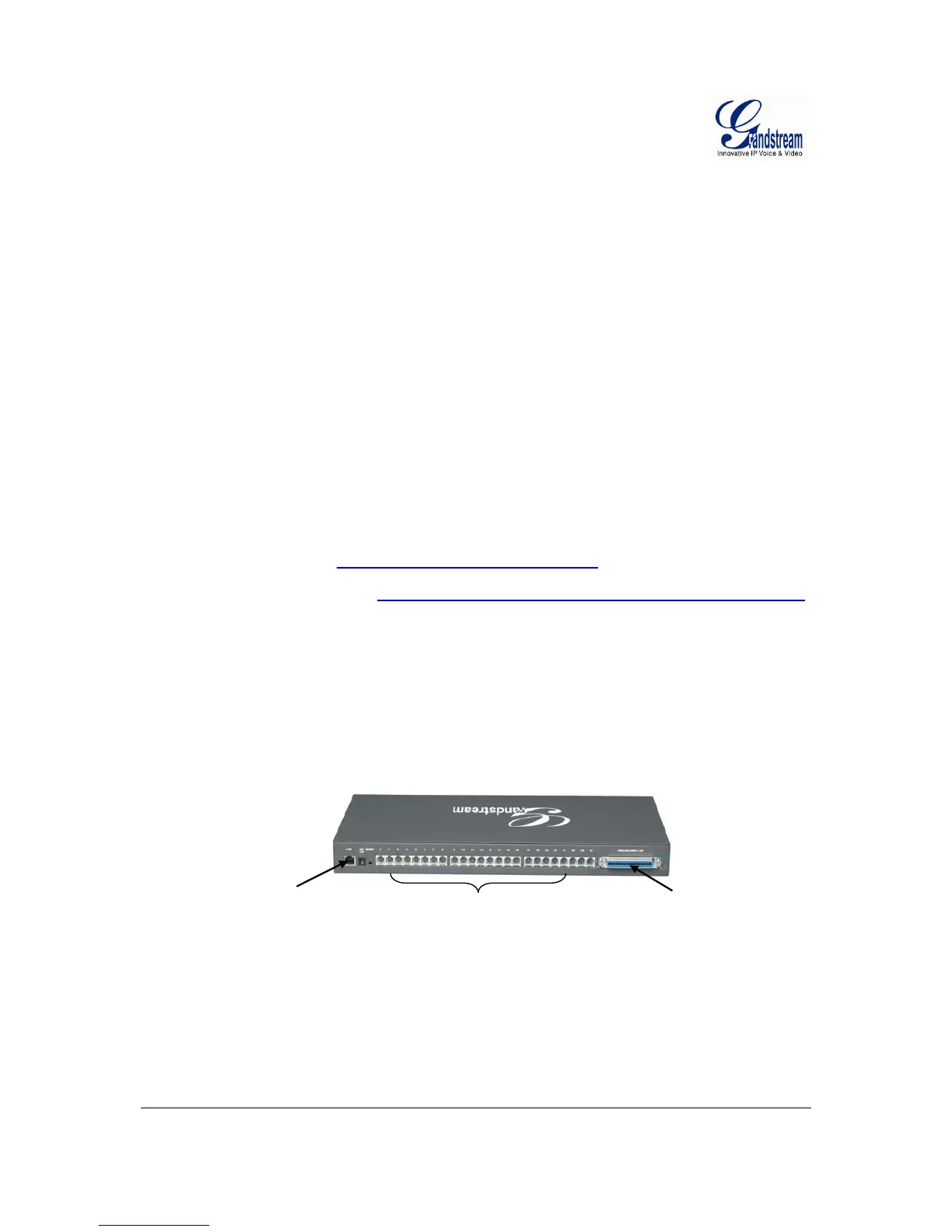

FIGURE 1: Diagram of GXW4024 Back Panel
LAN Port
GXW 4024
50 PIN Telco
Connector
FXS
Ports
