Table 1: Definitions of the GXW Connectors
Connect the LAN port with an Ethernet cable to your PC.
Connect to the internal LAN network or router.
Factory Reset button. Press for 7 seconds to reset factory default settings.
Console connection for a PC.
When the unit loses power or unit became unregistered, FXS port 1 will be able to
make/receive calls from the PSTN line connected to this port.
FXS port to be connected to analog phones / fax machines.
Note: Once the GXW400X is turned on and configured, the front display panel indicates the status of the
unit.

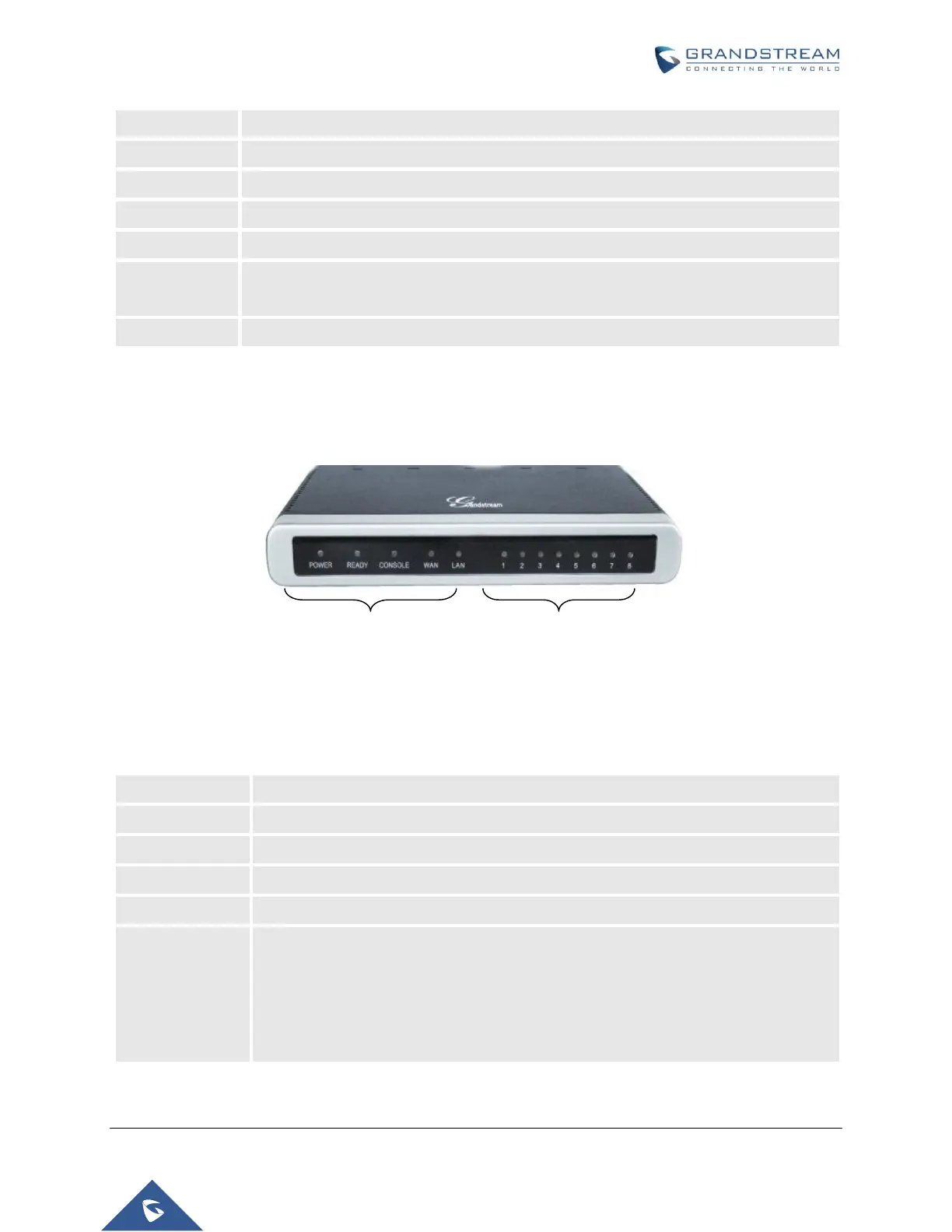

Figure 2: Diagram of GXW4004-8 display panel
Table 2: Definitions of the GXW display panel
Indicates Power. Remains ON when Power is connected and turned ON.
Remains ON after boot-up.
Turns ON when Console port is being used.
Indicates LAN (or WAN) port activity
Indicates PC (or LAN) port activity
Indicate status of the respective FXS Ports on the back panel
Unregistered – OFF
Registered and Available – ON (Solid Green)
Off-Hook / Busy – Blinking every second
Slow blinking FXS LEDs indicates voicemail
NOTE: All LEDs display green when ON
