Page 28 Section 8: Electrical

LN E

240 V

50 HZ

Pipe

Thermostat

(if fitted)

Wiring Centre

45 67 8910

Cylinder

Stat

Room Stat

Pump

(if fitted outside boiler)

2-port

Zone Valve

Motor

HTG

2-port

Zone Valve

Motor

DHW

Grey

Blue Blue

Brown

Green/Yellow

Orange

Grey

1 23456

LLNE

78910

EENNLL

Boiler

Terminal Blocks

Grant 2-Channel

Wall Mounted Programmer

(Ref. ESKIT)

OFF

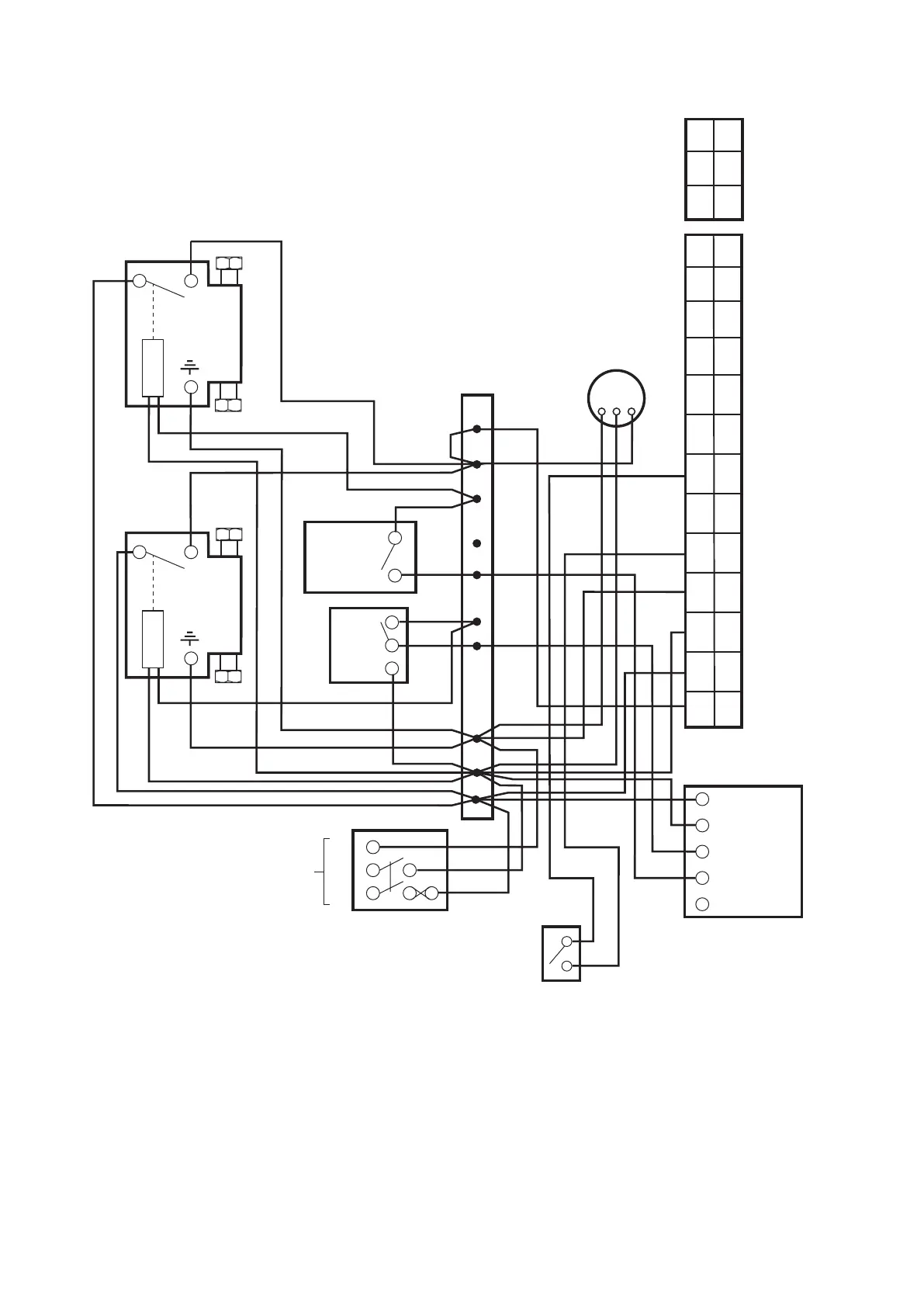

Figure 8-1: Vortex Pro External Module with S-plan type control system wiring diagram

8.4 CONTROL SYSTEM WIRING DIAGRAMS
