Grant Vortex Pro User Manual

Page 33
Outdoor
module
vertical/high
level flue
options
Components for Outdoor ue system
Vertical terminal
45 elbow
O
High level 90° terminal
Wall bracket
Extended wall bracket
Starter elbow
Starter - straight
Straight terminal
Locking band
Extensions
950 mm
450 mm
195 to 270 mm
250 mm
150 mm
Vertical
terminal
45° elbows
High level
90° terminal
Extensions
45° elbow
Starter elbow
Maximum vertical
length 19 metres
Green System Components
Item - for models up to 26kW output Part No. Item - for models up to 70kW output Part No.
External starter elbow GKM90 External starter elbow GKM200
External starter - straight GKM90C External starter - straight GKM200C
150mm extension GX150/90 150mm extension GX150/200
250mm extension GX250/90 250mm extension GX250/200
450mm extension GX450/90 450mm extension GX450/200
950mm extension GX950/90 950mm extension GX950/200
195-270mm adjustable extension GXA250/90 195-270mm adjustable extension GXA250/200
45 elbow GE45/90 45 elbow GE45/200
High level terminal GTH90 High level terminal GTH200
Vertical terminal GTV90 Vertical terminal GTV200
Wall bracket - standard GWB90 Wall bracket - standard GWB200
Wall bracket - extended GEB90 Wall bracket - extended GEB200
Straight terminal - horizontal ue GTL90 Straight terminal - horizontal ue GTL200

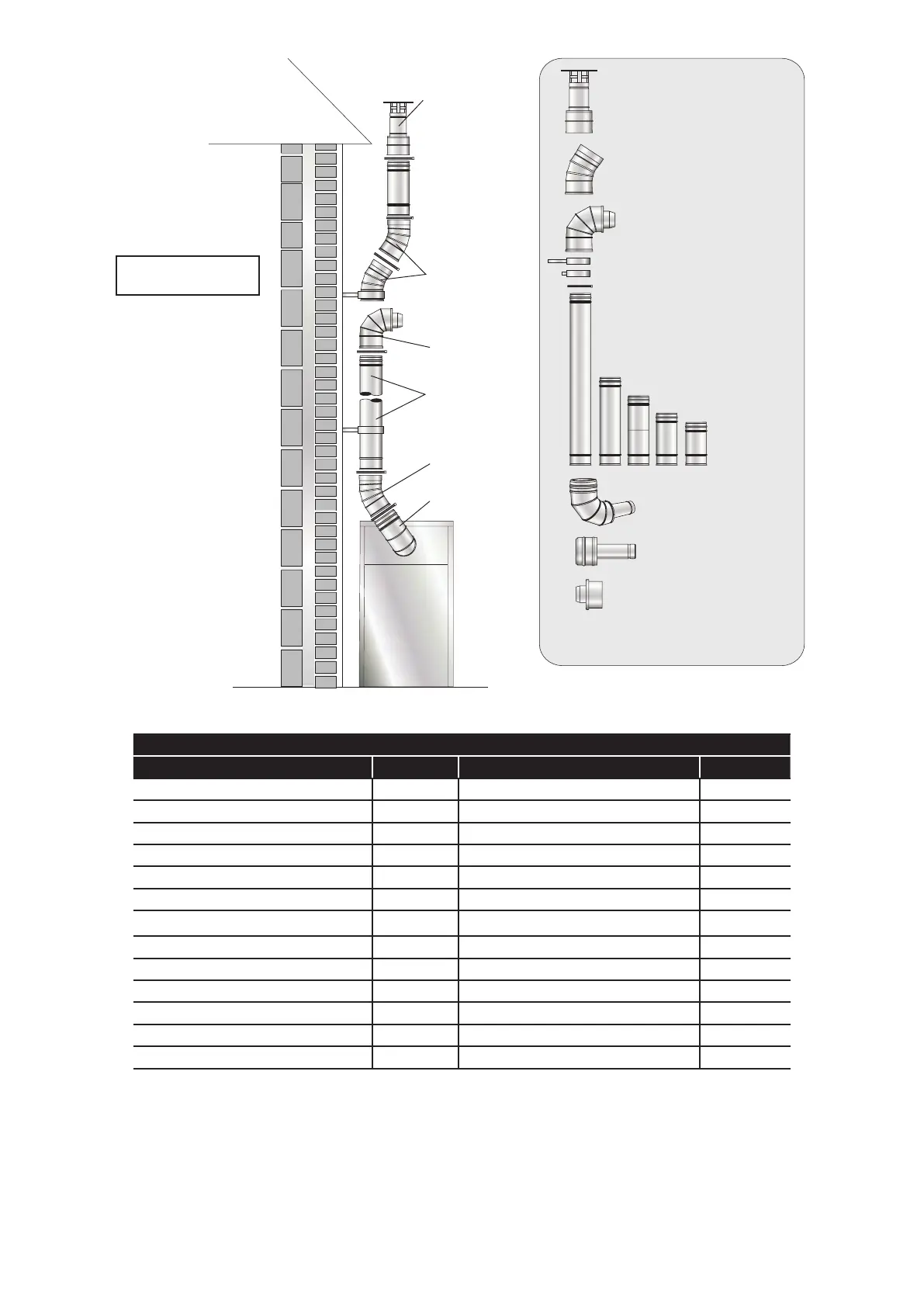

Figure 9-3: Vertical external conventional ue (Green system)
Table 9-2: Green system components - product codes
Section 9: Flue System and Air Supply
