Section 11: Servicing

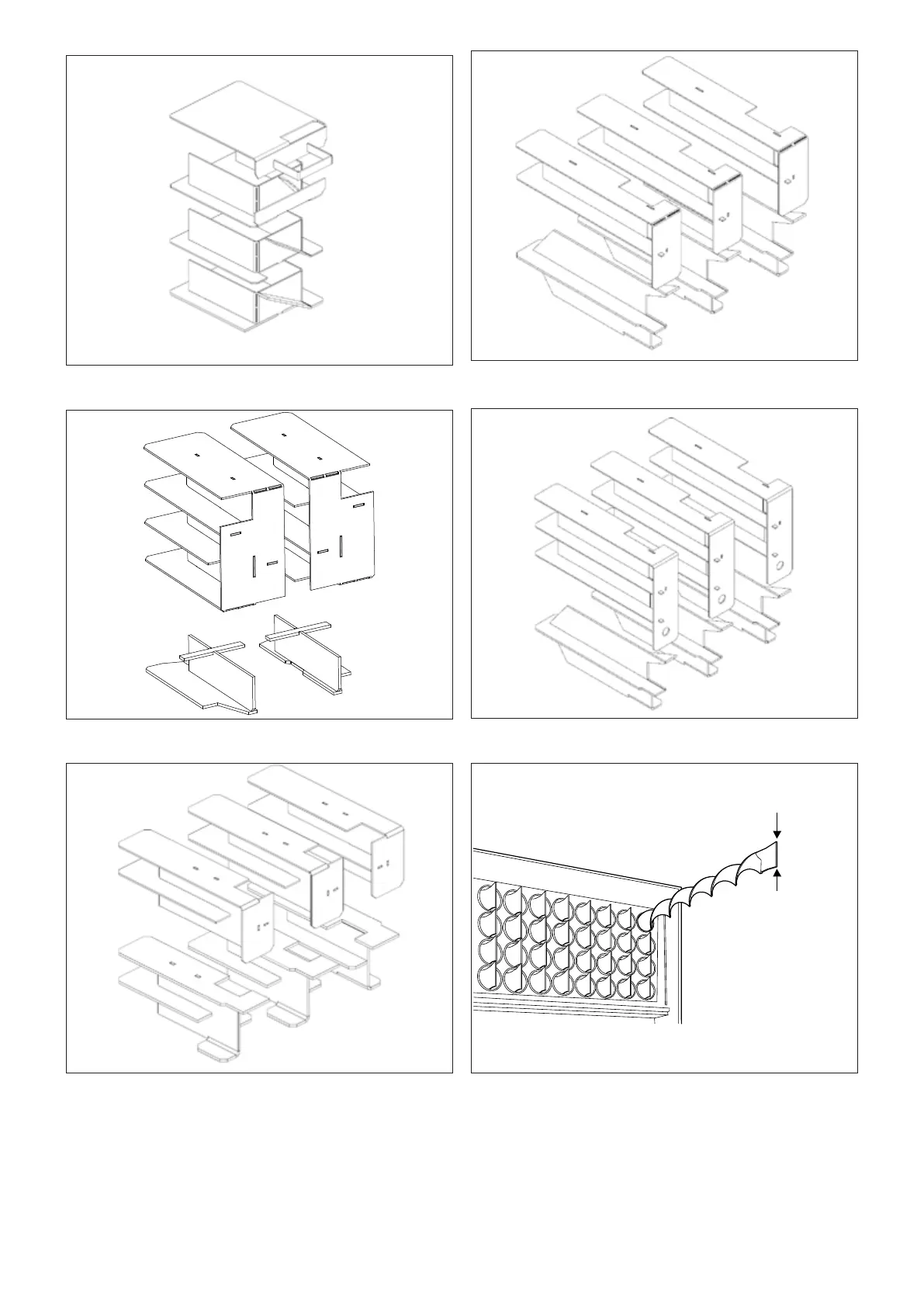

Figure 11-1: Ba󰀪es (15/21 model)
Figure 11-2: Ba󰀪es (15/26 model)
Figure 11-3: Ba󰀪es (26/36 and 36/46 models) Figure 11-6: Turbulators
IMPORTANT:
The ends of the
turbulators mus
t
be vertical
Position in vertical plane
Figure 11-5: Ba󰀪es (58/70 models)
Figure 11-4: Ba󰀪es (46/58 models)
