Page 48

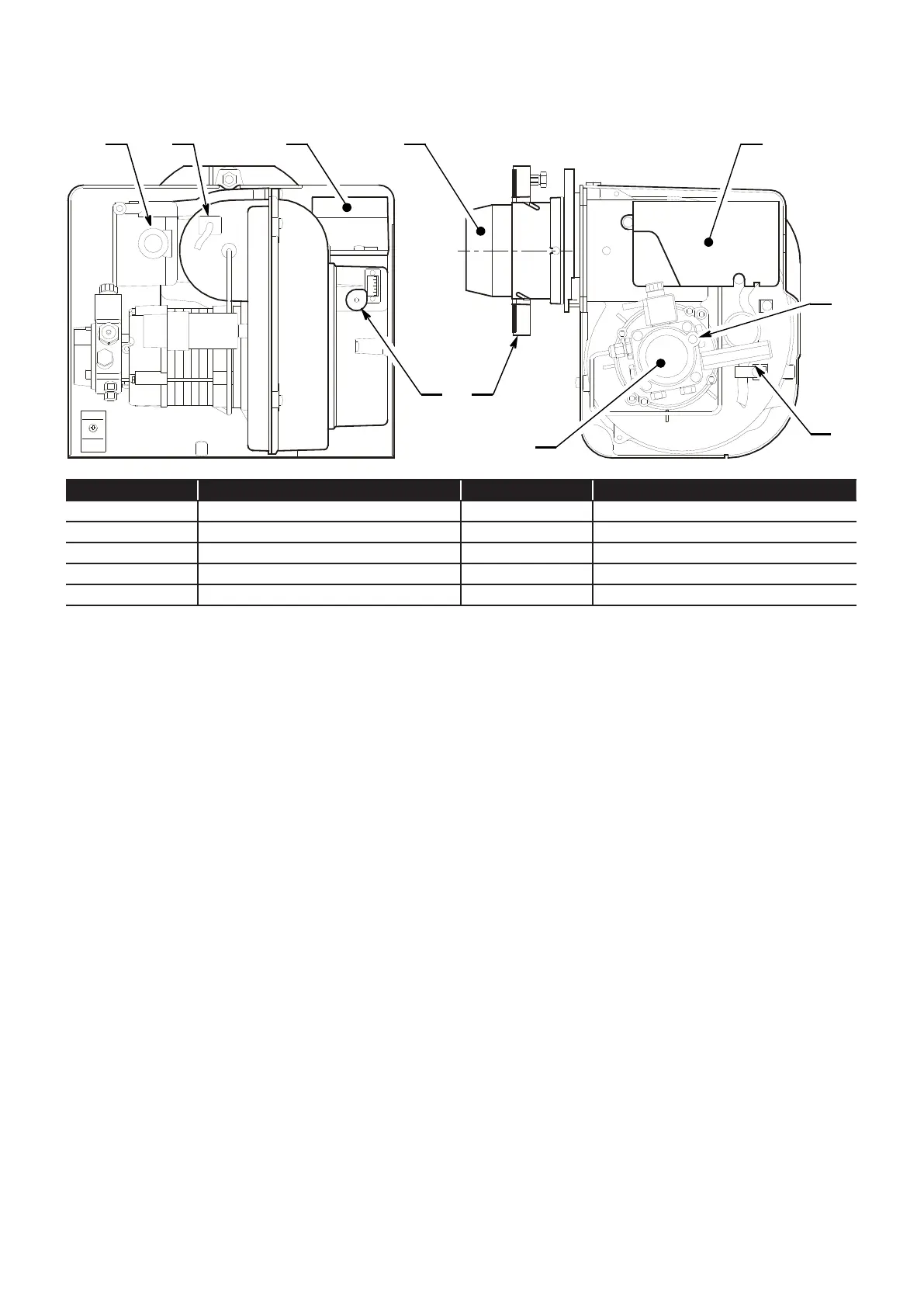

11.9.2 VORTEX PRO EXTERNAL 46/58 AND 58/70
(RIELLO RDB 3.2)
8
9
3
10
5
6
7
2
4
Item Description Item Description
1 Reset button with lockout lamp 6 Pump pressure adjustment screw
2 Photocell 7 Extension for gauge connection
3 Air inlet 8 Oil pump
4 Combustion head 9 Flange with insulating gasket
5 Control box 10 Air damper adjustment screw
